LX8000 version 0.96 April 2008
Page 28 of 85

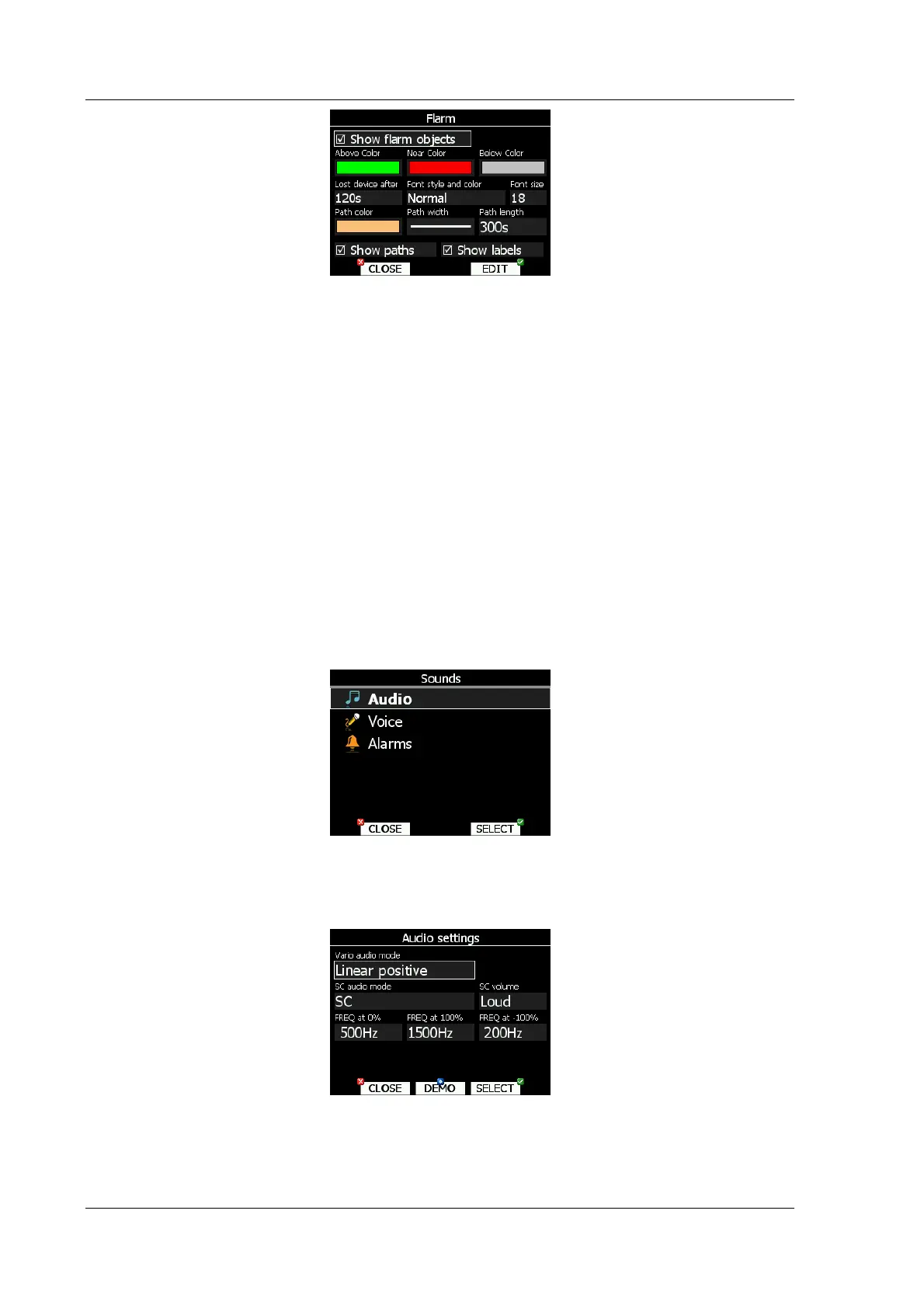

Checking show Flarm object will enable display of aircraft detected by FLARM.
Colors are designed to present three values. The color for aircraft more than 100 meters
above your current altitude is defined by the above color item. The color for aircraft more
than 100 meters below your current altitude is defined by the below color item. The color
for aircraft that are less than 100 meters below or above your current altitude is defined by
the near color item.
When a signal from a particular aircraft is lost, the aircraft remains blinking on screen for
duration defined in Lost device after item (default 120 seconds). After that time the
aircraft symbol will not be displayed.
Next to aircraft, aircraft altitude and vertical speed are displayed, if show labels item is
checked. User can modify size, font style and color. Select Font style and color item. Use
left-bottom knob to modify color and right-bottom knob to modify style.
It is possible to display flown path of tracked aircraft. Path color and Path width defines
width and color of paths. To enable paths check Show paths item.
5.1.7 Sounds
In Sound setup page, Audio settings for vario unit, voice settings for LX voice module and
alarms settings for vario unit can be modified.
5.1.7.1 Audio settings
Basically here we can setup two types of audio, audio sound for climb mode and another for
cruise mode (SC).
Vario audio mode has following options:
• Linear positive, sound is interrupted with a silence every few milliseconds when needle
is positive, on negative side sound is linear (not interrupted)
• Linear negative, invert function to Linear positive
