The vario indicator built into the LX 8000 vario unit is always Indicator 1
Each further indicator (available as option) has a DIP switch on the rear side that sets and
identifies the indicator and enables it to be programmed under that identification. The
positions of the switches are listed below.
SW 1 ON Indicator set1
SW 2 ON Indicator set2
SW 3 ON Indicator set3
All OFF Indicator set4
After identification, the needle and the two numerical displays of each indicator can be
programmed to display the following parameters:
All settings should be made for vario and speed command mode separately (e.g.: VAR
NEEDLE =needle in vario mode, SC NEEDLE = needle in SC mode).
Needle settings: Vario, SC, NETTO or RELATIVE = (netto – 0.7 m/s),
Upper numerical line: Integrator, time, flight time, task remaining time
Lower numerical line: Altitude (NN altitude), Distance (distance to the navigation point),
Glide diff. (final glide altitude difference), Speed (TAS), Leg speed (speed on leg), QNH (ft)
(NN altitude in ft), Flight levels.
5.1.13.3 Compass
When compass is connected to LX8000 it is crucial for it operation to make a calibration. See
chapter 9.2 for more detail about installation of compass and it calibration

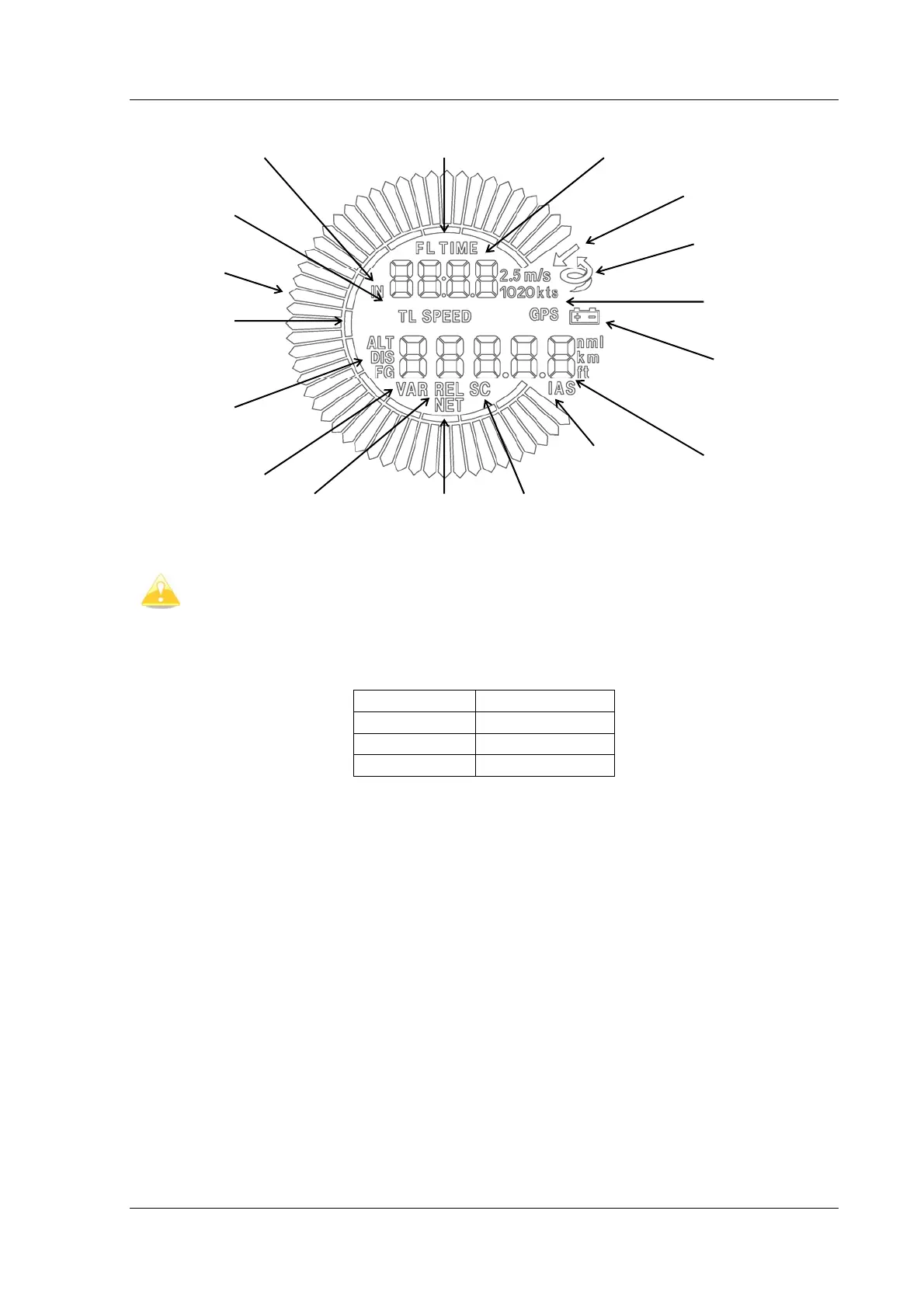

LOW
BATTERY
INDICATOR
GPS STATUS INDICATOR
OFF = NO GPS
BINKS = GPS BAD
LOWER NUMBER
DISPLAY
NEEDLE SHOWS
RELATIV
NEEDLE SHOWS
VARIO
NEEDLE SHOWS
NETTO
NEEDLE SHOWS
INDICATED AIR
SPEED (NOT
USED)
NEEDLE
SHOWS SPEED
COMMAND
NEEDLE
SPEED
COMMAND RING
SPEED COMMAND
VARIO MODE
LOWER NUMBER
SHOWS
TASK / LEG
SPEED
UPPER NUMBER
UPPER NUMBER SHOWS
UPPER NUMBER
SHOWS INTEGRATOR
LOWER NUMBER
SHOWS
ALTITUDE /
DISTANCE /
FINAL GLIDE
