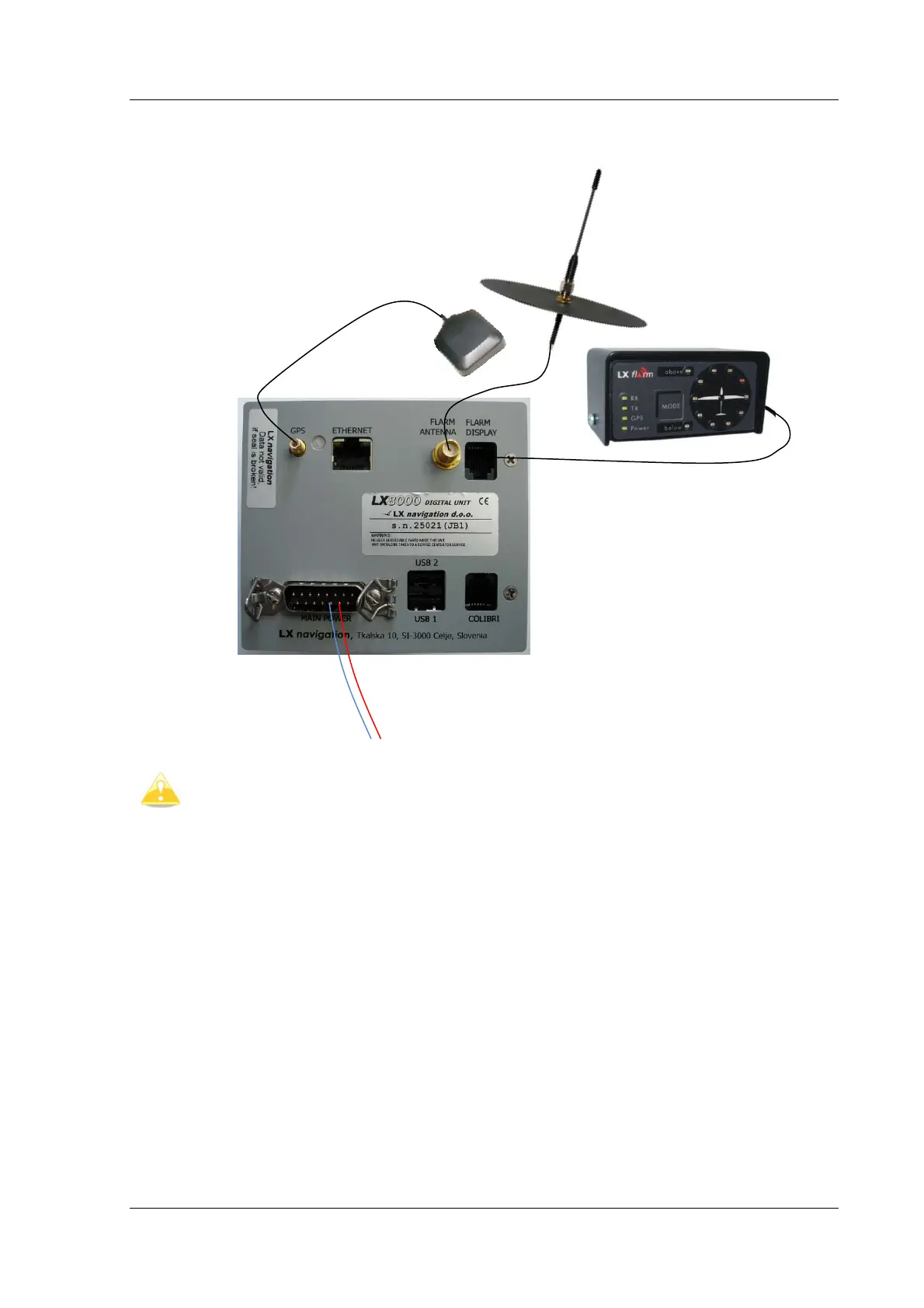

The antenna position must be as much as possible vertical. Use only original
antenna which is always delivered with the unit. Use original cable to connect
LX8000 and antenna. Never use antenna without original aluminum ground plane.
Having no space to install metal back plane, dipole variant of antenna is available.
The Flarm external display is a small unit and can be placed somewhere on the instrument
panel. To fix the device use self adhesive back side of the device. If a position on the top of
the instrument panel will be chosen, LX navigation offers a suitable box.
9.1.3 Functional check after installation
After LX8000 has been switched on the Flarm External Indicator will receive power and will
pass initial routine which will take several seconds.
Description of LED statuses:
1. Power red flashing, no data from Flarm
2. Power green Flarm data received
3. GPS red GPS BAD, GPS green GPS OK/3D
4. Tx green flashing, data sent
5. Rx green , minimum one glider in range
6. Green circular , indication of near gliders
7. Red circular flashing, collision warning
8. Above below green by near
