LX8000 version 0.96 April 2008
Page 57 of 85
Total task distance, task description and task points are shown for each task stored. Select
desired task rotating bottom-right knob and press LOAD. Task will be loaded into active task
and task edit dialog will be opened.
It is also possible to DELETE tasks from active waypoint file. Press DELETE button to delete
selected task.

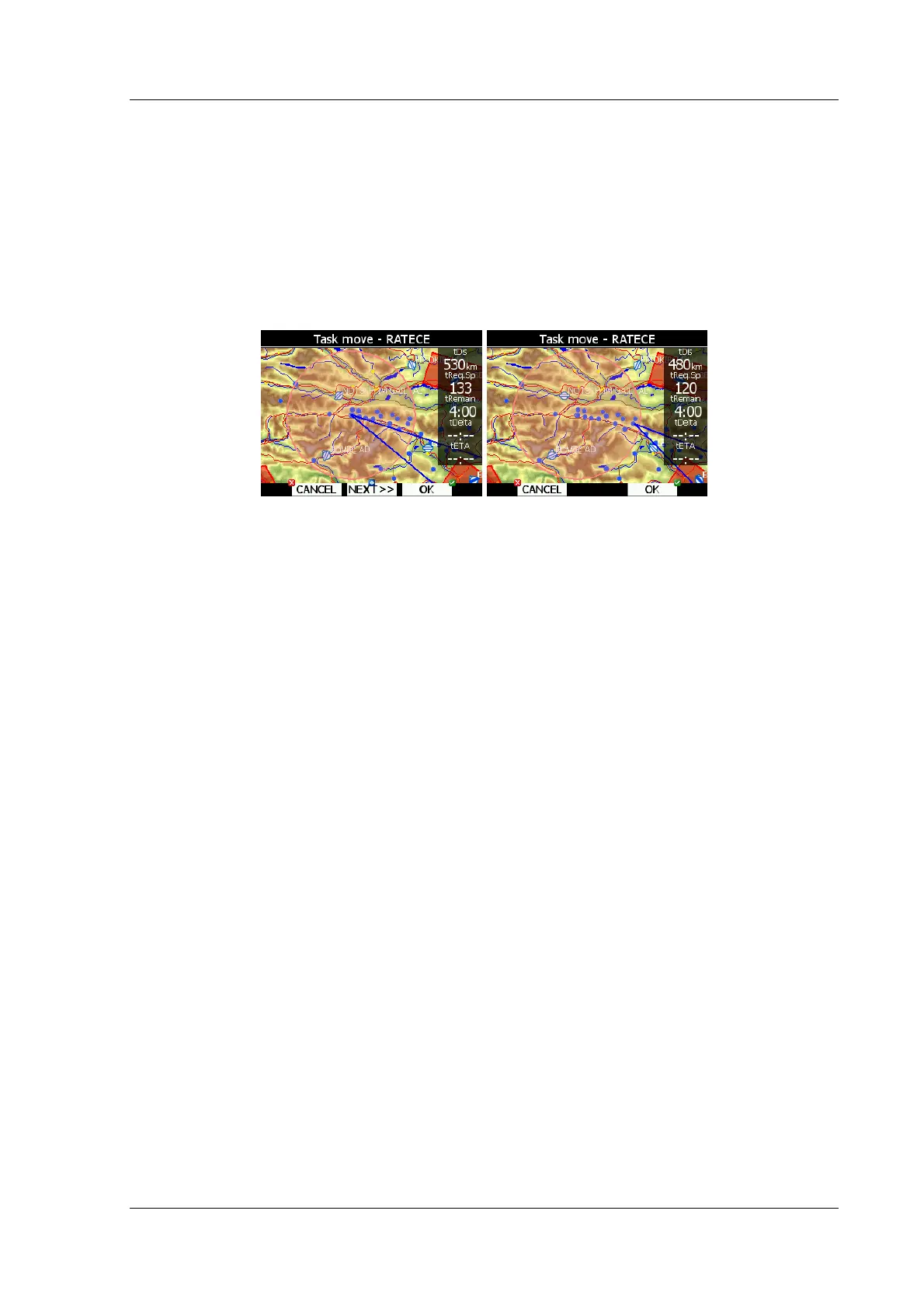

5.7.7 Moving task point
If at least one observation zone is defined as an assigned area, it is possible to move point
within this area. Moving point will increase or decrease total task length. Select MOVE action
in task mode. A dialog with current assigned area will be shown.
In upper right corner remaining task distance is shown, required task speed, remaining task
time, delta time and estimated time of arrival.
Delta time is difference between remaining time and time of arrival. If it is negative, you will
arrive back to home too soon and if it is positive, you will arrive too late.
Keep in mind time of arrival can be calculated using different methods, which are found in
QNH, RES setup (See chapter 5.1.1).
Point is moved using bottom two knobs. Rotate right knob (page selector) to move point in
radial direction from area center.
Use bottom-left knob (zoom) to move point in axial direction.
If more then one assigned area is set for task, NEXT>> button is shown in bottom line.
Press this button, if you would like to move point in other assigned area.
