LX8000 version 0.96 April 2008
Page 74 of 85
In conjunction with LX 8000 use exclusively 19200 bps
If two units work in parallel (double seater) one unit must be PIC and another PAX.

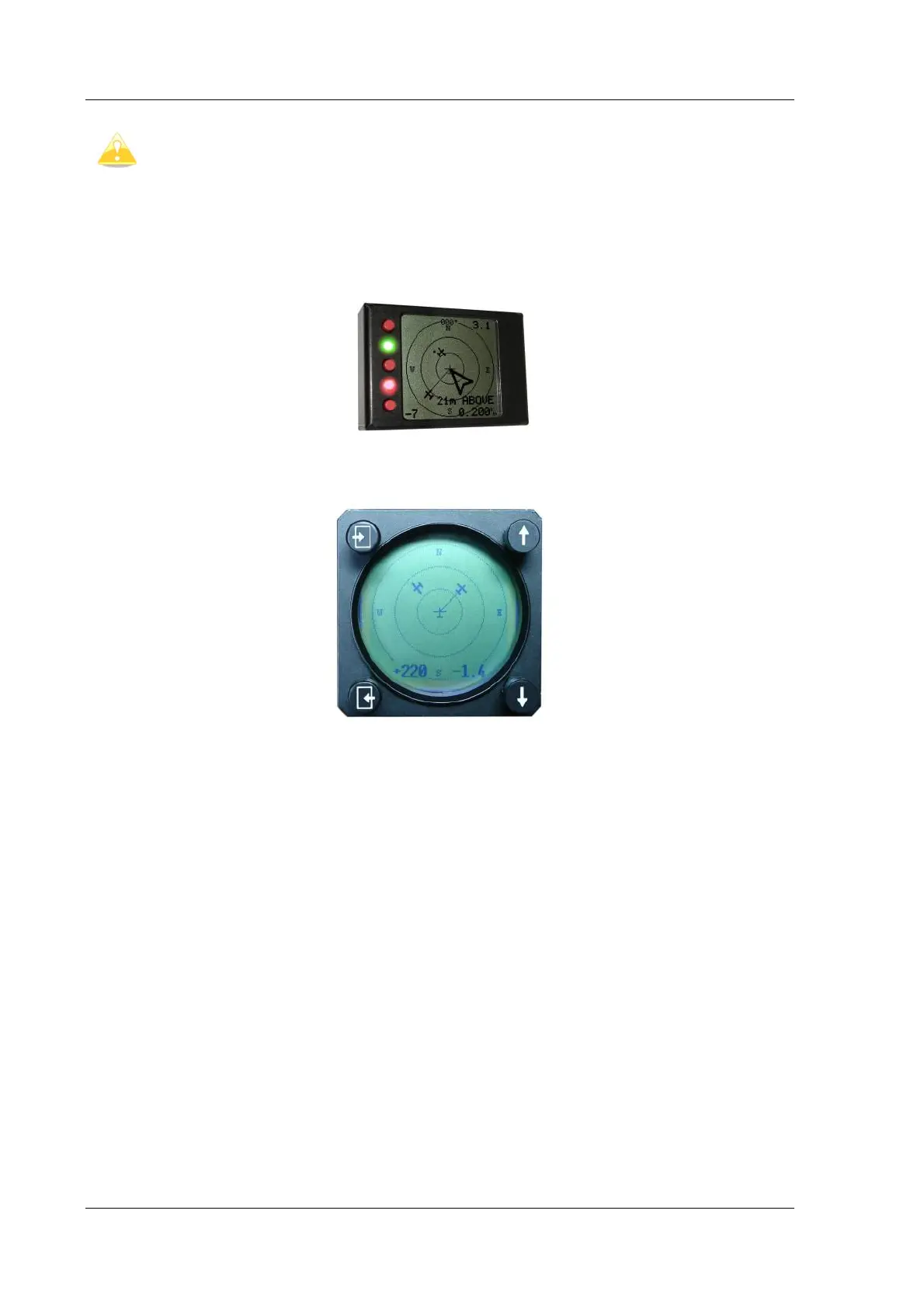

9.1.1.2 LX Flarm graphic display
This type of display is 100% compatible with LX8000 Flarm output and may be used instead
of LED version. See manual for details.
9.1.1.3 LX Flarm display 57 mm
This unit is standard 57mm unit and replaces LED version also.
9.1.2 Installation
The position of the radio communication antenna is extremely important, bad installation will
reduce the system range dramatically. It is highly recommended to install the antenna on
the top of the instrument panel, a suitable aluminum round plate having a diameter about
12cm is used as a back plane and approximately 10 cm long rubber antenna is used as
radiator. The metal plate may be mounted outside or inside of the instrument panel. If
carbon is used, use only top mounting variant.
