LX8000 version 0.96
April 2008
Page 40 of 85
5.1.15

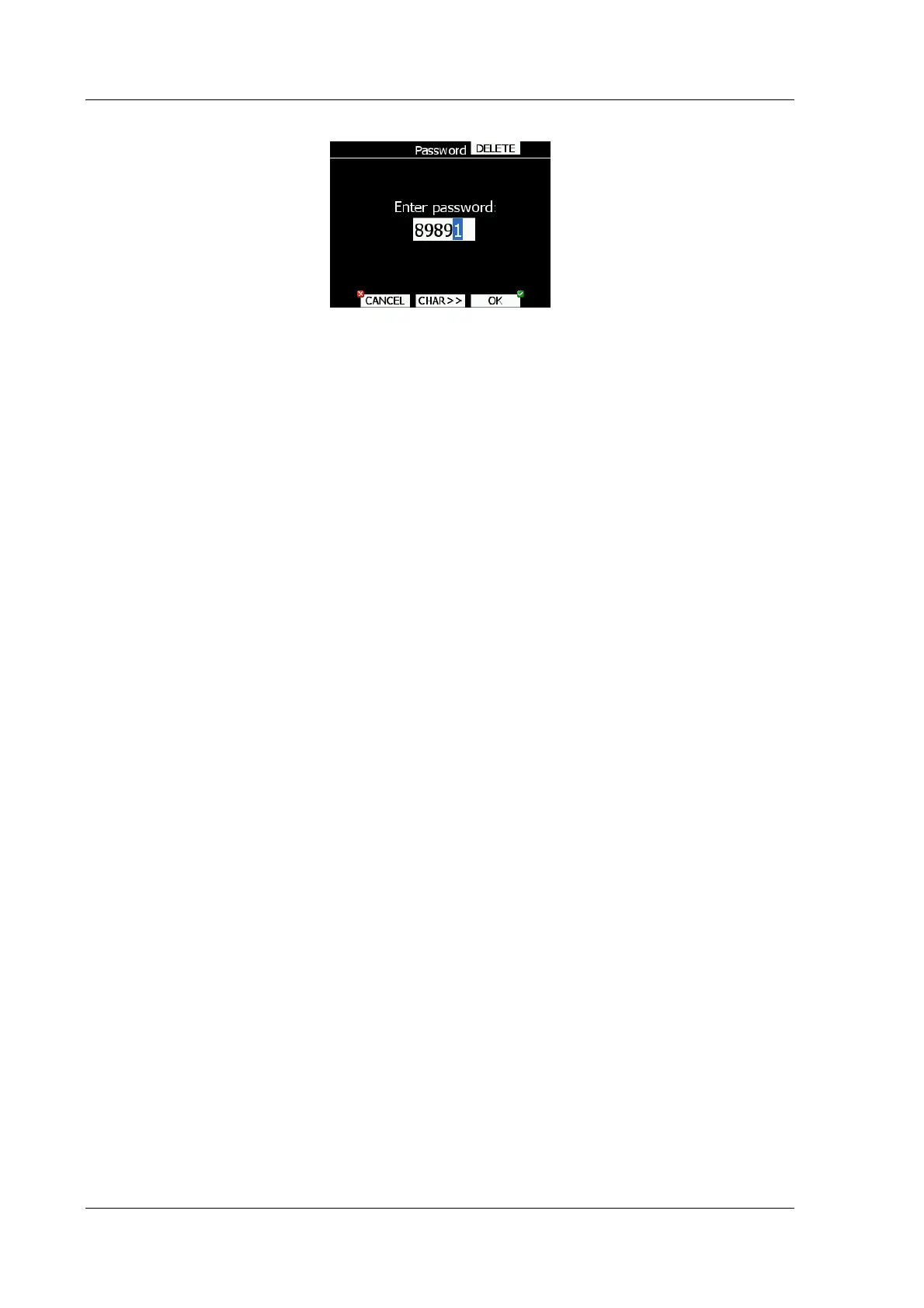

Password
There are several passwords which run some
specific procedures as listed below.
•
01049
will perform “Auto zero”
will set
vario to and speed to zero.
•
55556
will enable Condor simulator input via PC port
•
55557
will enable Condor simulator input via IGC port
•
89891
code is used to initiate
firmware update proced
ure
•
99999
will erase all flights stored on LX8000.
39
41
Table of Contents
Default Chapter
3
Table of Contents
3
1 Important Notices
7
Limited Warranty
7
2 Packing Lists
8
LX8000 with Flarm Option
8
LX8000 Without Flarm Option
8
3 Basics
9
LX8000 at a Glance
9
Display Unit Features
9
Vario Unit Features
10
Interfaces
10
Options
10
Internal Options
10
External Options
10
Technical Data
11
Weight
11
4 System Description
12
Rotary Switches and Buttons
12
Buttons
12
Power Button
12
Rotary Knobs
12
Switching on the Unit
13
User Input
13
Text Edit Control
14
Masked Text Edit Control
14
Spin Control
14
Selection Control
15
Checkbox and Checkbox List
15
Color Selector
15
Switching off
16
5 Operating Modes
17
Setup Mode
18
QNH and RES
18
Qnh
18
Safety Altitude
18
Magnetic Variation
18
ETA/ETE Calculation Based on
18
Soaring Start
19
Flight Recorder
19
Vario Parameters
20
Display
20
Files and Transfers
21
Uploading User Airspace and Waypoints
21
Uploading LX Navigation Airspace and Airports Database
21
Managing Airspace
22
Managing Waypoints
23
Managing Airports
23
Managing Flights
23
Formatting SD Card
23
Graphics
24
Terrain and Map
24
Airspace
25
Waypoints
25
Glider and Track
26
Optimization
26
Task
27
Flarm
27
Sounds
28
Audio Settings
28
Voice
29
Alarms
29
Observation Zones
30
Optimization
31
Warnings
31
Airspace Warnings
32
Altitude Warning
32
Flarm Warnings
33
Units
33
Profiles and Pilots
33
Hardware
34
Vario Settings
34
Indicator 1 - Indicator 4
36
Compass
37
Flarm
38
NMEA Output
38
Polar and Glider
39
Password
40
Information Mode
41
Near Mode
41
Statistics Mode
42
Logbook
42
Statistics During Flight
42
Airport Mode
43
First Navigation Page
43
Final Glide Symbol
43
Thermal Assistant
44
Second Navigation Page
44
Third Navigation Page
45
Fourth Navigation Page
45
Button Actions
45
Select an Airport
46
Maccready, Ballast and Bugs Setting
47
Map Settings
47
Wind
48
Airspace
49
Rotate FAI Area
49
Waypoint Mode
50
Editing Waypoint
50
New Waypoint
50
Task Mode
52
Task Edit
53
Creating Task
54
Modifying Zones
55
Task Options
56
Saving Task
56
Loading Task
56
Moving Task Point
57
6 Variometer and Altimeter
58
Smart Vario Description
58
Altimeter
59
IGC Barogram Recalibration Procedure
59
Speed Command
59
Final Glide Calculation
59
7 Flying with LX8000
60
On the Ground
60
Power on Procedure
60
Profile Selection
60
Set Elevation and QNH
60
Preflight Check
61
Preparing a Task
61
Assigned Area Tasks (AAT)
62
Performing the Flight
64
Starting a Task
64
Restarting Task
64
Over Turnpoint
65
Entering Assigned Area
65
Moving Point Inside Assigned Area
65
Task Finish
65
Procedure after Landing
66
8 Installation
67
Mounting LX8000
68
Installation of Options
68
Ports and Wiring
70
9 Options
72
Flarm Option
72
Configuration
72
Flarm External LED Display
72
LX Flarm Graphic Display
74
LX Flarm Display 57 MM
74
Installation
74
Functional Check after Installation
75
Error Messages
76
Flarm Traffic Information on Moving Map
76
Flarm Update Procedure
76
Uploading Obstacles
77
Compass Module
79
General
79
Installation of the Compass Module
80
Where to Install
80
First Test after Installation
80
Adjusting the Compass Module
81
Final Check
82
Input of Local Magnetic Variation
82
LX 8000 Remote Control
82
Stick Handle with Keys
83
Secondary Vario Indicators
83
10 Revision History
84
