Operating elements for driving
3.2 Short description of the operating elements
3 - 36 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
Switches and
buttons

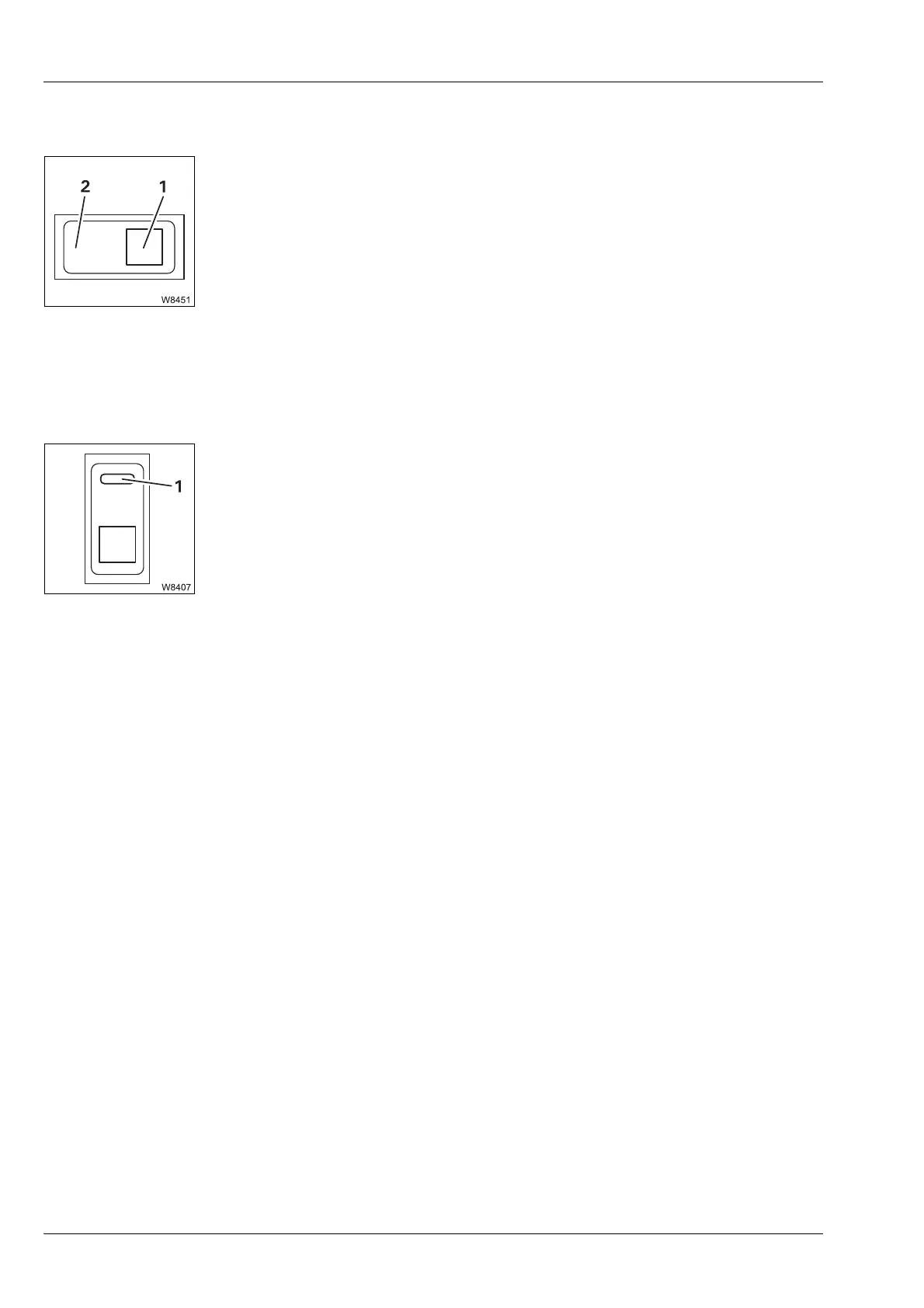

For switches and buttons, the terms down and up are used.
Regardless of the fitting position (vertical, horizontal, diagonal, perpendicular
or turned), the following always applies:
3.2.2 General notes on the operating elements
Some switches have a lock button (1). The lock button is not mentioned
again during operation. The following applies to all switches with a lock
button:
– Down: If (1) press – next to the symbol
–Up: If (2) press – opposite the symbol
– To switch on: – first press the lock button
– then press the lower switch down
– To switch off: Press upper switch down until the lock button latches
into place
