Operating elements for driving
3.1 Overview of the operating elements
Operating Manual GMK6300L 3 112 xxx en 3 - 1
xx.xx.xxxx
3 Operating elements for driving
All operating elements for crane operation are described in Chapter 9.
3.1 Overview of the operating elements
This section shows the position and designation of the operating elements
for driving. This also includes display elements such as lights or displays.
H
Operating elements available only with additional equipment are desig-
nated accordingly. These designations are made in this section only and
are not repeated in the following sections.

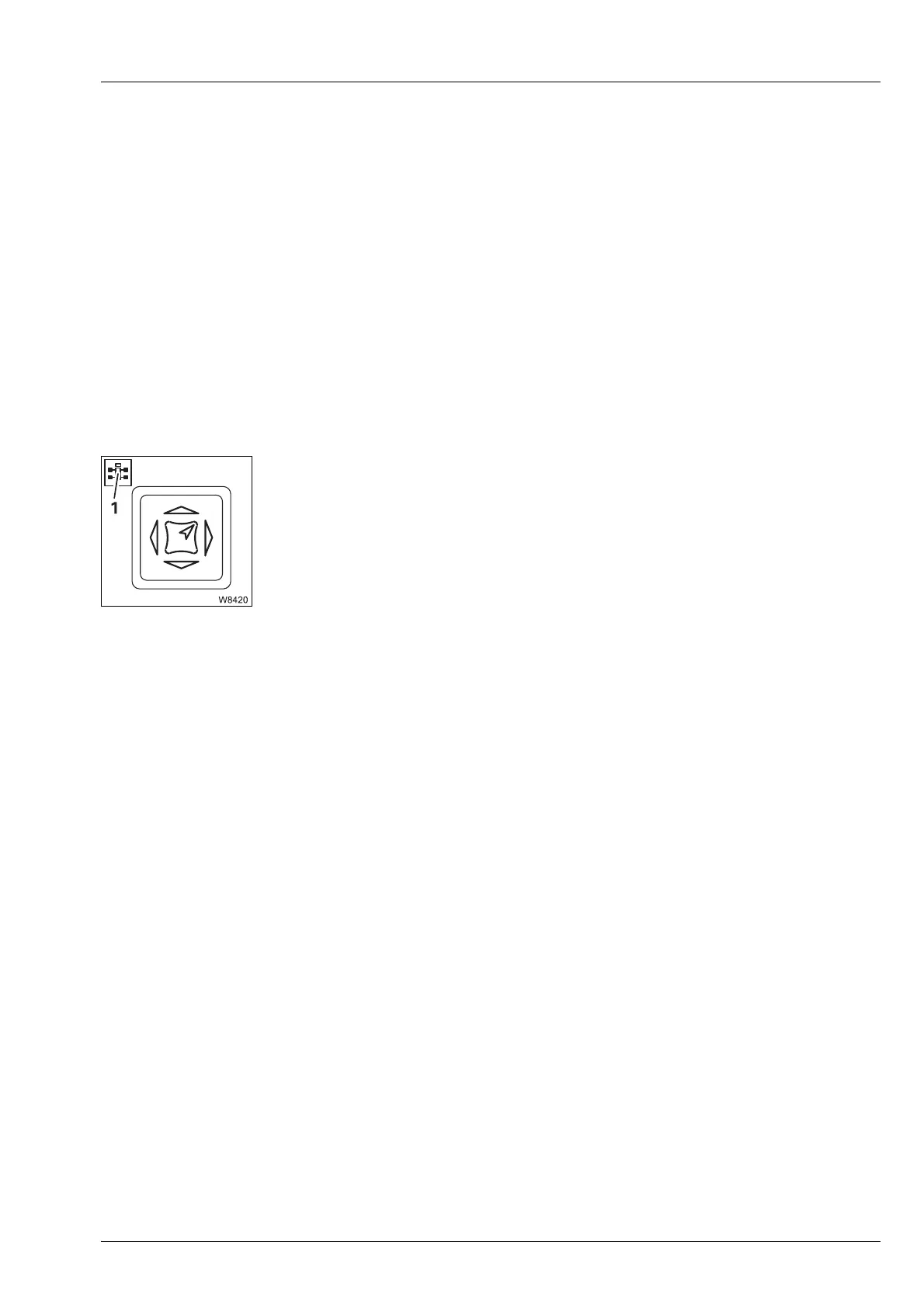

Some figures show details from a different perspective than the general
overview. The perspective is indicated in these figures by the symbol (1).
