Driving modes
6.5 Installing/removing outrigger beams
Operating Manual GMK6300L 3 112 xxx en 6 - 53
xx.xx.xxxx
6.5.4 Removing/attaching outrigger pads
You only need remove the outrigger pads if the outrigger beams are to be
transported lying on their side.
For transportation in a suitable holding frame, the outrigger beams can be
set down on the outrigger pad.
Removing
outrigger pads
Handling is easier if you remove the outrigger pad before removing the
outrigger beams.

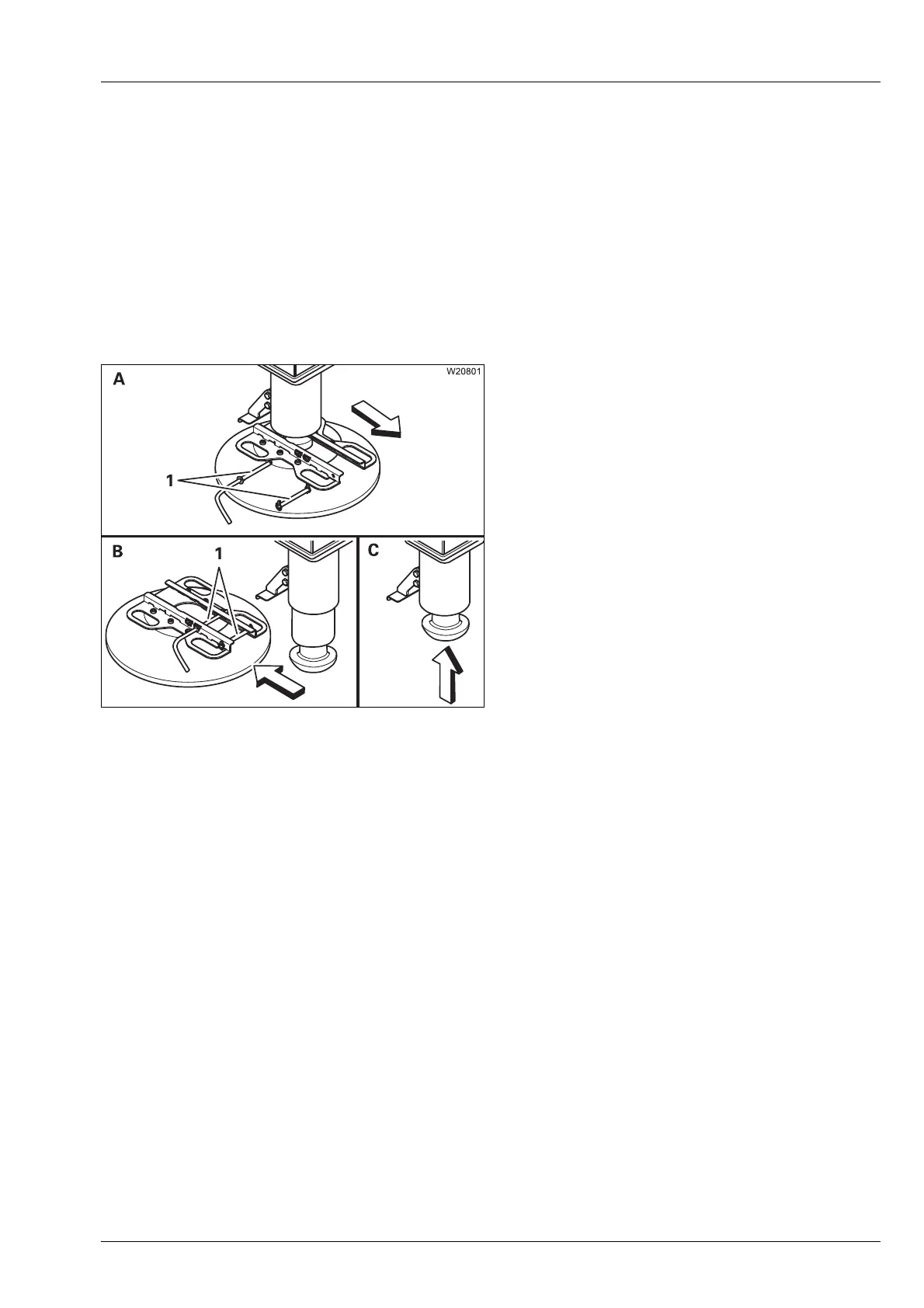

• (A) – Move the outrigger pad into the
operating position.
• Remove the pins (1).
• Extend the outrigger cylinder until the out-
rigger pad just touches the ground but is not
yet under strain.
• (B) – Pull the outrigger pad off the outrigger
cylinder.
• Insert the pins (1) and secure them.
• (C) – Fully retract the outrigger cylinder.
• Remove the other outrigger pads in the
same way.
