Rigging work
12.7 Rigging/unrigging the counterweight
Operating Manual GMK6300L 3 112 xxx en 12 - 75
xx.xx.xxxx

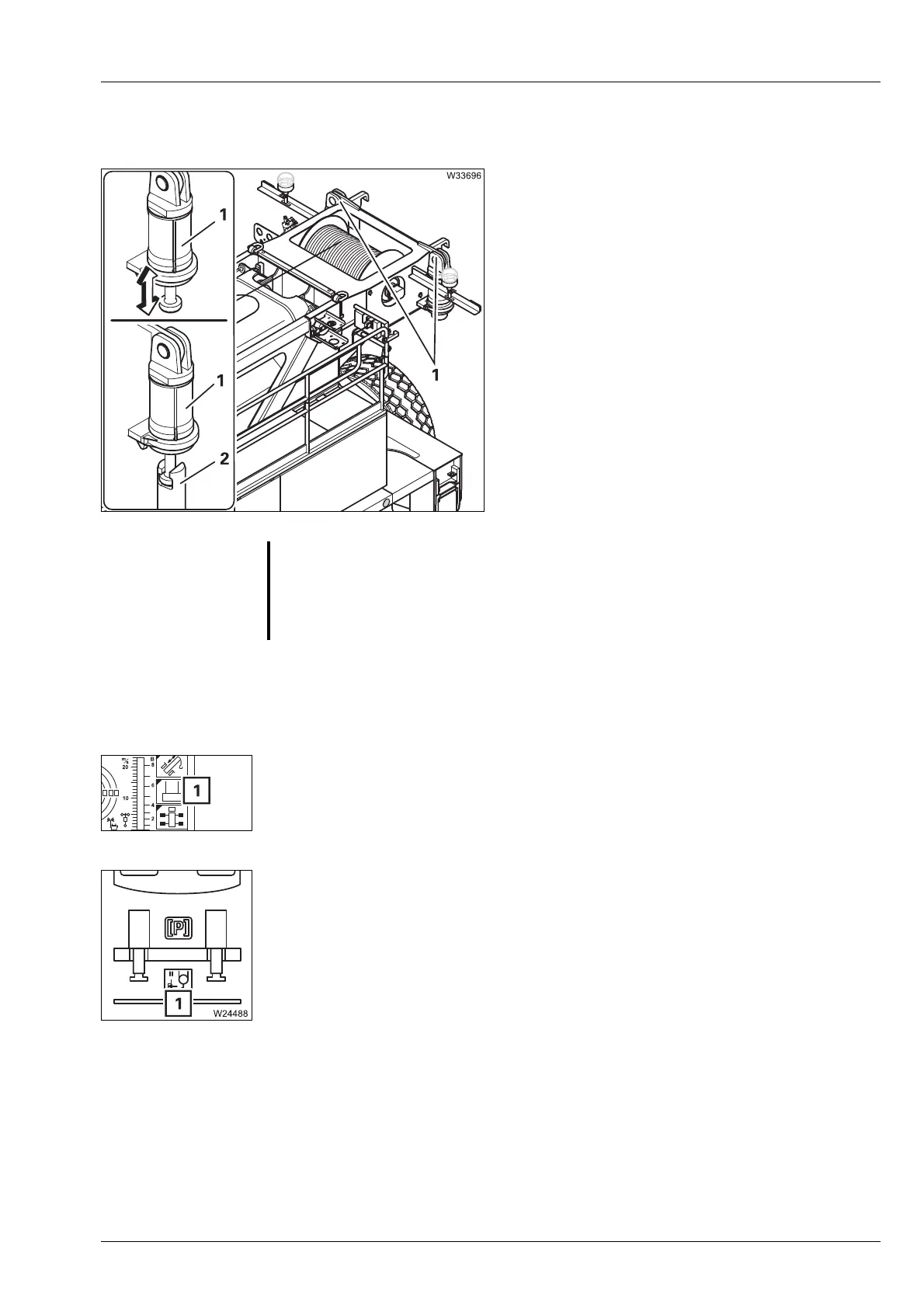

12.7.7 Counterweight hoist unit
The lifting cylinders (1) can be extended and
retracted.
To lift and lower the counterweight, the lifting
cylinders are screwed into the 7.0 t base
plate (2).
Counterweight
submenu
To operate the counterweight hoist unit, you must open the
Counterweight
submenu.
Opening the submenu
• If necessary, open the main menu and press the button (1) once.
If the symbol (1) appears, the functions of the submenu are disabled.
The functions of the submenu are not unblocked until the symbol (1) has
gone out.
Refer to
à Malfunctions in the counterweight hoist unit, p. 14 - 23 for
assistance.
s
G
Risk of crushing when lifting and lowering the counterweight!
Make sure nobody is on the counterweight platform while the counter-
weight is being lifted or lowered.
