12.7 Rigging/unrigging the counterweight
Operating Manual GMK6300L 3 112 xxx en 12 - 53
xx.xx.xxxx
12.7 Rigging/unrigging the counterweight
Depending on the version, the GMK6300L can be equipped with a counter-
weight mass of 7.0 t (15,432 lbs) to 92.5 t (203,928 lbs).
12.7.1 Counterweight sections
There are various counterweight sections, depending on the truck crane's
version and additional equipment.
The counterweight combinations can be comprised of:
Version A In this version, the counterweight must be completely unrigged when
driving with axle loads of a maximum 12 t (26,455 lbs).

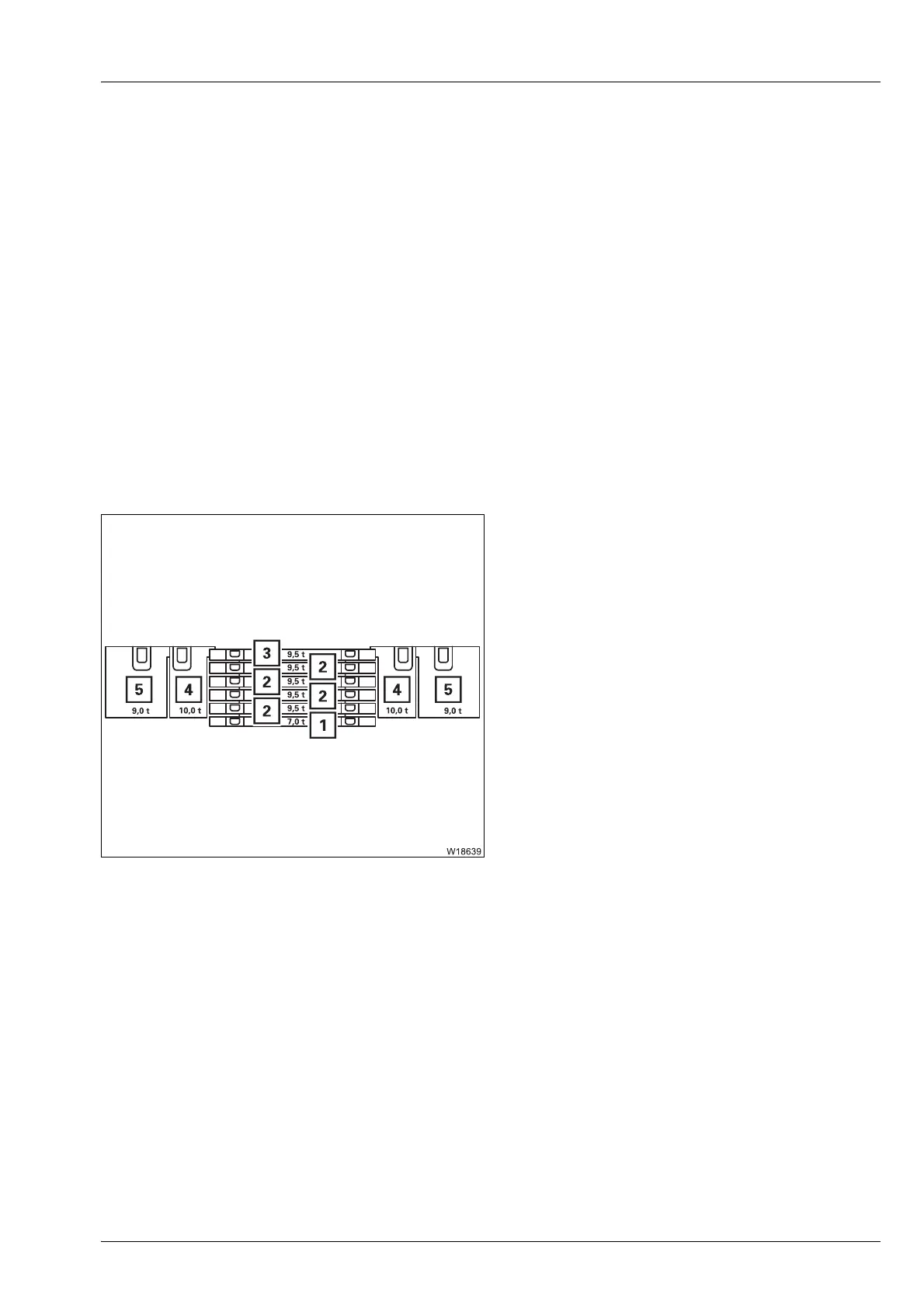

– one 7.0 t base plate (1)
– four 9.5 t counterweight sections (2)
– one 9.5 t counterweight section (3), with the
cutouts and recesses
The counterweight section (3) must always be
placed on top with the 54.5 t (120,152 lbs)
counterweight combination.
– two 10.0 t counterweight blocks
1)
(4)
– two 9.0 t counterweight blocks
1)
(5)
H
In counterweight combinations from 54.5 t (120,152 lbs), the counterweight
section (3) must always be on top.
s
1)
Additional equipment
