Driving modes
6.6 Installing/removing the supporting box
Operating Manual GMK6300L 3 112 xxx en 6 - 69
xx.xx.xxxx

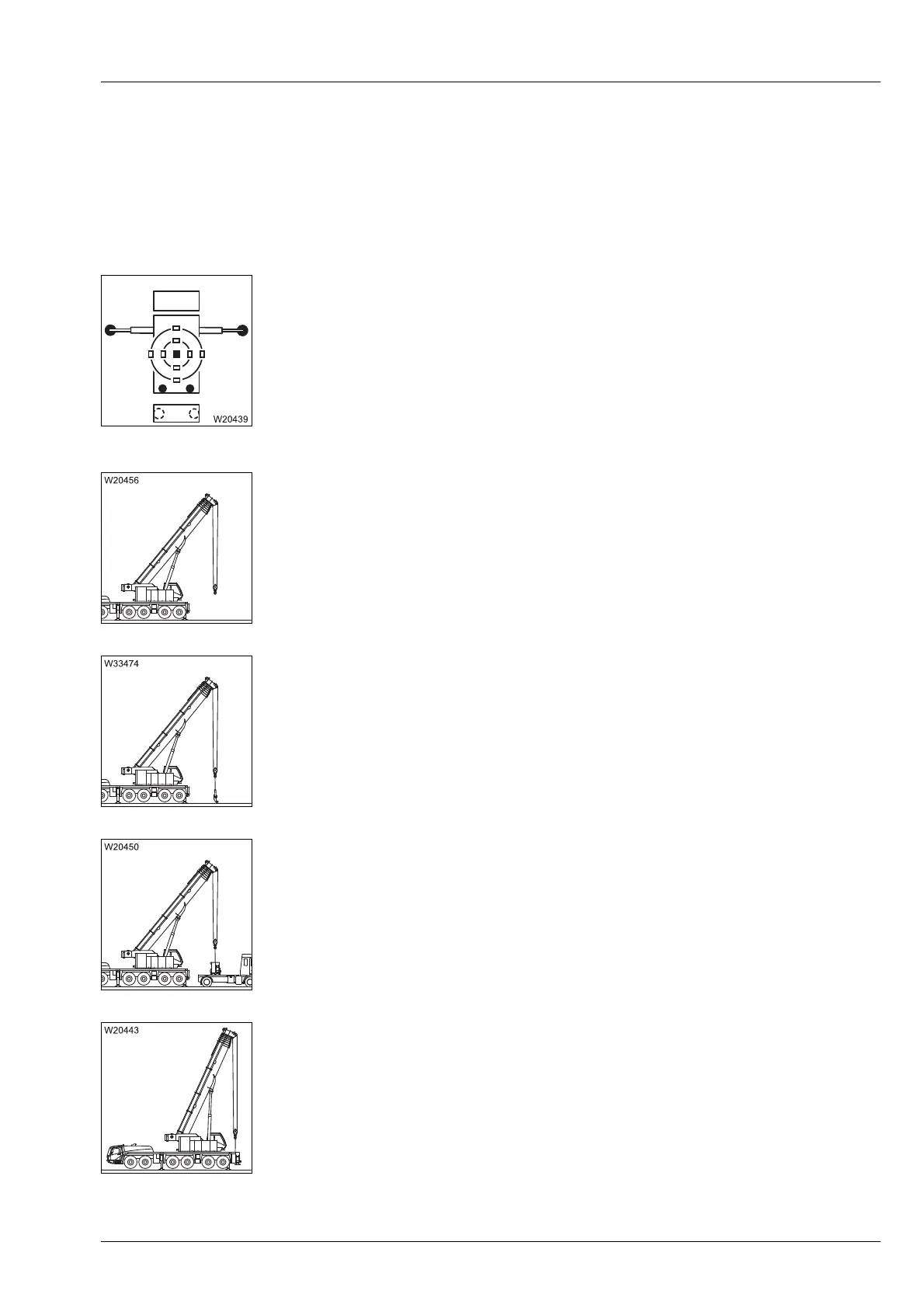

6.6.2 CHECKLIST: Installing the supporting box
H
This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions specified there!
1. Rig the outrigger span 7.98 x 8.50/1.00 m (26.1 x 27.9/3.3 ft) and align
the truck crane horizontally;
à p. 6 - 71.
2. With the RCL set accordingly, raise the main boom and slew the super-
structure into the position for raising the supporting box;
à Crane movements during installation and removal, p. 6 - 81.
3. Install rear bumper if necessary;
à p. 6 - 86.
4. Sling the supporting box to the truck crane and remove from the sepa-
rate vehicle;
à Slinging points on the supporting box, p. 6 - 82.
If the supporting box was placed on the supports:
Retract the supports;
à p. 6 - 79.
5. Suspend the rear supporting box in the holders on the carrier;
à p. 6 - 77.
s
