Driving modes
6.6 Installing/removing the supporting box
Operating Manual GMK6300L 3 112 xxx en 6 - 79
xx.xx.xxxx

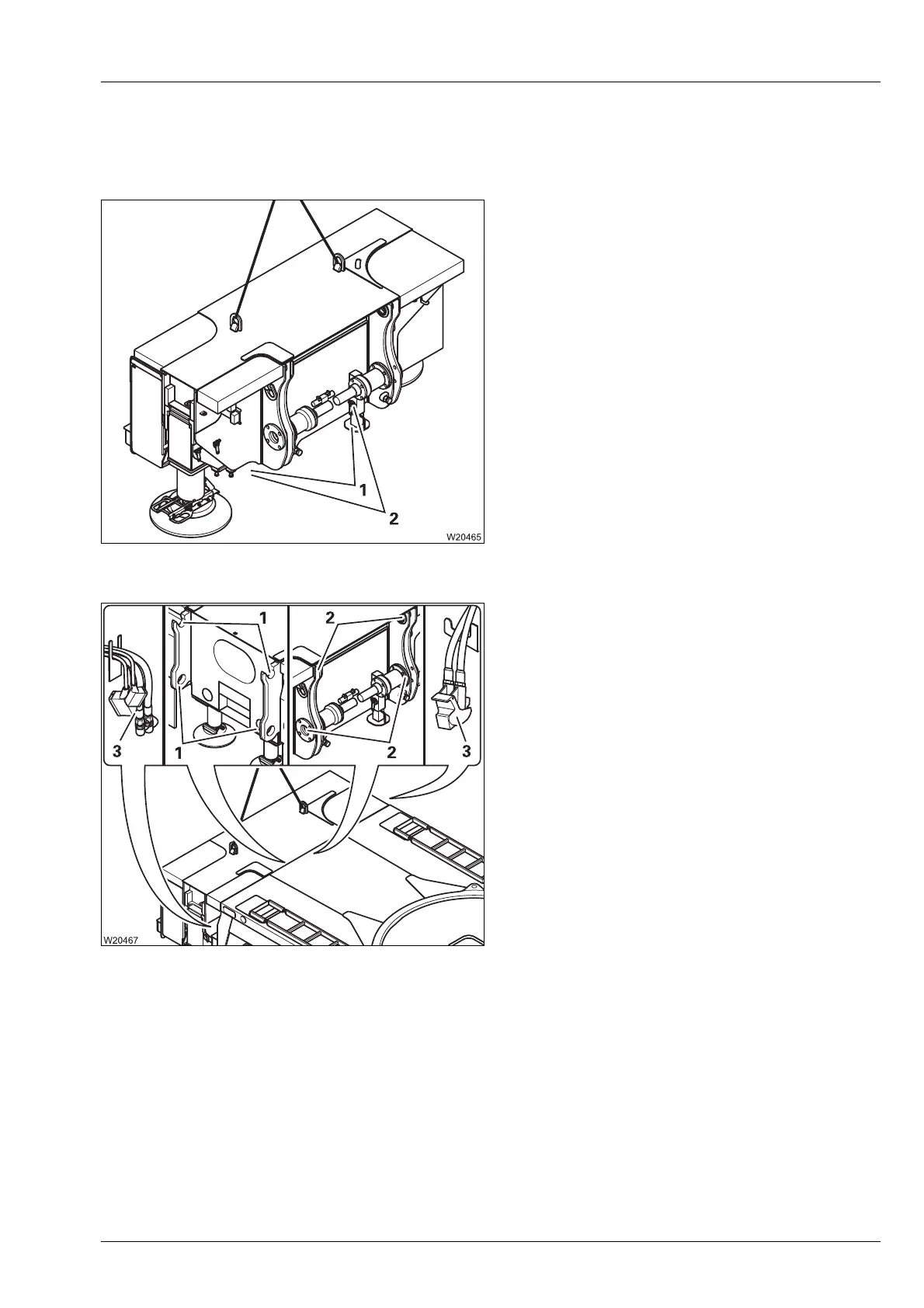

Hanging The supporting box is within one of the radii permitted by the RCL.
The supports must be retracted before hanging the box.
• Sling the supporting box.
• Pull the locking pins (2).
• Retract the supports (1).
• Secure the supports; by inserting the lock-
ing pins into the lower hole.
• Where necessary to do so, bring all the
outrigger pads into driving position;
à p. 12 - 39.
Do not override the RCL!
• Hoist the supporting box onto the carrier
in such a way that the pins (2) on the sup-
porting box are vertically above the
mountings (1) on the rear of the vehicle.
• Hang the supporting box in the mount-
ings (1).
Take care that the cables and hoses (3) are
not trapped and damaged.
