Driving modes
6.6 Installing/removing the supporting box
6 - 74 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
6.6.4 Establishing/disconnecting the pneumatic connection
When additional equipment is in use, there is a pneumatic connection
between the carrier and the supporting box.

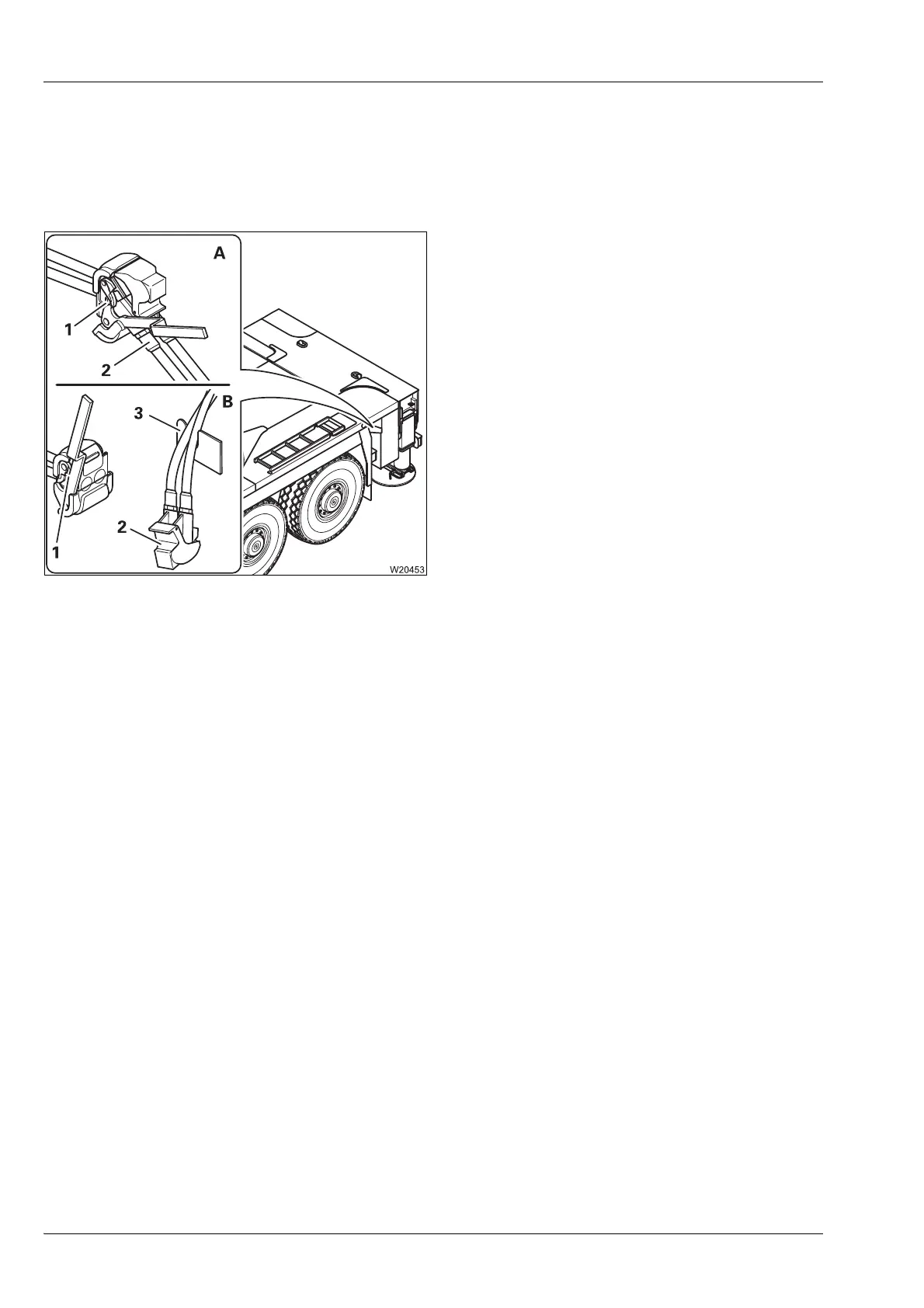

(A) – Establishing the connection
• Open the connection (1).
• Connect the hoses (2) to the connection (1).
(B) – Disconnecting the connection
• Open the connection (1) and remove
the hose (2).
• Suspend the hoses in the clamp (3).
