Driving modes
6.3 Rigging work for driving with a trailer
Operating Manual GMK6300L 3 112 xxx en 6 - 17
xx.xx.xxxx
6.3.5 Switching the superstructure driving lights on/off

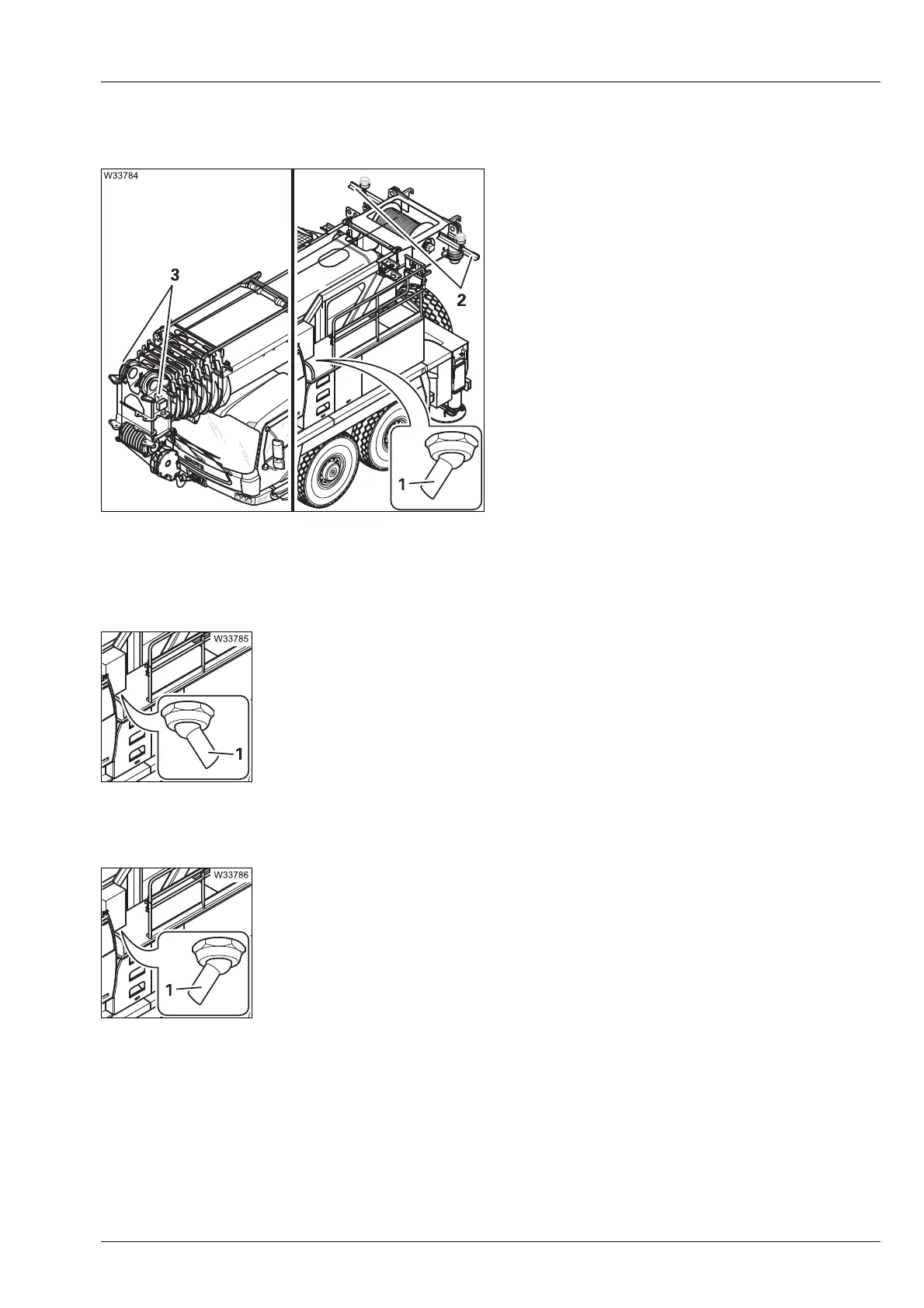

The lighting for the superstructure includes
lamps (2) and (3).
With standard equipment, lamps (2) and (3)
are always switched on and off together with
the parking light and the headlights.
With additional equipment consisting of the
switch (1), lamps (2) and (3) can be switched
on or off separately when the parking light or
headlights are switched on.
Switching off When the boom is set down on a trailer, you can switch off the
Superstructure
driving lights when necessary, e.g. in order to conform to country-specific
regulations for the colour of front and rear lights.
• Push the switch (1) to the right – outwards.
Switching on When the main boom is on the boom rest, the
Superstructure driving lights
must be switched on.
• Push the switch (1) to the left – towards the turntable.
