Operating elements for crane operation
9.2 Short description of the operating elements
9 - 120 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

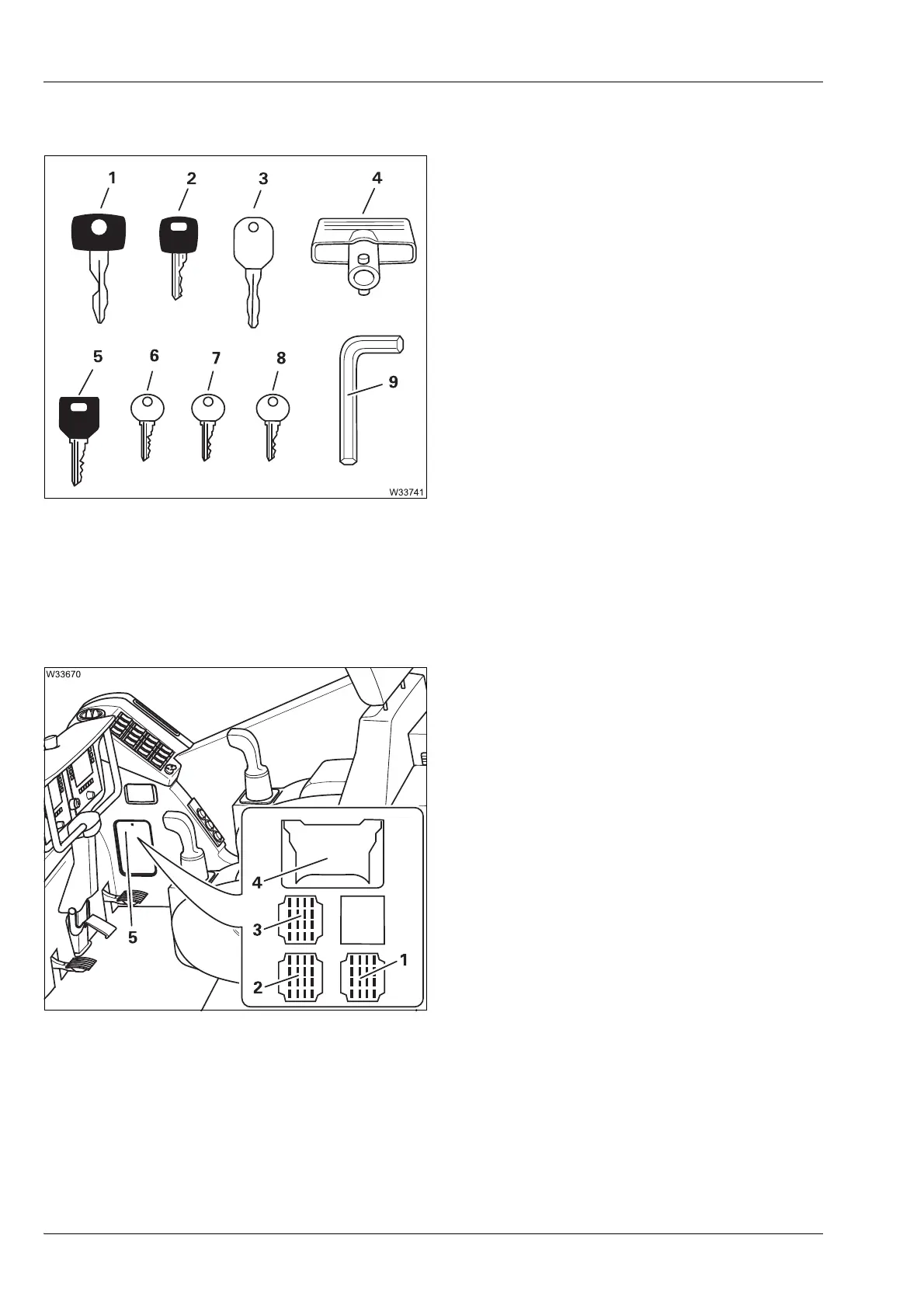

Keys Different keys are supplied.
9.2.25 Diagnostics
The diagnostics connections may only be operated by the service personnel.
The following connections are below the
cover (5)
.
1 Crane cab door lock
2 Crane cab ignition lock
3 Urea tank
1)
4 Distribution box
5 Key-operated override switch
6 Fuel tank
7 Boom floating position lock
1)
8 Slewing gear freewheel lock
1)
9 Covers, storage box
1)
1)
Additional equipment
1 ECOS diagnostics –
(serial interface)
2 ECOS diagnostics – CAN bus
3 RCL diagnostics
4 Engine diagnostics
