Operating elements for crane operation
9.1 Overview of the operating elements
9 - 24 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

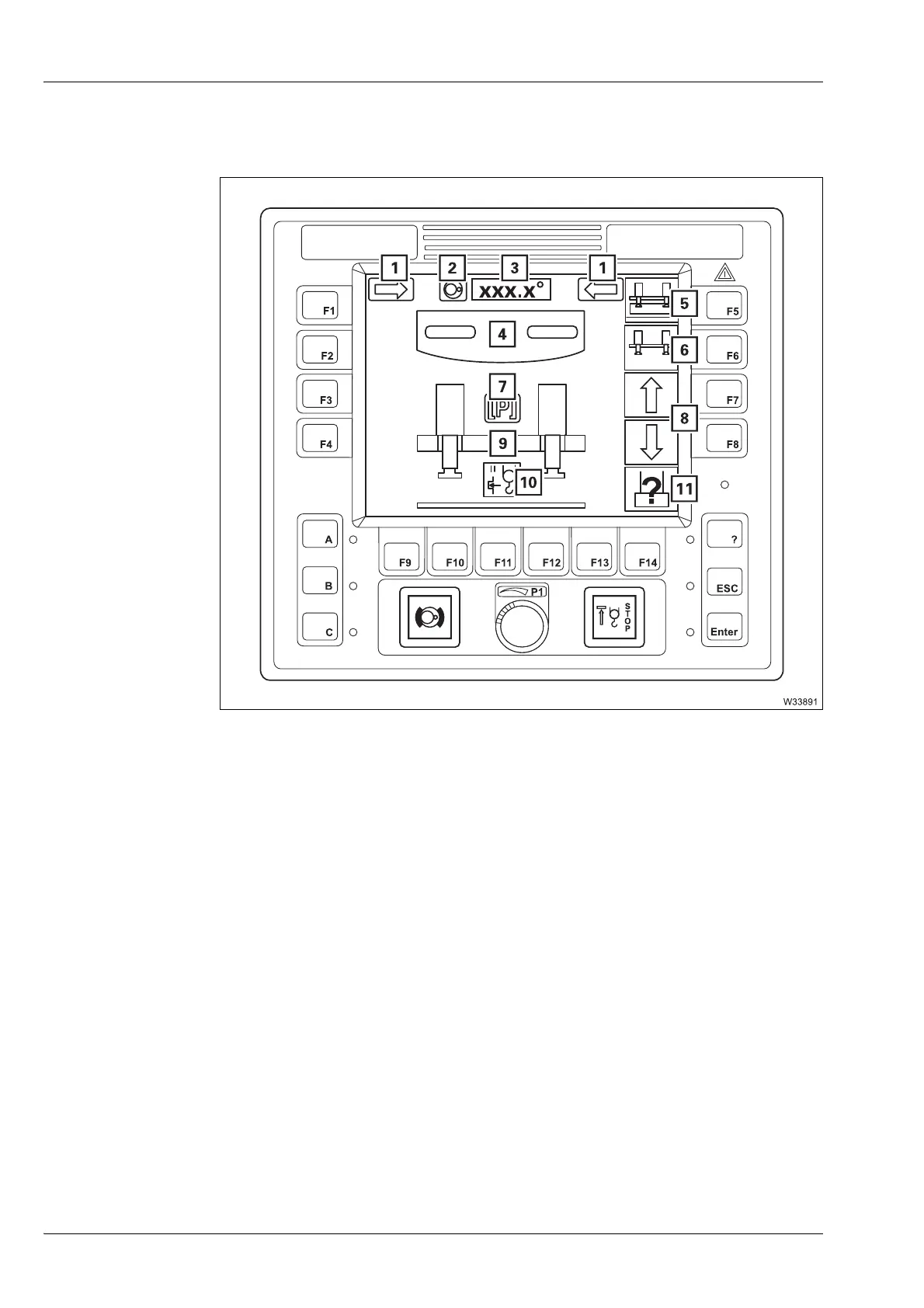

9.1.9 ECOS display – submenus
Counterweight
submenu
1 Display of slewing direction for automatic mode
à p. 9 - 74
2 Slewing gear display
à p. 9 - 77
3 Current slewing angle display
à p. 9 - 77
4 Rigging position display
à p. 9 - 74
5 Automatic mode, rigging
à p. 9 - 75
6 Automatic mode, unrigging
à p. 9 - 75
7 Pre-tensioning pressure display
à p. 9 - 77
8 Extending/retracting the lifting cylinders
à p. 9 - 76
9 Lifting cylinder position display
à p. 9 - 76
10 Auxiliary hoist lock display
1)
à p. 9 - 77
11 Counterweight detection display
1)
à p. 9 - 77
1)
Additional equipment
