Malfunctions during crane operation
14.3 Fuses
Operating Manual GMK6300L 3 112 xxx en 14 - 11
xx.xx.xxxx
14.3.3 Fuses in the battery box
Fuses F10 to F13 are contained in the battery box.
• Open the battery box.
The fuses are in a terminal box on the right
side next to the batteries.
• Remove the lid from the terminal box:
• Observe the instructions on changing fuses;
à p. 14 - 5.
S
Danger from lead and lead compounds on batteries!
Battery poles, battery terminals and parts of the battery itself contain lead
and lead compounds. Wash your hands after working on these parts or in
these areas!

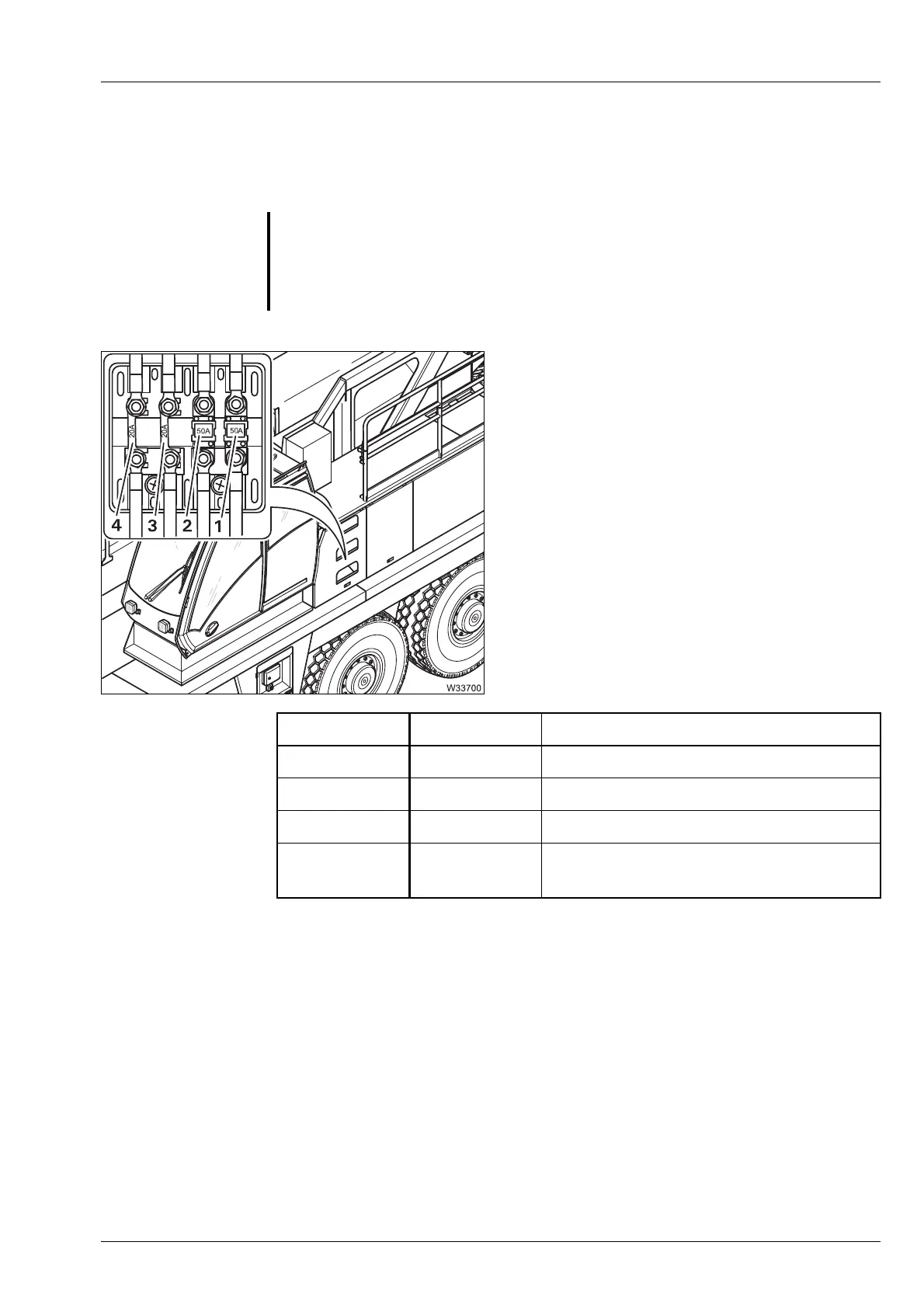

1 Fuse F10
2 Fuse F11
3 Fuse F12
4 Fuse F13
Designation Amperage (A) Function
F10 50 Unassigned
F11 50 Superstructure central fuse
F12 20 Unassigned
F13 20
Preliminary fuse for time switch of
auxiliary heater
