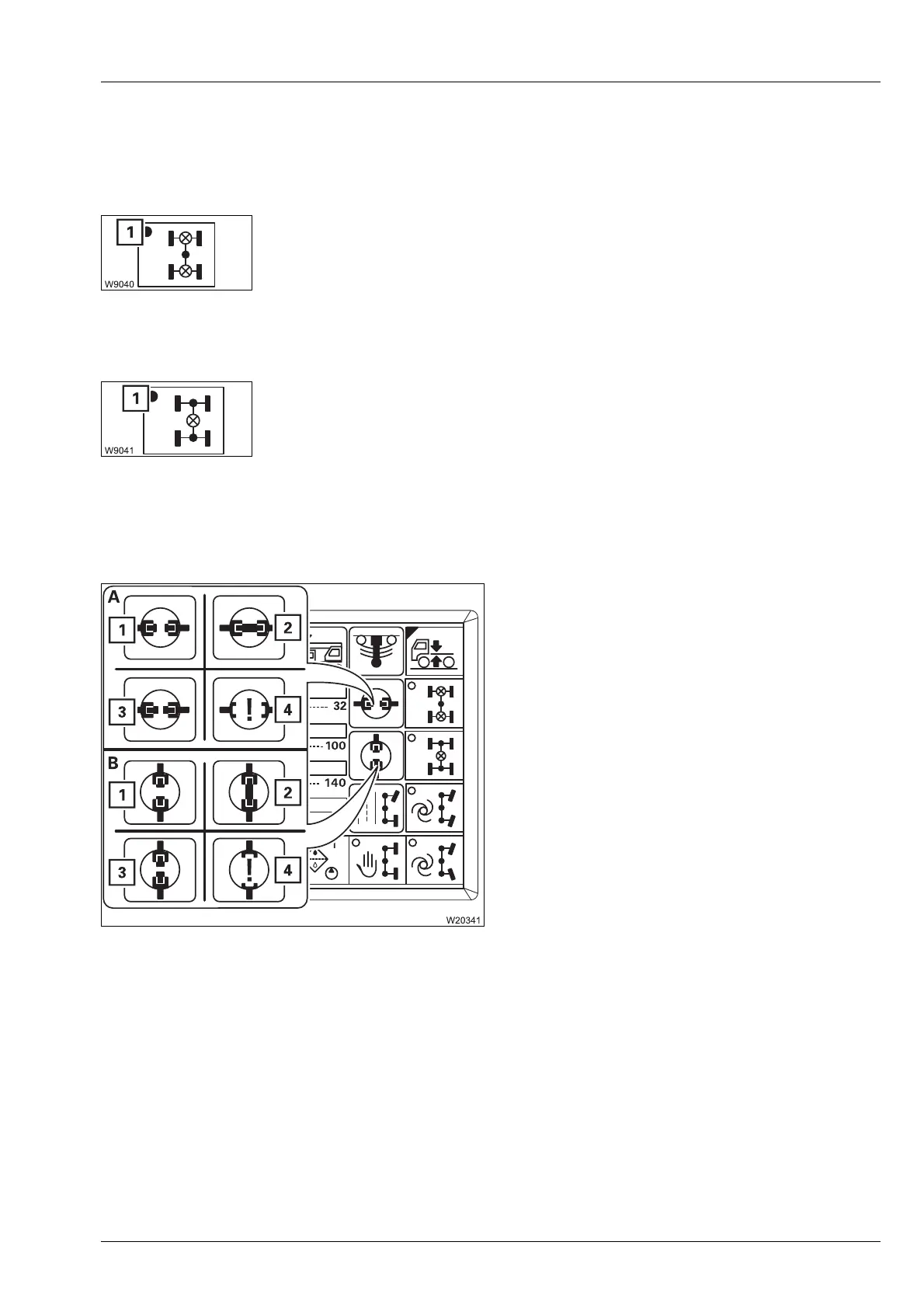

Operating elements for driving
3.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 3 - 53
xx.xx.xxxx
3.2.11 Final drive
à Longitudinal and transverse differential locks, p. 5 - 62
Transverse differential locks on/off
Longitudinal differential locks on/off
With additional equipment, the drive of the 2nd axle line is switched on and
off simultaneously.
The current status is shown using different
symbols:
– To switch on: Press button once – dot (1) green, maximum 20 km/h
(12 mph)
– To switch off: Press button once – dot (1) black
– To switch on: Press button once – dot (1) green, maximum 20 km/h
(12 mph)
– To switch off: Press button once – dot (1) black
A Transverse differential locks display
B Longitudinal differential locks display
1 Green – locks off
2 Red – locks on
3 Yellow – intermediate position
4 Violet – error
