Operating elements for driving
3.2 Short description of the operating elements
3 - 54 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

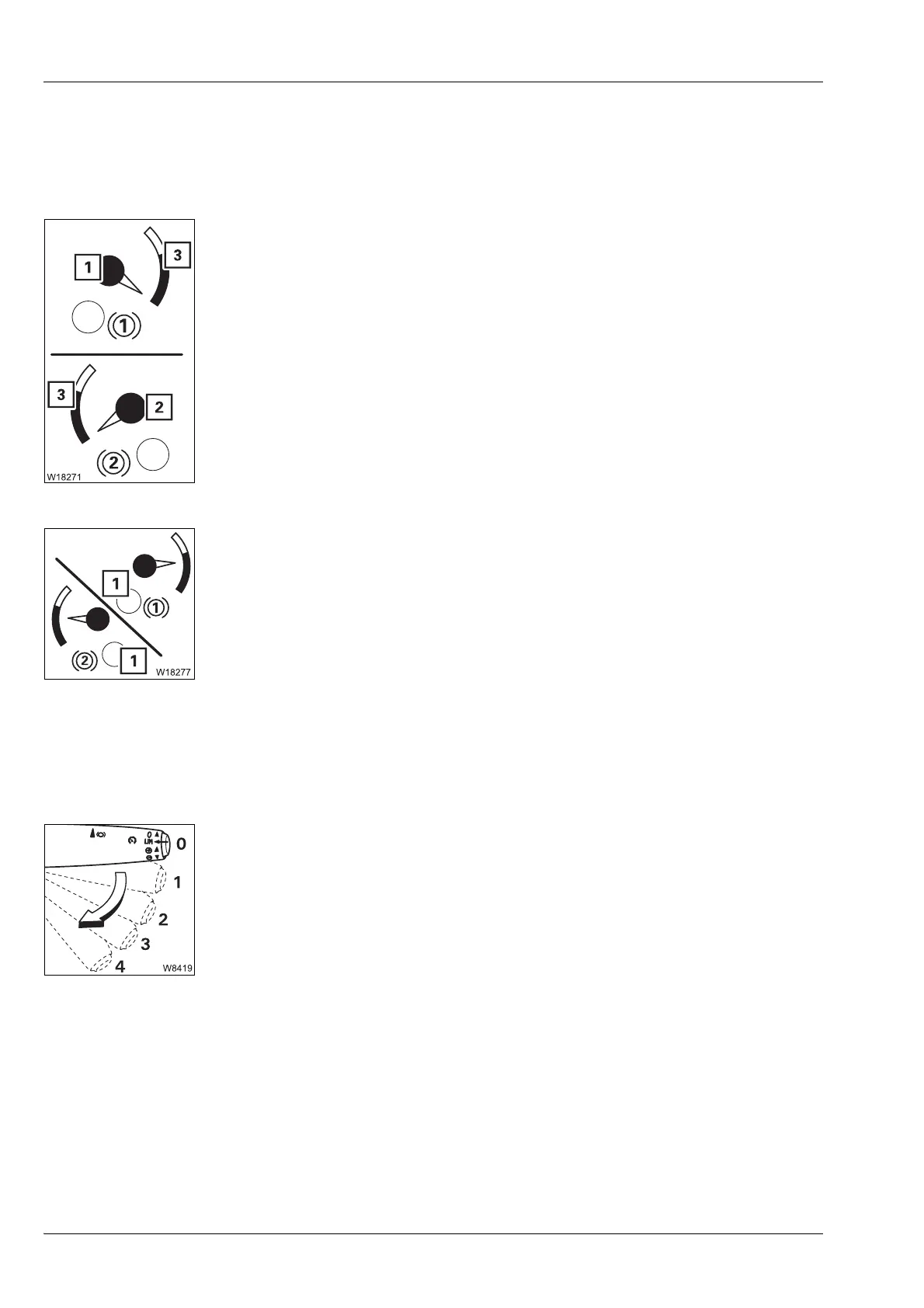

3.2.12 Brakes
Service brake
Display – supply pressure in brake circuits
Warning – supply pressure in the displayed brake circuit too low
Additional brakes Engine retarder/transmission retarder
à Additional brakes, p. 5 - 46
Multipurpose switch
1 Current supply pressure in brake circuit 1
2 Current supply pressure in brake circuit 2
3Red – supply pressure insufficient
White – supply pressure sufficient
à p. 5 - 54
1–On: Supply pressure below approx. 5 bar (73 psi)
– Off: Supply pressure above 5.5 bar (80 psi)
à p. 5 - 54
0Forward: Engine retarder and transmission retarder off
1Back: Engine retarder
2Back: Engine retarder, transmission retarder 50%
3Back: Engine retarder, transmission retarder 75%
4Back: Engine retarder, transmission retarder 100%
