Rigging work
12.6 Outriggers
12 - 32 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
12.6.5 Setting the outrigger spans
Extend the outrigger beams only as far as the permissible spans.
H
This section describes how to release and secure the outrigger beams, as
well as the markers for the outrigger spans.
There are various ways to move the outrigger beams;
à Extending/
retracting outrigger beams
, p. 12 - 35.

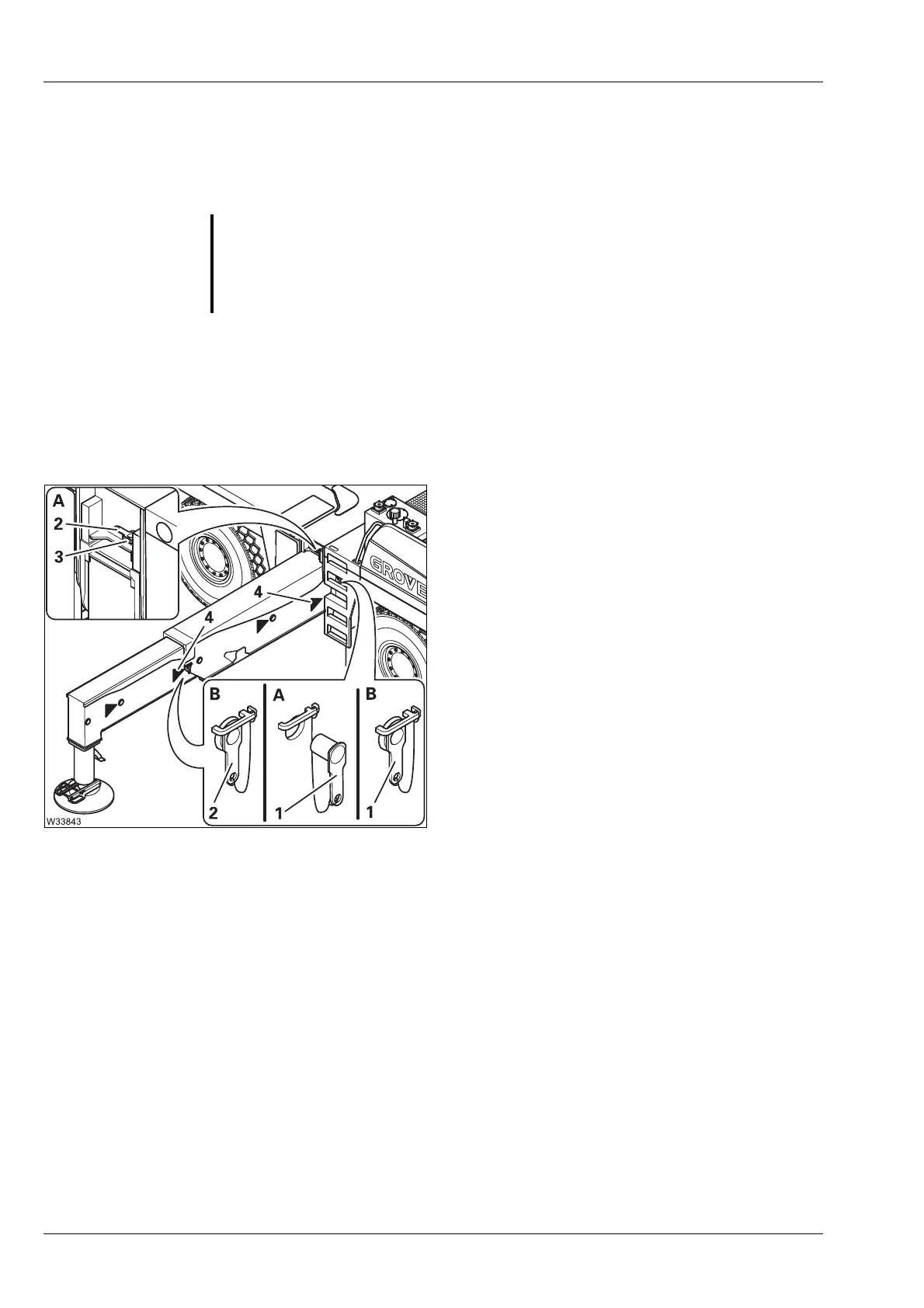

Outrigger span 8.70 x 8.50 m (28.5 x 27.9 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) inserted in holder (3)
(B) – Setting and securing
• Extend the outrigger beam up to the
mark (4).
• Secure the outrigger beam with the pins (1)
and (2).
• Set the outrigger spans on the other
outrigger beams in the same way.
G
Danger of overturning if the outrigger beams are not correctly extended!
Always extend all outrigger beams to the required outrigger span even if
you are only working on one side. Otherwise the rear stability for the
rigging mode according to the RCL code is no longer guaranteed.
