Rigging work
12.6 Outriggers
12 - 30 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
6. Switch off the engine;
– after operating it from the control units;
à p. 4 - 23.
– after operating it from the crane cab;
à p. 10 - 21.

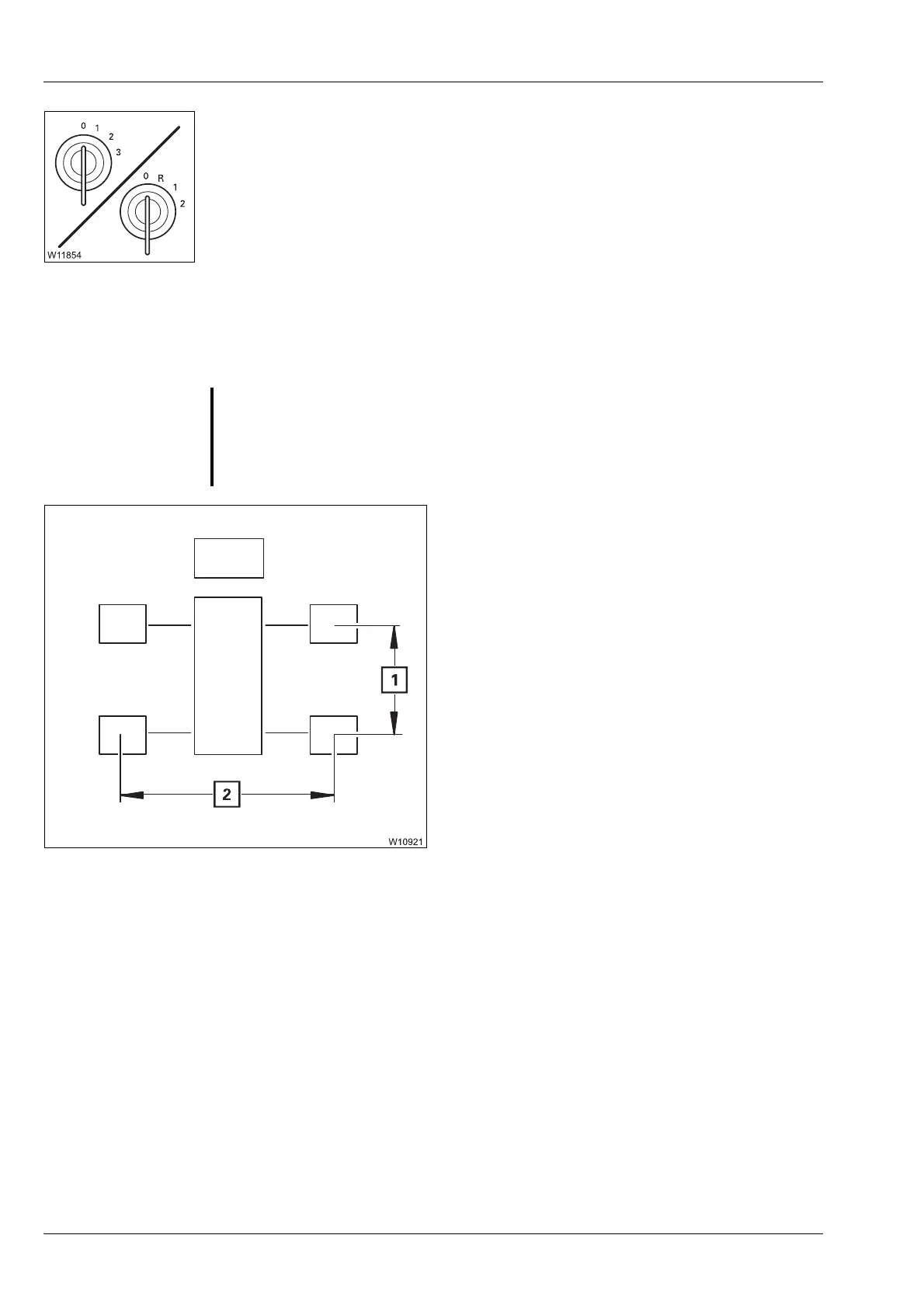

12.6.3 Permissible outrigger spans
The Lifting capacity table specifies the
permissible outrigger spans in metre x metre
(feet x feet):
The first value represents the outrigger
length (1), e.g. 8.70 m (28.5 ft).
The second value specifies the required
outrigger span (2), e.g. 8.50 m (27.9 ft).
G
Risk of overturning when slewing the superstructure!
With some outrigger spans, slewing is only permissible with certain
counterweight combinations and boom positions;
à Slewing with rigged
counterweight
, p. 12 - 83.
A 8.70 x 8.50 m (28.5 x 27.9 ft)
B 8.70 x 7.40 m (28.5 x 24.3 ft)
C 8.70 x 6.30 m (28.5 x 20.4 ft)
D 8.70 x 5.00 m (28.5 x 6.4 ft)
M 8.70 x 2.71 m (28.5 x 8.9 ft)
7.98 x 8.50/1.00 m (26.1 x 27.9/3.3 ft) (rear
outriggers)
