Operating elements for crane operation
9.2 Short description of the operating elements
9 - 60 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

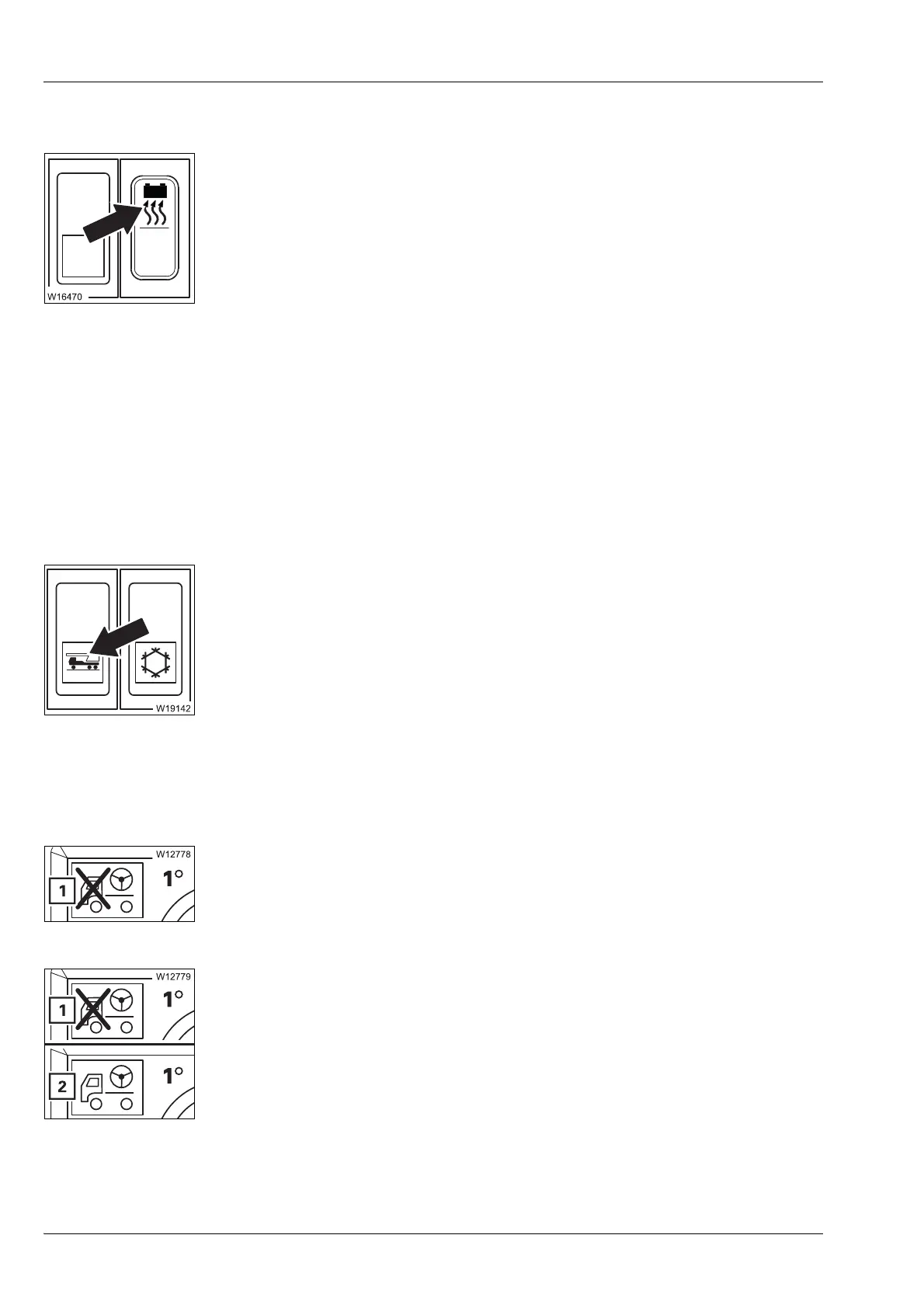

Console, rear
Battery heater on/off
Further information on operation;
à Separate operating instructions.
ECOS display There is no short description of the displays in the submenus;
à Monitoring submenu, p. 10 - 15,
à Warning submenu, p. 11 - 110.
9.2.4 Engine for driving
Side panel
Carrier ignition on/off
There is a lamp in the button.
The superstructure ignition has been switched on for approx. 30 seconds.
Main menu
Combined operation display
The prerequisites for combined operation have not been met:
Combined operation on
The prerequisites for combined operation have been met:
à Driving in combined operation, p. 13 - 10
–Up: Heating system on
– Down: Heating system off
– Press down once: Ignition on – lamp flashes
After engine start: lamp lights up
– Press up once: Ignition off – lamp is off while engine is running,
engine cutout
à p. 12 - 23
1 Grey: Combined operation switched off – button disabled
1Red: Combined operation switched off – press button once,
combined operation on, symbol (2) displayed
2 Green: Combined operation switched on – button disabled,
to switch off – carrier ignition off
