Operating elements for driving
3.2 Short description of the operating elements
3 - 68 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
3.2.18 Rear supporting box control unit
à Installing/removing the supporting box, p. 6 - 65

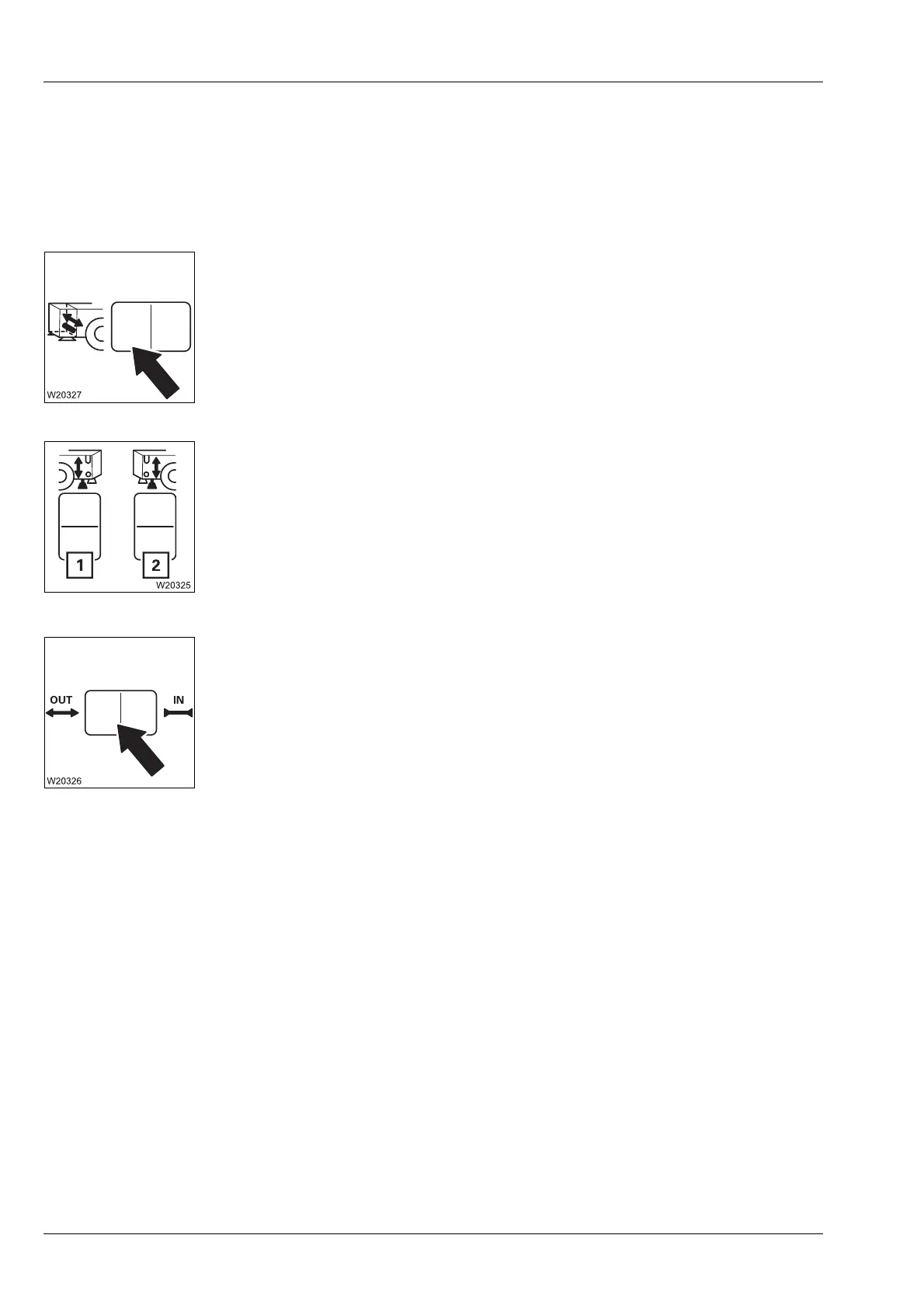

Locking pin pre-selection
.
Left/right auxiliary supports pre-selection
.
Extending/retracting
The movement stops after a button is released or when an end position
is reached.
– Press in to the left: Locking pin pre-selection
à p. 6 - 83
1 – Press down: Pre-selection, left auxiliary support
2 – Press down: Pre-selection, right auxiliary support
à p. 6 - 71
– Press in to the left: Extending the auxiliary support or locking pin
– Press in to the right: Retracting the auxiliary support or locking pin
à p. 6 - 71
