Crane operation
11.1 Before operating the crane
Operating Manual GMK6300L 3 112 xxx en 11 - 7
xx.xx.xxxx
11.1.3 Adjusting the crane cab seat and front control panel

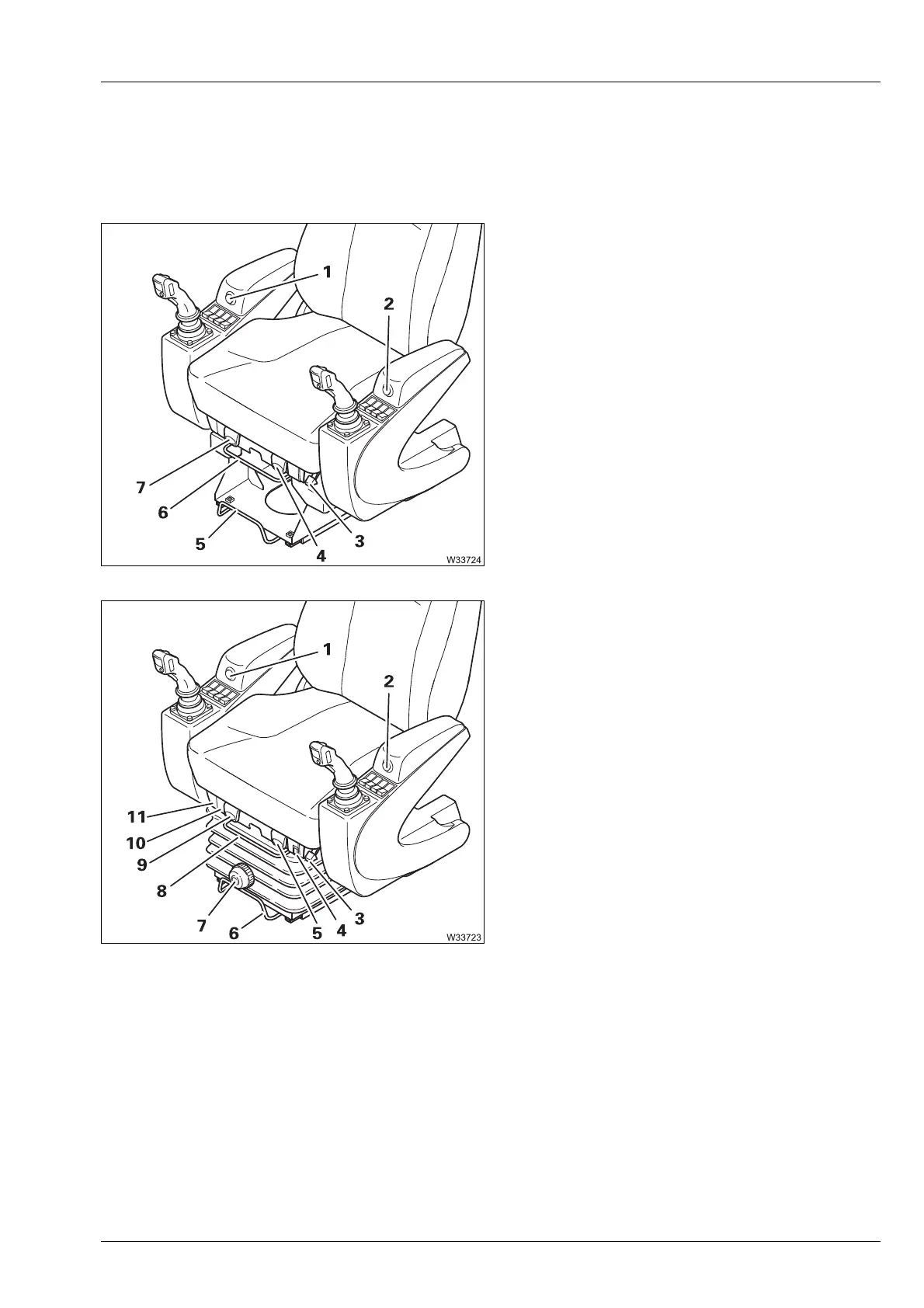

Crane cab seat You can adjust the crane cab seat to your height.
Version 1
Version 2
• For version 2 pay attention to the seat contact switch; à p. 9 - 62.
s
1 Control panel right – height
2 Control panel left – height
3 Back rest – angle
4 Seat – height
5 Seat – longitudinal adjustment,
With control panels
6 Seat – longitudinal adjustment,
Without control panels
7 Seat cushion – angle
1 Control panel right – height
2 Control panel left – height
3 Back rest – angle
4 Seat heating
1)
on/off
5 Seat – height
1)
6 Seat – longitudinal adjustment,
With control panels
7 Adjust suspension stiffness to body
weight
8 Seat – longitudinal adjustment,
Without control panels
9 Seat cushion – angle
10 Upper lumbar area support
11 Lower lumbar area support
1)
Requirement – ignition is on
