Operating elements for driving
3.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 3 - 71
xx.xx.xxxx

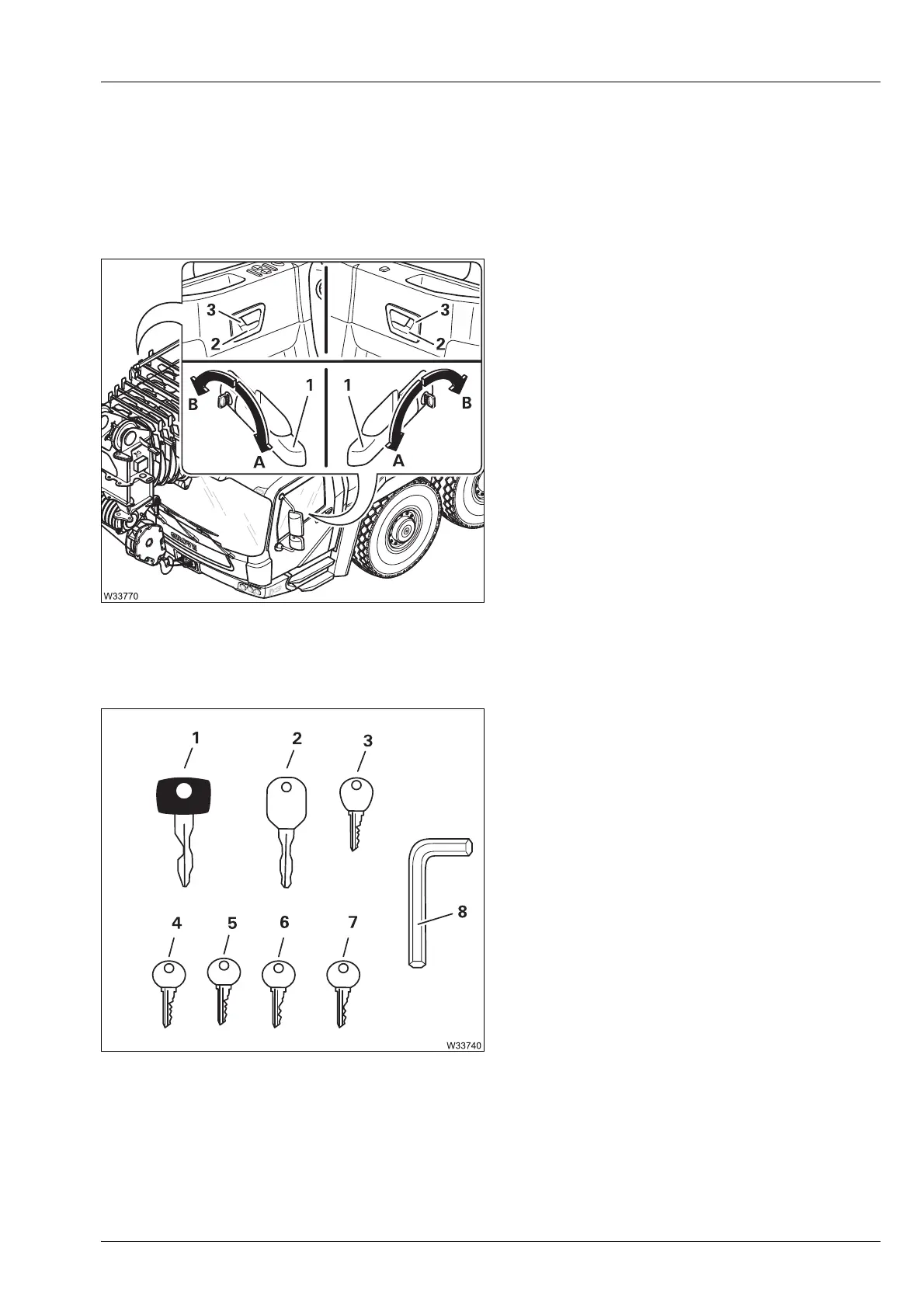

Doors The same key is used for the driver's and passenger's door.
H
Always take the ignition key with you before closing the door from outside
with the handle pressed in (2). Once closed in this manner, the door can only
be opened again using the ignition key.
Lock
• Turn the key towards B, or
• Press in the handle (3)
Unlock
• Turn the key towards A, or
• Pull the handle (3)
Opening
• Pull the handle (1), or
• Pull the handle (2)
Keys Different keys are supplied.
1 Door locks/ignition lock of driver's cab
2 Carbamide tank
1)
3 Control units for outriggers
4 Boom floating position lock
1)
5 Slewing gear freewheel lock
1)
6 Carrier storage box
7 Fuel tank
1)
8 Covers
1)
Additional equipment
