Manitowoc Grove GMK6300L User Manual

Operating elements for crane operation

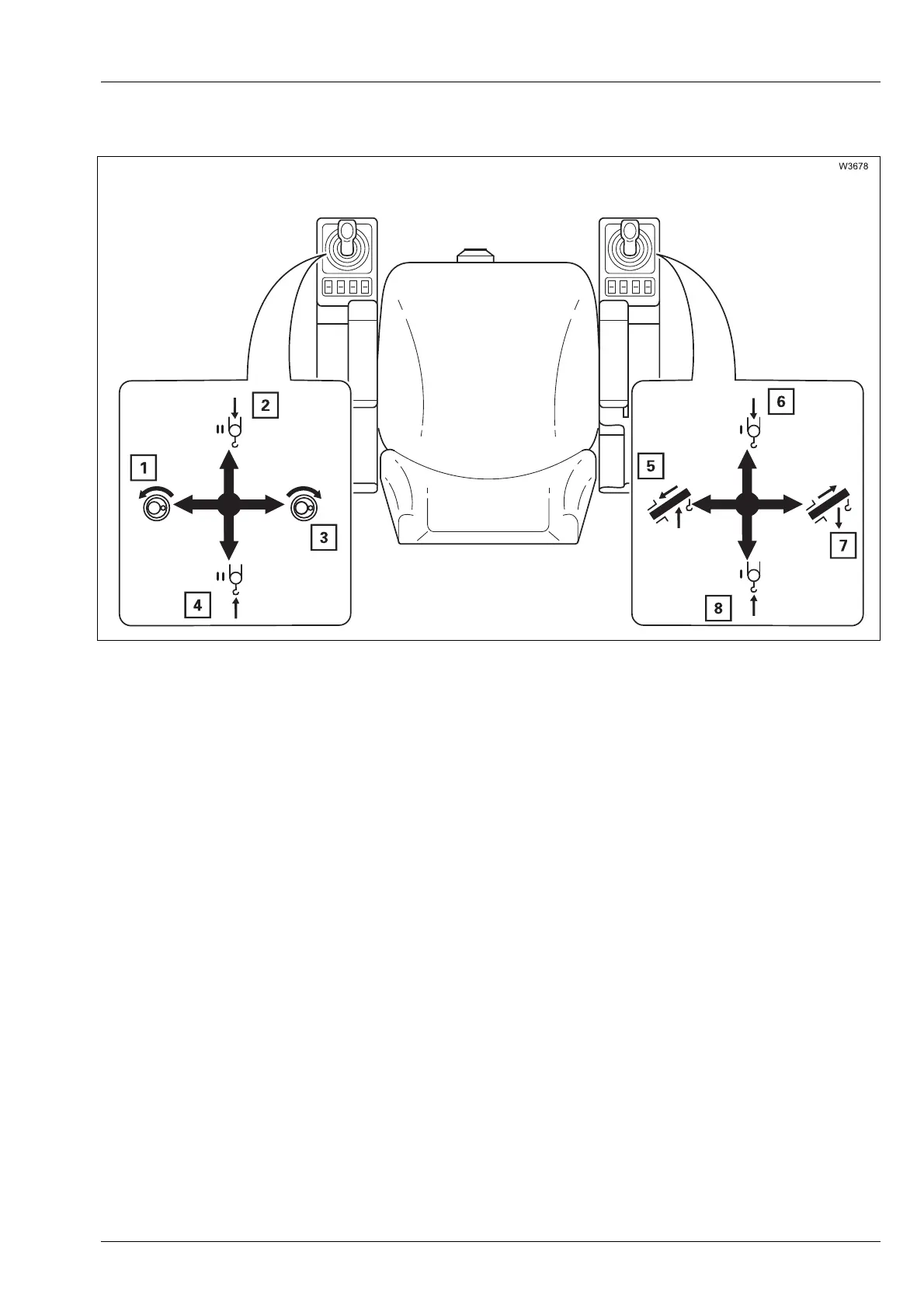

9.1 Overview of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 19
xx.xx.xxxx
Version 2 In version 2, the right control lever is assigned the Telescope function.
Left control lever Right control lever
1 Slew to the left 5 Raise/retract
2)
3 Slew to the right 7 Lower/extend
2)
2 Lower auxiliary hoist
1)
6 Lower the main hoist
4 Raise auxiliary hoist
1)
8 Lift the main hoist
1)
Additional equipment
2)
Derricking the lattice extension; à Operating Instructions Lattice Extension
