Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 91
xx.xx.xxxx

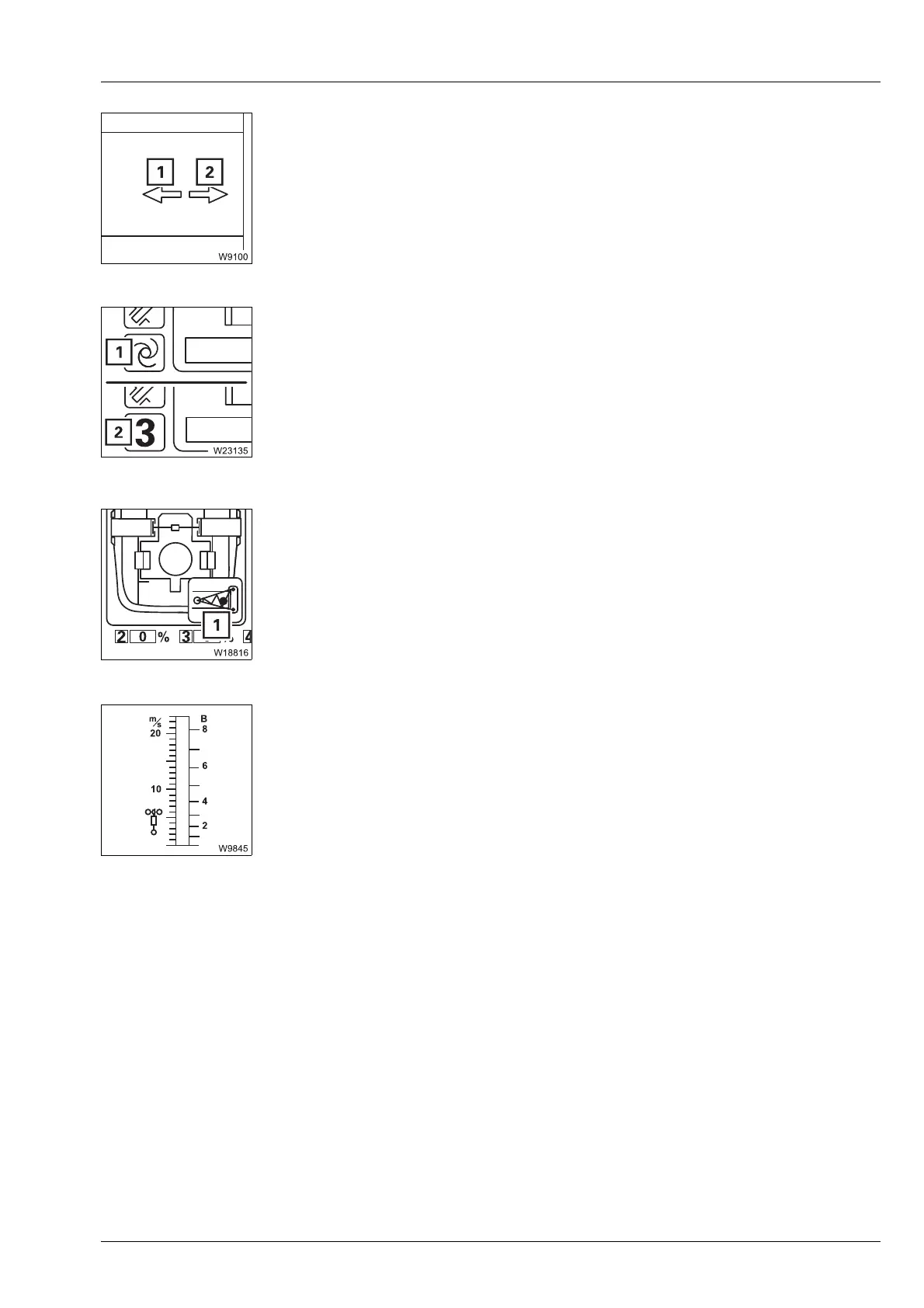

Teleautomation direction display
Teleautomation on/manual telescoping on
Lattice extension position display
Anemometer display
Same as in main menu;
à p. 9 - 73.
s
1On: Start teleautomation with Extending
2On: Start teleautomation with
Retracting
Flashing = control lever movement incorrect
à p. 11 - 89
1 Teleautomation on
à Telescoping with teleautomation, p. 11 - 89
2 Manual telescoping on
à Manual telescoping, p. 11 - 77
1 – Lights up red: Retracting/extending blocked
– Off: Retracting/extending released
p. 11 - 76
