Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 103
xx.xx.xxxx

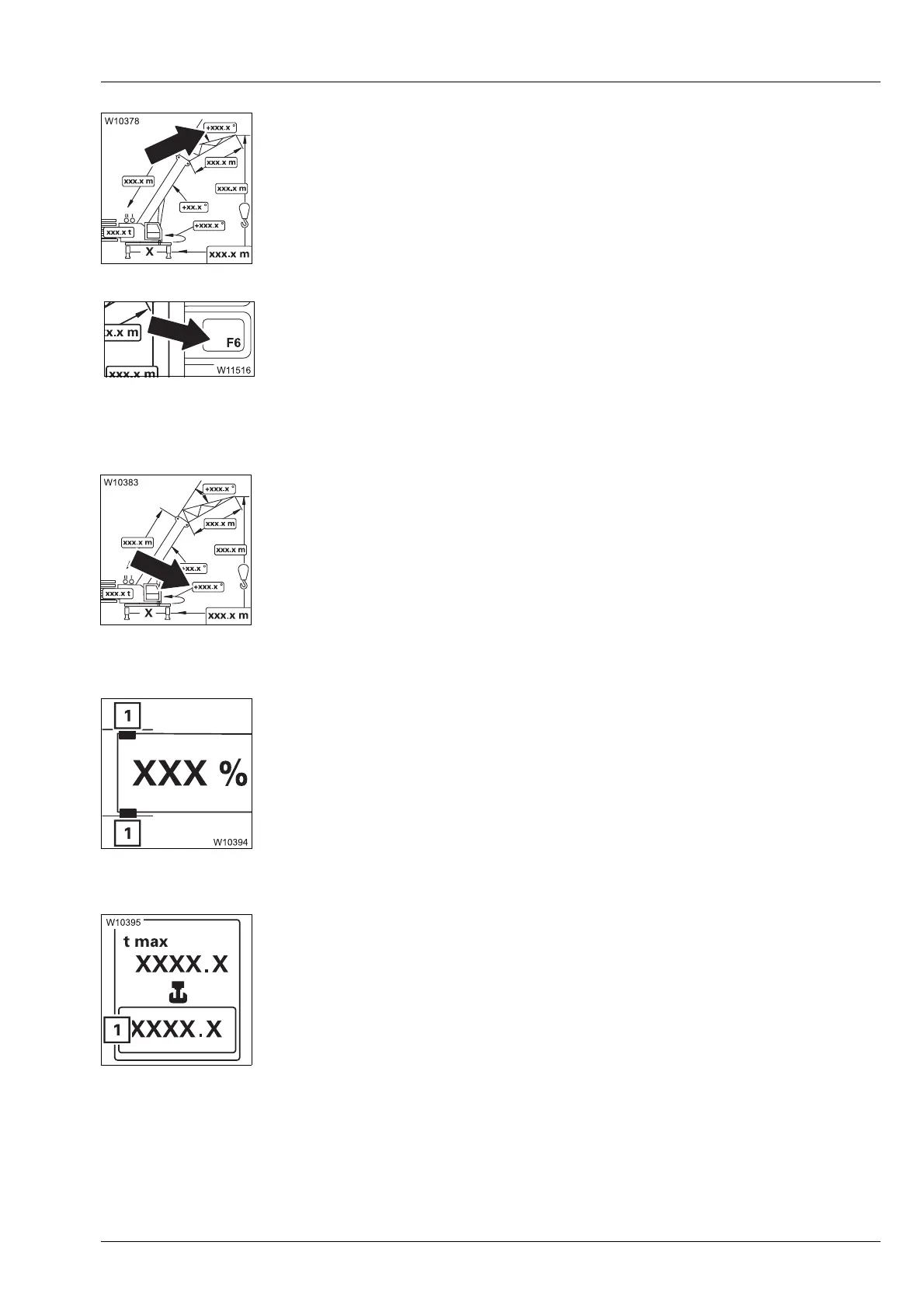

Angle of the lattice extension display
The inclinable lattice extension is connected.
Lifting capacity table submenu
Current slewing angle display
Current telescope status display
Telescope status of all telescopic sections in per cent – locking pins (1):
Current load display
s
– Display: Angle between lattice extension and main boom in
degrees (°) – for displayed RCL code
à p. 11 - 35
– Press the button
once:
The
Lifting capacity table submenu opens
à p. 11 - 47
0°: Position
0° to the rear
180°: Position 180° to the front
+ 0.1 to +180.0°: Turned to the right from 0°
- 0.1 to -179.9°: Turned to the left from 0°
à p. 11 - 35
–Green: Fixed length – locked and set down
– Flashing: Intermediate length – locked, not set down
– Black: Intermediate length – not locked
à p. 11 - 34
– Display: Currently raised load in tons (t) or kilopounds (klbs) –
precision ± 5% of actual load
Example: 55.2 klbs is equal to 55,200 lbs
à p. 11 - 36
