Operating elements for crane operation

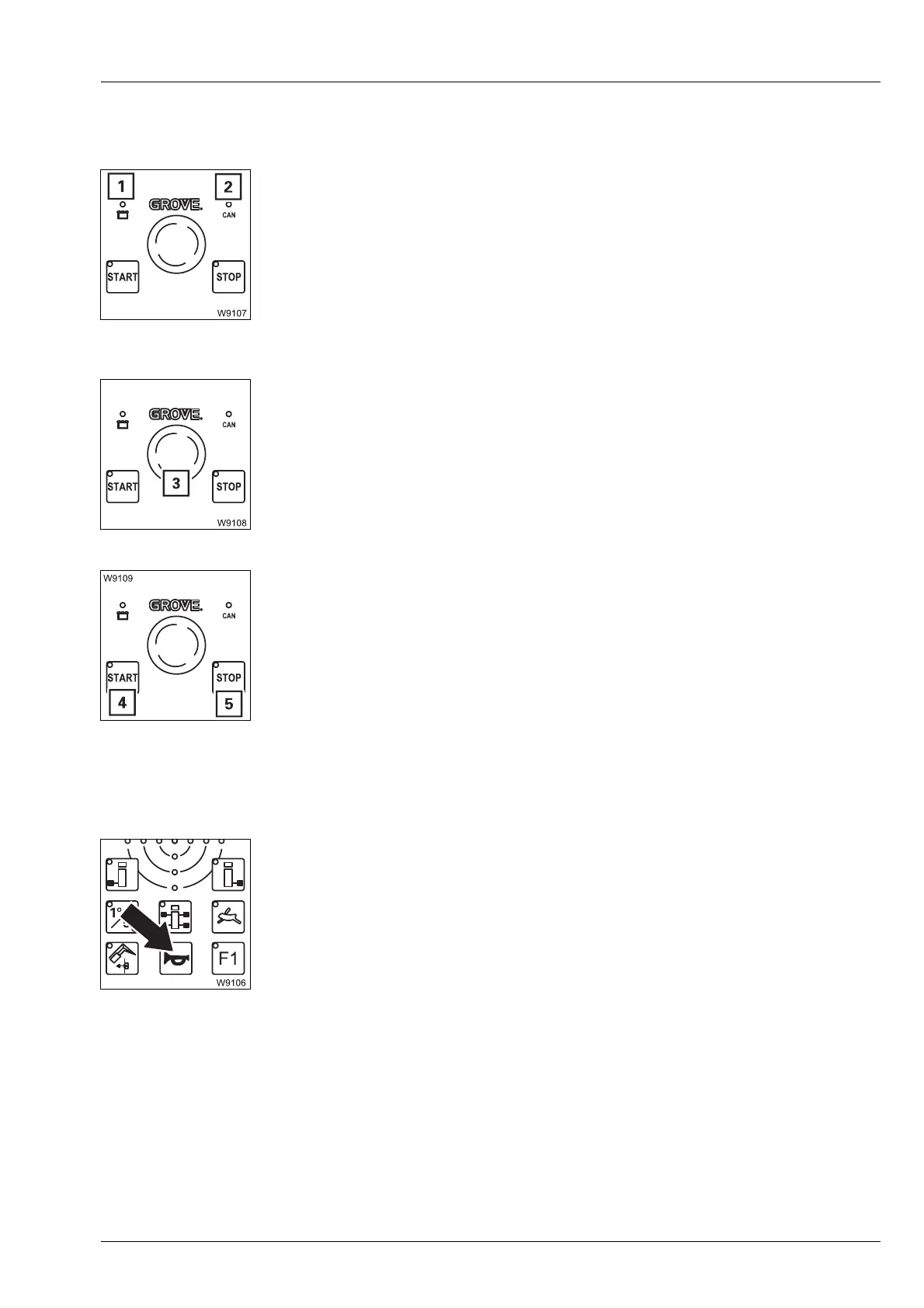

9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 115
xx.xx.xxxx
Engine control
panel
à Starting the engine – with the hand-held control, p. 10 - 19
Horn The ignition must be switched on.
s
1 Voltage monitoring
–On: Switch the ignition on
– Off: Switch the ignition off
2 CAN monitoring
–On: Hand-held control connected – no malfunction –
goes out after 20 seconds
– Flashing: Hand-held control connected – malfunction
3 Emergency stop switch
May only be used in an emergency
–Press: Engine off – crane functions stop immediately,
Switch latches
– Turn the latched
switch:
Switch returns to initial position – crane
functions released
4 START engine
– Press once: Engine on
5 STOP engine
– Press once: Engine off
–Press once: – Hand-held control on the superstructure socket –
superstructure horn on
