Starting/switching off the engine – for crane operation
10.1 Starting the engine – from the crane cab
10 - 6 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
Carbamide

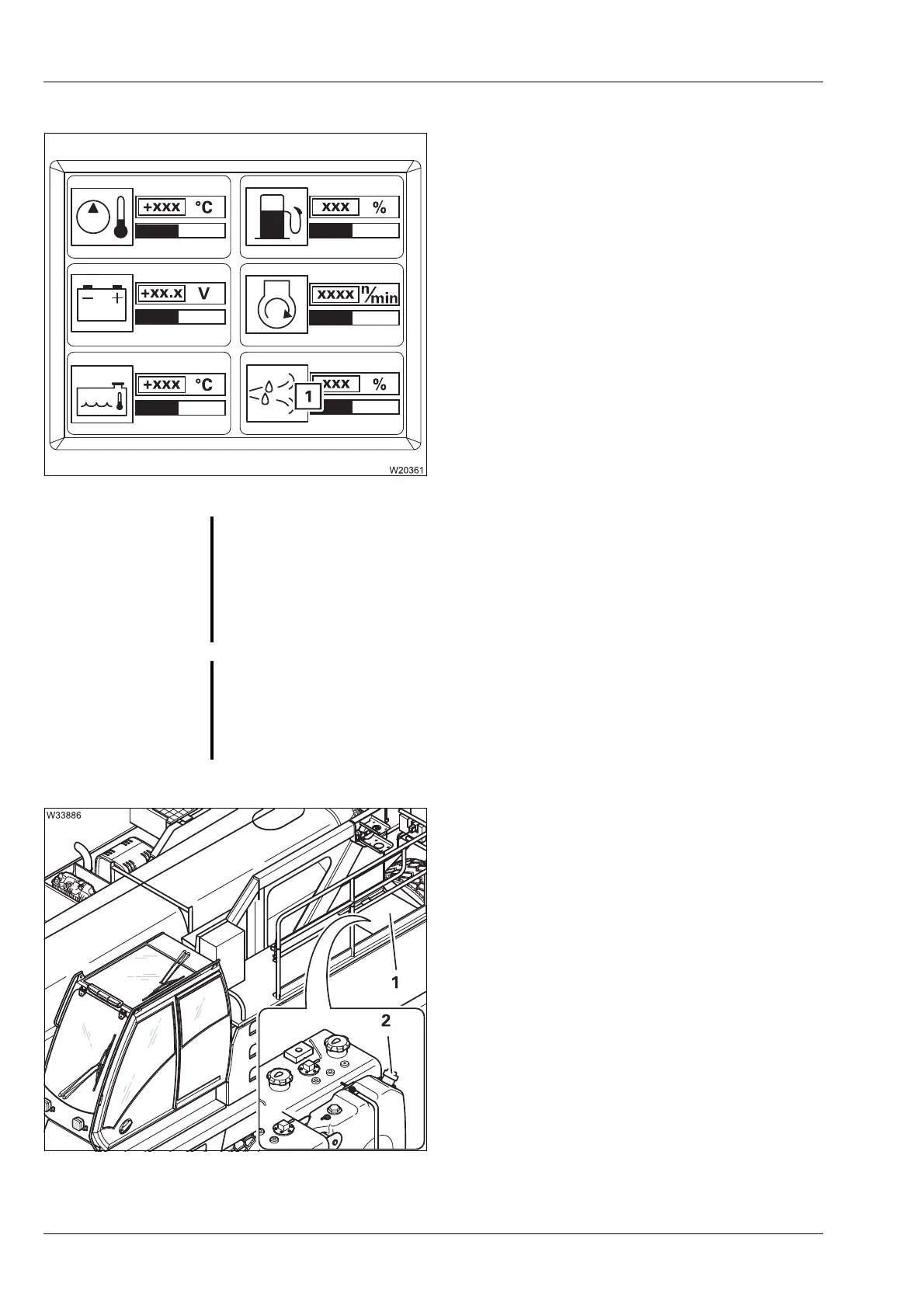

The display (1) indicates the current level in
percent. 100% corresponds to about 40 l
(0.9 gal).
The level indicator below the display changes
colour depending on the level:
When the carbamide tank is empty the engine
control system will reduce the motor torque.
You can override this torque reduction;
à Override torque reduction, p. 10 - 17.
H
• Open the cover (1).
• Refill the carbamide tank (2) via the filler
neck in good time and close the tank using
the cap.
• Close the cover (1).
Green: Over 10% – over 4 l (0.9 gal)
Yellow: 5 to 10% – 2 to 4 l (0.4 to 0.9 gal)
Red: Below 5% – less than 2 l (0.4 gal)
G
Risk of injury from ammonia vapours!
Ammonia vapours can escape if the carbamide tank is opened at high
outside temperatures. Ammonia vapours can irritate mucous membranes,
skin and eyes.
Ensure that there is adequate fresh air supply and do not breathe in the
escaping ammonia vapours.
S
Risk of damage to painted or aluminium surfaces!
Carbamide can damage these surfaces. Clean up spilled carbamide with
water immediately.
