11.2 Operation of the rated capacity limiter
11 - 30 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
Accepting the rigging mode
• Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
• Check:
For the rigging mode, the following is
displayed
:
• If you need to correct the values, press button (1).
The
Enter rigging mode submenu opens.
If the current rigging mode is displayed, press button (1). The
Monitoring
submenu opens and the crane movements are enabled provided no error is
pending;
à p. 11 - 31.
G
Risk of accidents due to an incorrectly set RCL!
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the RCL will not correspond to the actually
permissible lifting capacity according to the
Lifting capacity table.
Overloading and accidents will certainly be the result.

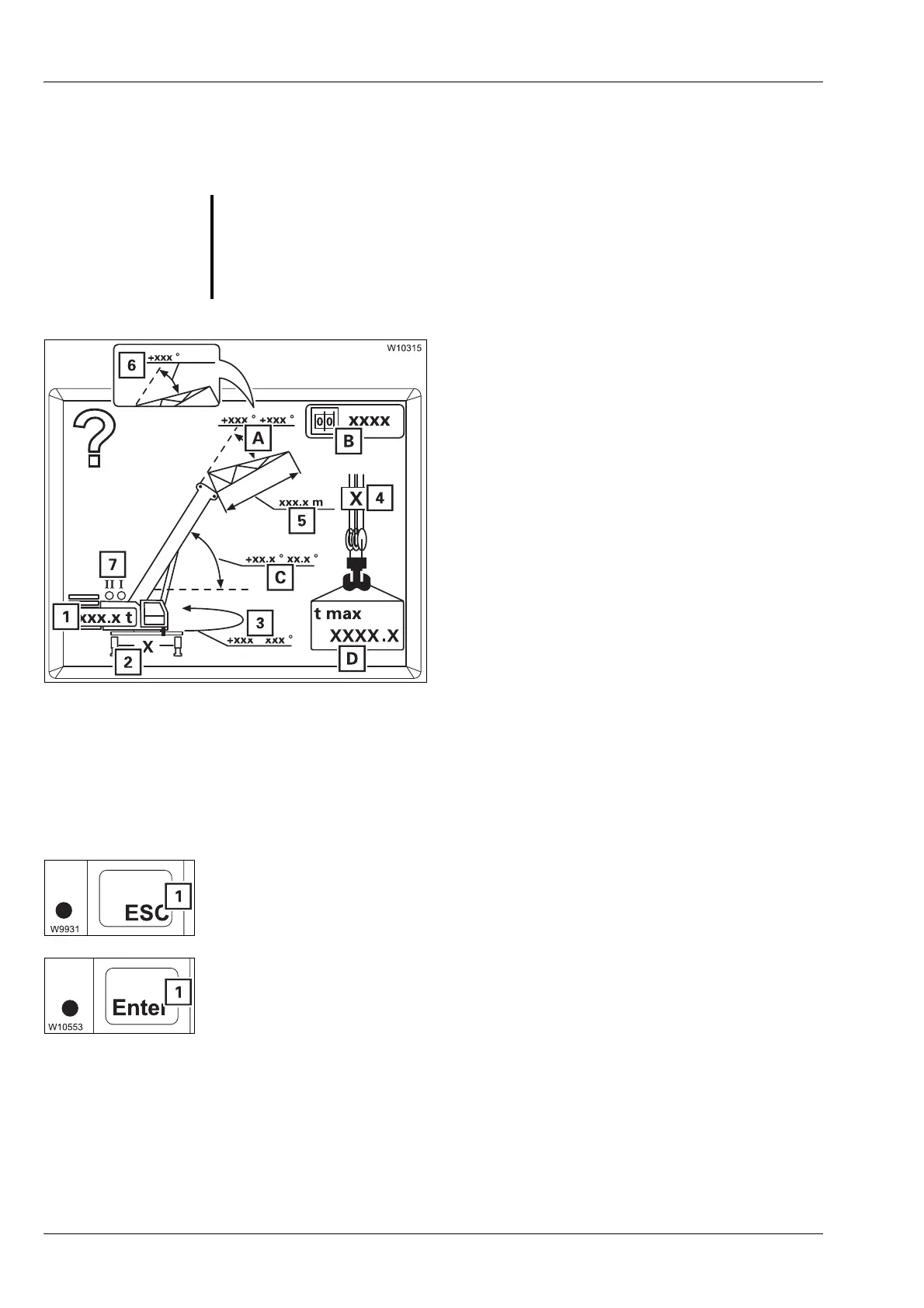

–1 The rigged counterweight
–2 The rigged outrigger span
–3 the slewing range for the planned job
–4 The number of reeved hoist rope
lines
–5 The length of the rigged lattice
extension
–6 The angle of the rigged lattice
extension – inclinable
–7 The hoist that is switched on – switch
over hoists;
à p. 11 - 32
A The permissible working range of the lattice extension
B The RCL code
C The permissible working range of the main boom
D The maximum load
