Crane operation
11.5 Working range limiter
Operating Manual GMK6300L 3 112 xxx en 11 - 117
xx.xx.xxxx

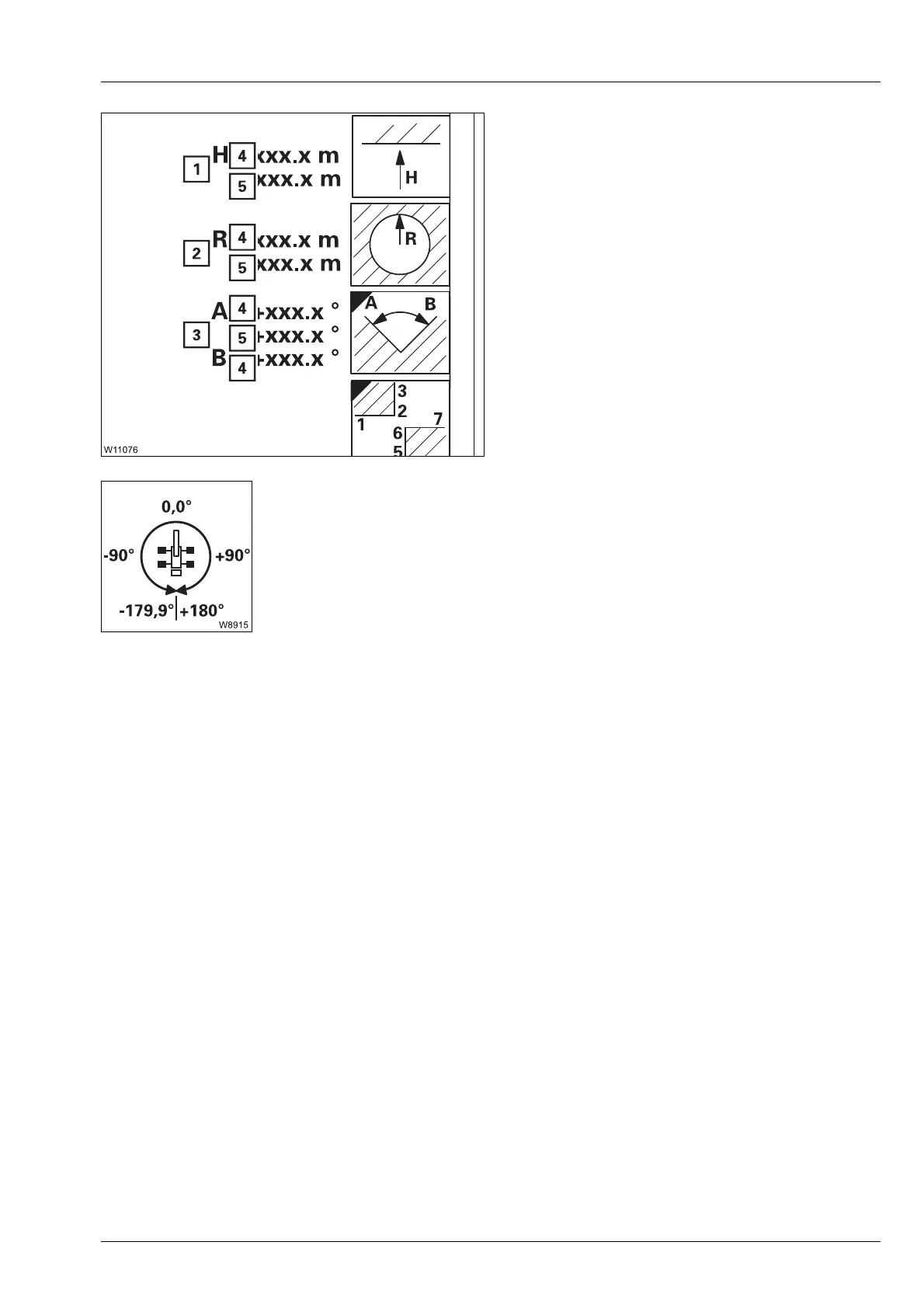

Limit values/current values
The displays (1) to (3) indicate values for:
Every display shows the following values:
In case of manual and switched on input,
display (5) changes;
à p. 11 - 124.
The following applies to the slewing angle display:
0° means that the superstructure is slewed to the rear.
– Angles in the right semi-circle are displayed as positive values
(0° to +180.0°).
– Angles in the left semi-circle are displayed as negative values
(0° to -179.9°).
H
Viewing the limit values for object monitoring; Ã Objects, p. 11 - 125.
1 Overall height
2 Working radius
3 Slewing angle
4 Limit value – red
5 Current value – blue
