Rigging work
12.6 Outriggers
12 - 28 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

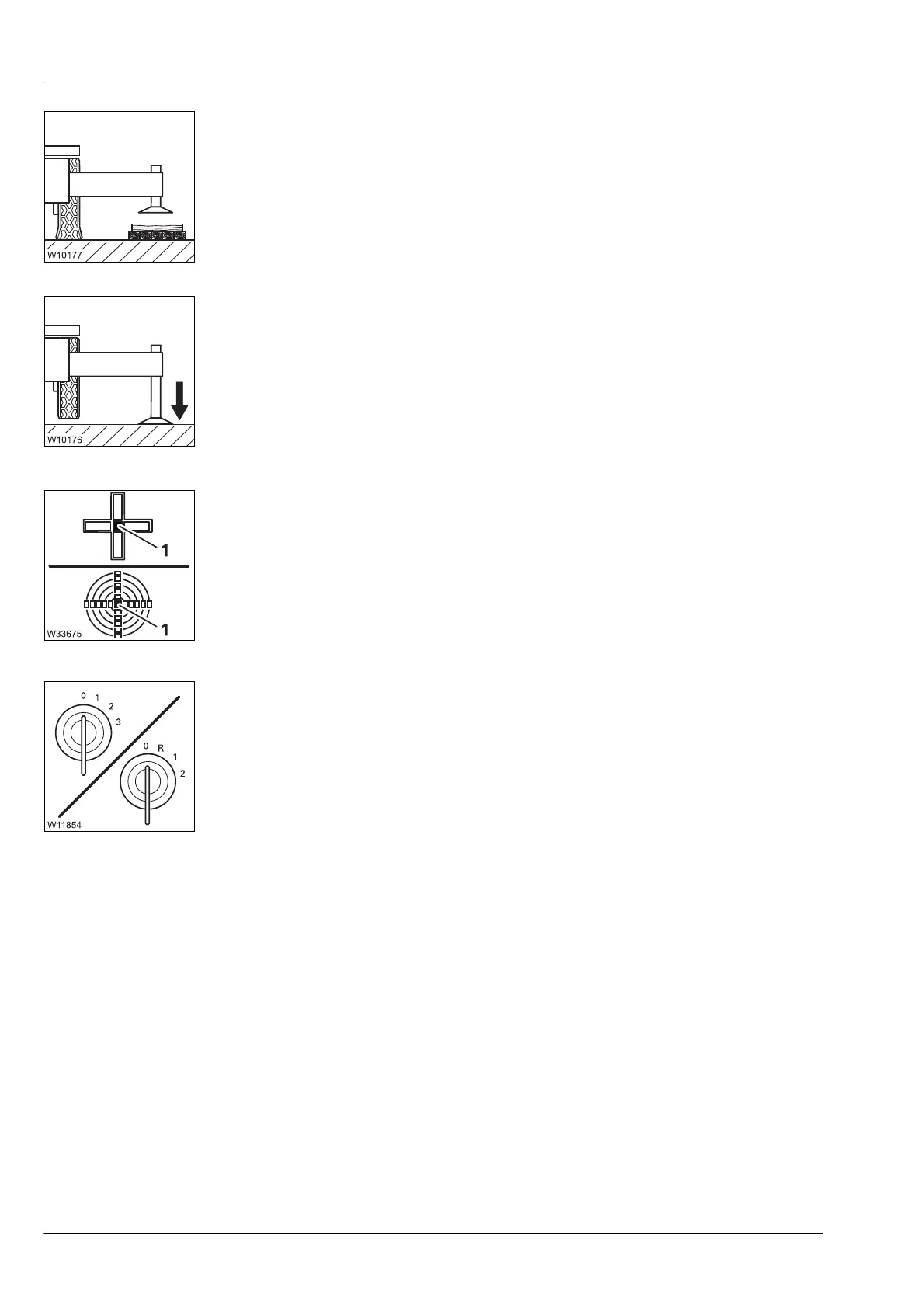

5. Enlarge the ground bearing area if necessary;
à Determining the required load-bearing area, p. 12 - 9,
à Enlarging the load-bearing area, p. 12 - 40.
6. Extend the supporting cylinders until none of the wheels is touching the
ground;
à p. 12 - 41.
7. Level the truck crane horizontally with the outriggers.
The lamp (1) lights up in the measuring range 1°;
à p. 12 - 46.
8. Switch off the engine;
– After operating it from the control units;
à p. 4 - 23,
– After operating it from the crane cab;
à p. 12 - 24.
