Rigging work
12.6 Outriggers
12 - 42 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
From the control
units
If the hand-held control is connected, the Outrigger operating units are
inactive.
Start the engine
• Disconnect the hand-held control, if necessary, and start the engine
either:
– From the driver's cab;
à p. 4 - 15,
or
– From the control units; p. 12 - 26.
Moving the supporting cylinders

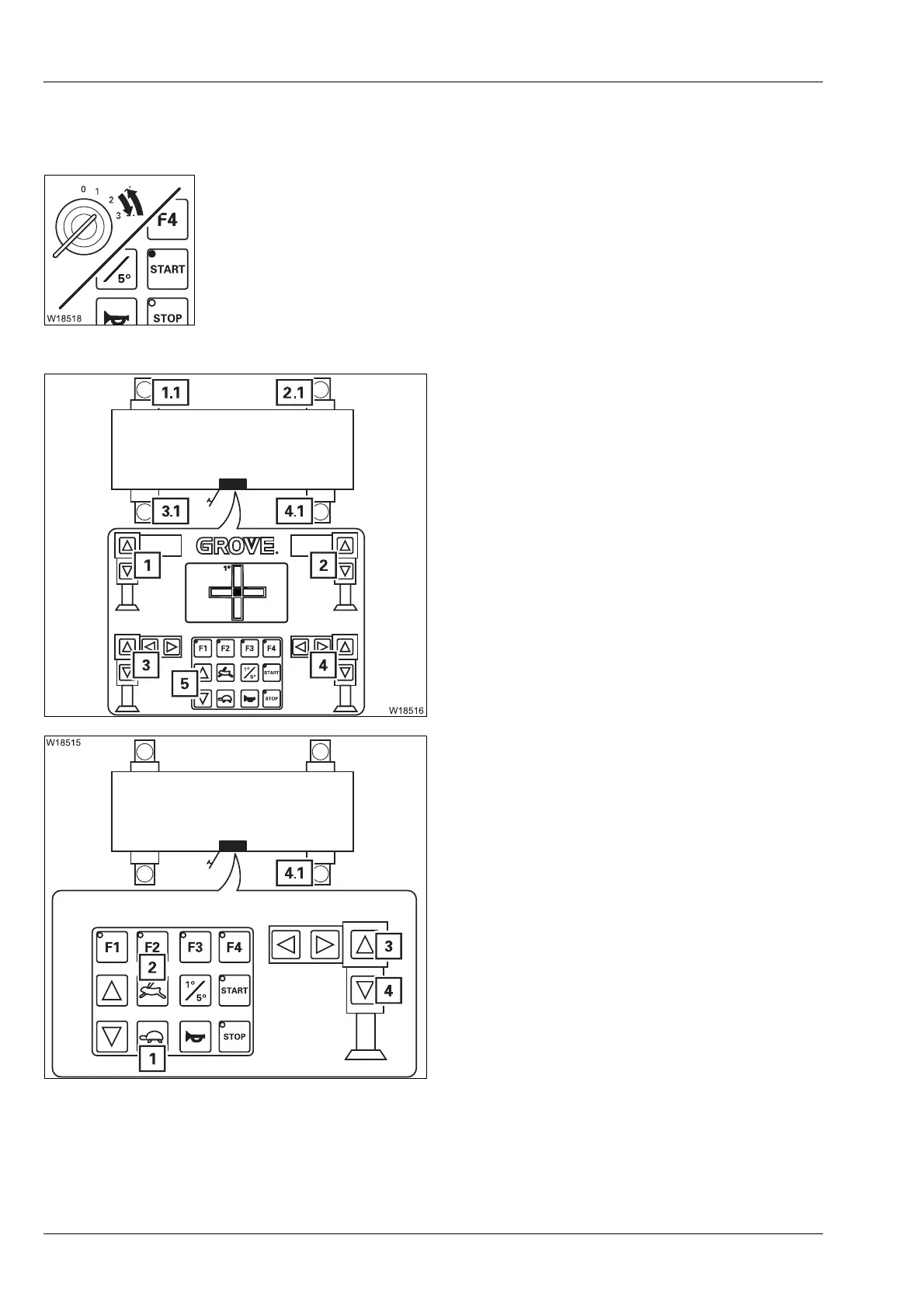

Assignment of buttons:
• Observe the safety instructions for operat-
ing the supporting cylinders;
à p. 12 - 41.
The operation is the same for all supporting
cylinders.
• Press the button
• Also press the button for the desired
supporting cylinder, e.g. for 4.1.
You can also operate several supporting
cylinders at the same time.
The supporting cylinders move until you let go of the respective button or
until the respective end position has been reached.
1 Supporting cylinder 1.1
2 Supporting cylinder 2.1
3 Supporting cylinder 3.1
4 Supporting cylinder 4.1
5 All supporting cylinders (1.1) to (4.1)
1 For normal speed
2 For high-speed mode.
3 For retracting
4 For extending
