Rigging work
12.8 Rigging work on the main boom
12 - 96 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

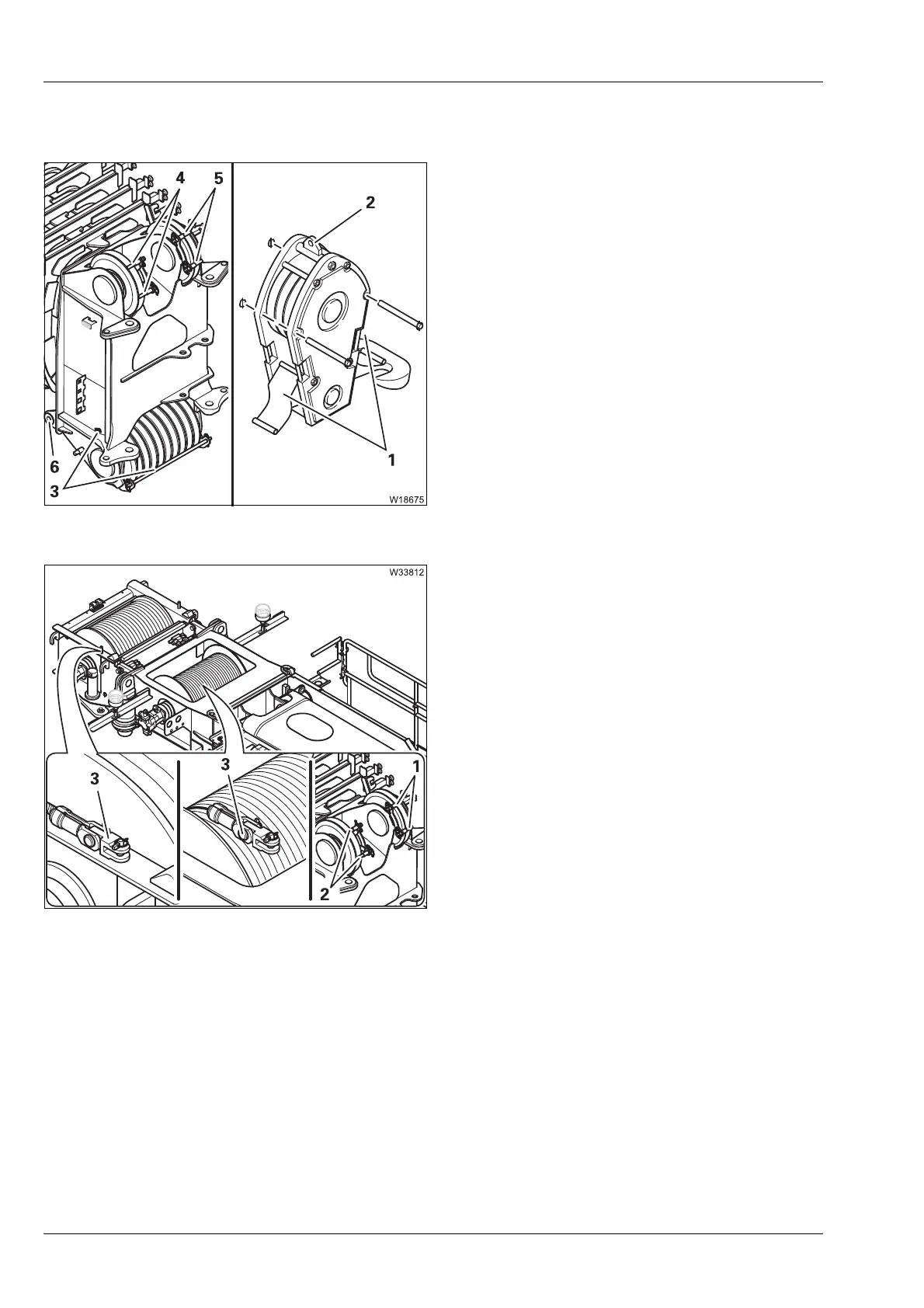

Unreeving hoist
rope
• Remove the retaining pins and pull out the
rods (3).
• Fold down the plates (1); à p. 12 - 93.
• Remove the rope end fitting from the fixed
point (2) or (6).
• Unreeve the hoist rope.
Depending on the driving mode, you can:
– Fasten the hoist rope to the bumper;
à p. 12 - 89
or
– Pull out the rods (1) and (2) and roll the hoist
rope onto the drum.
• Insert the rods (1) and (2) and secure them.
• Secure the hoist rope (3).
