4. Installation and Assembly
4.1 Precautionary Measures
No sharp-edged or heavy objects may get into contact with the sensor cable sheath.
Protect the cable against pressure loads in pressurised rooms.
Avoid kinks in any case.
Check the connections for tight fit.
i
A damaged cable cannot be repaired.
4.2 Sensor
The sensors may be mounted free-standing or flush.
When assembling, make sure that the polished sensor surface is not scratched.
4.2.1 Radial Point Clamping with Grub Screw, Cylindric Sensors
This simple type of fixture is only recommended for a force and vibration-free installation position. The grub
screw must be made of plastic so that it cannot damage or deform the sensor housing.
Grub screw

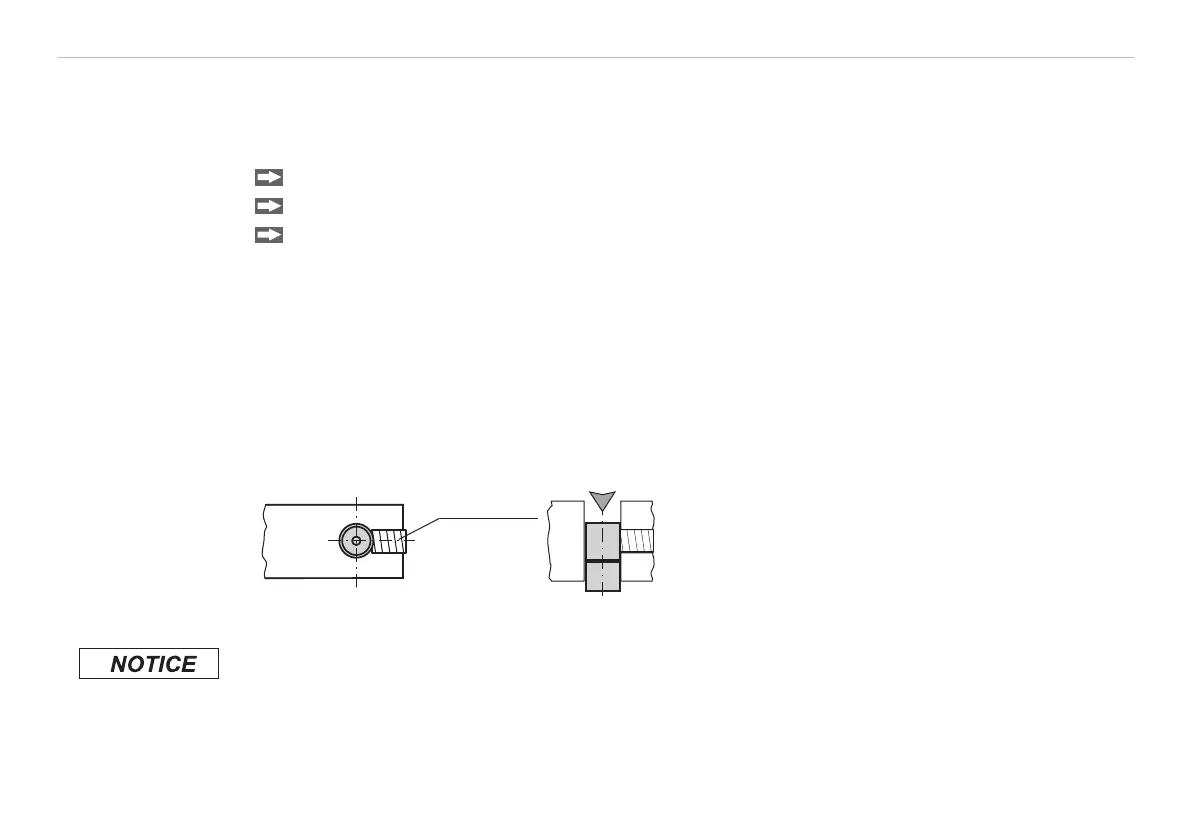

Fig. 5 Radial point clamping with grub screw
Do not use metal grub screws!
> Danger of damaging the sensor
