Page 98
Appendix| Measurements on Balls and Shafts
capaNCDT 6200
i
Figures give an influence example shown on the sensors CS05 in the case of different sensor distances
to the target as well as target widths. As this results from internal simulations and calculations, please
request for detailed information.
A 5 Measurements on Balls and Shafts
0.0%
2.0%
4.0%
6.0%
8.0%
10.0%
12.0%
14.0%
16.0%
Relative deviation [% of MR]
Target distance (inner width), [% of MR]
Ball-Ø30 mm CS1
Ball-Ø40 mm CS02
Ball-Ø40 mm CS1
10 % 20 % 30 % 40 % 50 % 60 % 70 % 80 % 90 % 100 %
Ball-Ø30 mm CS02
Cylinder Ø30 mm CS1
Cylinder Ø40 mm CS02
Cylinder Ø40 mm CS1
Target distance (inner width), [% of MR]
10 % 20 % 30 % 40 % 50 % 60 % 70 % 80 % 90 % 100 %
0.0%
1.0%
2.0%
3.0%
4.0%
5.0%
6.0%
7.0%
8,0%
Relative deviation [% of MR]
Cylinder Ø30 mm CS02

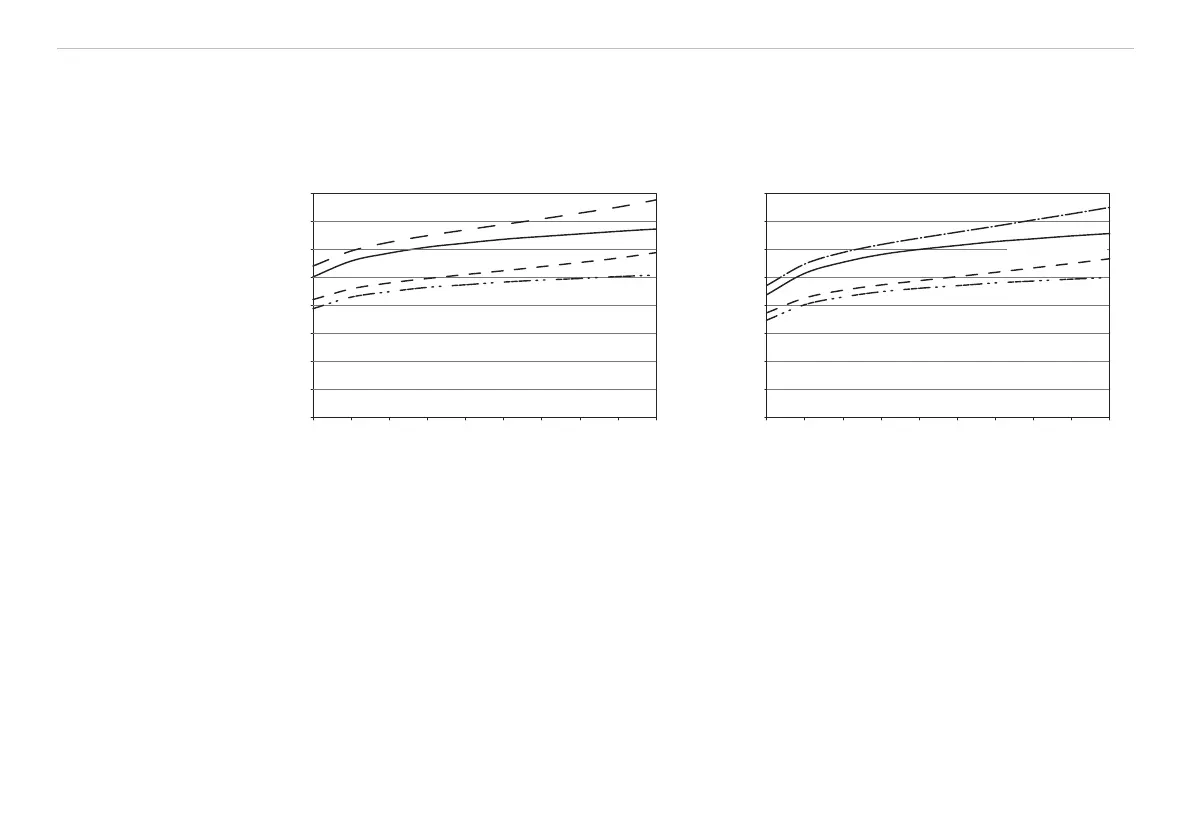

Fig. 37 Measuring value deviation in the case of
measurement on ball-shaped targets
Fig. 38 Measuring value deviation in the case of
measurement on cylindrical targets
i
Figures give an influence example shown on the sensors CS02 and CS1 in the case of different sensor
distances to the target as well as target diameters. As this results from internal simulations and calcula-
tions, please request for detailed information.
