MICRO-EPSILON CS02 User Manual

Page 31
Installation and Assembly
capaNCDT 6200
200 (7.87)
9.9 (0.39)
15
(0.59)
20.2 (0.80)
1 (0.04)

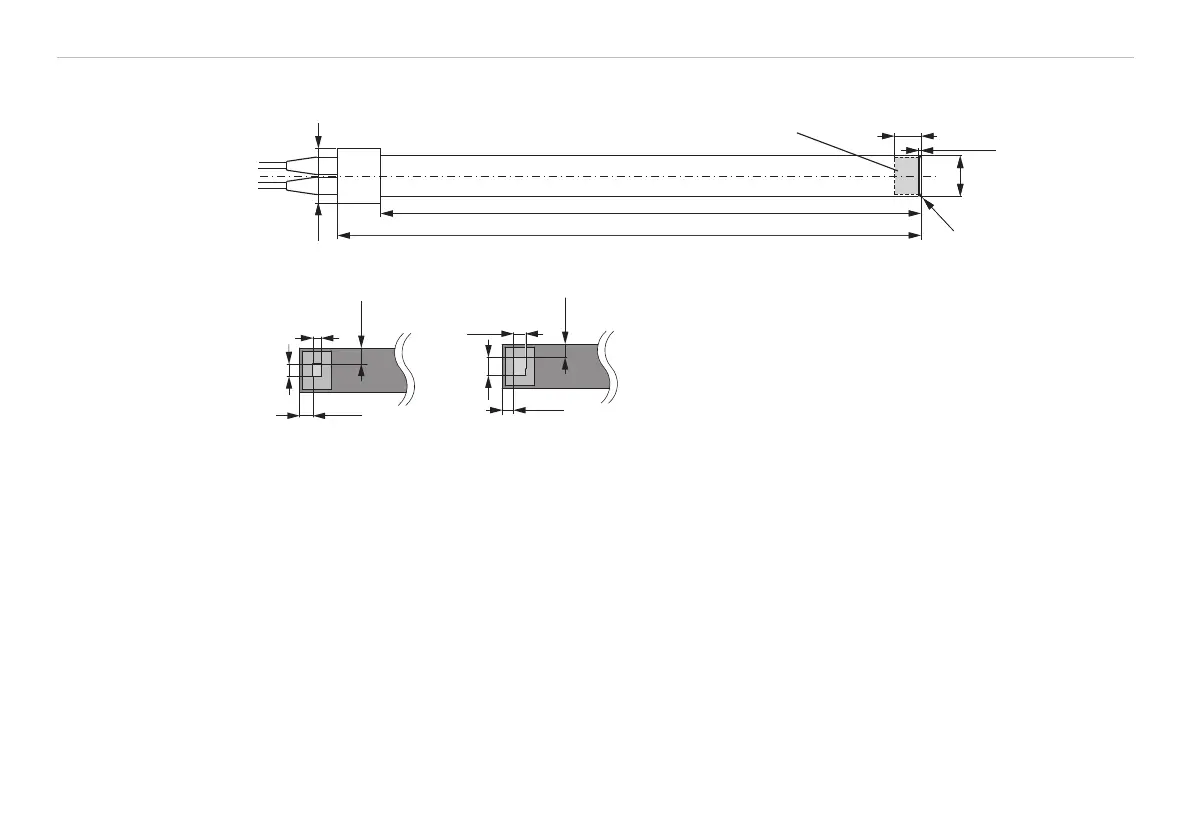

Sensor structures
Thickness 0.9
-0.05
(0.04
-0.002
)
216 (8.5)
R2
CSG0.50-CAm2.0 and CSG1.00-CAm2.0
Sensor structures
2.9
(0.11)
4.2 (0.17)
4.5
(0.18)
5.4
(0.21)
4.2 (0.17)
6.2 (0.24)
3.85
(0.15)
4.4
(0.17)
CSG0,50-CAm2,0 CSG1,00-CAm2,0
Dimensions in mm (inches), not to scale
4.3 Sensor Cable
The sensor is connected to the controller by the sensor cable. The connection is made by simple plugging.
The connector locks automatically. The tight fit can be checked by pulling the connector housing (cable
bushing). The lock can be released and the connector can be opened by pulling the knurled housing sleeve
of the cable bushing.
