Page 47
Operation
capaNCDT 6200
5.4 Triggering
The measuring value output on capaNCDT 6200 is controllable by an external electrical trigger signal or com-
mand. Here, only the digital output is affected.
Triggering release by:
- Trigger input (pin 3 and pin 4 on 4-pole power supply
connector, see 4.7.2 or
- Software command $GMD, see 6.4.3
- U
IN
, HIGH ≥ 2,0 V
- U
IN
, LOW ≤ 0,8 V
Controller
I = 5 ... 45 mA
100 Ohm
Trigger in
3
4
GND trigger
U trigger
(TTL level,
potential-free)
U =
appr.
1 V
F

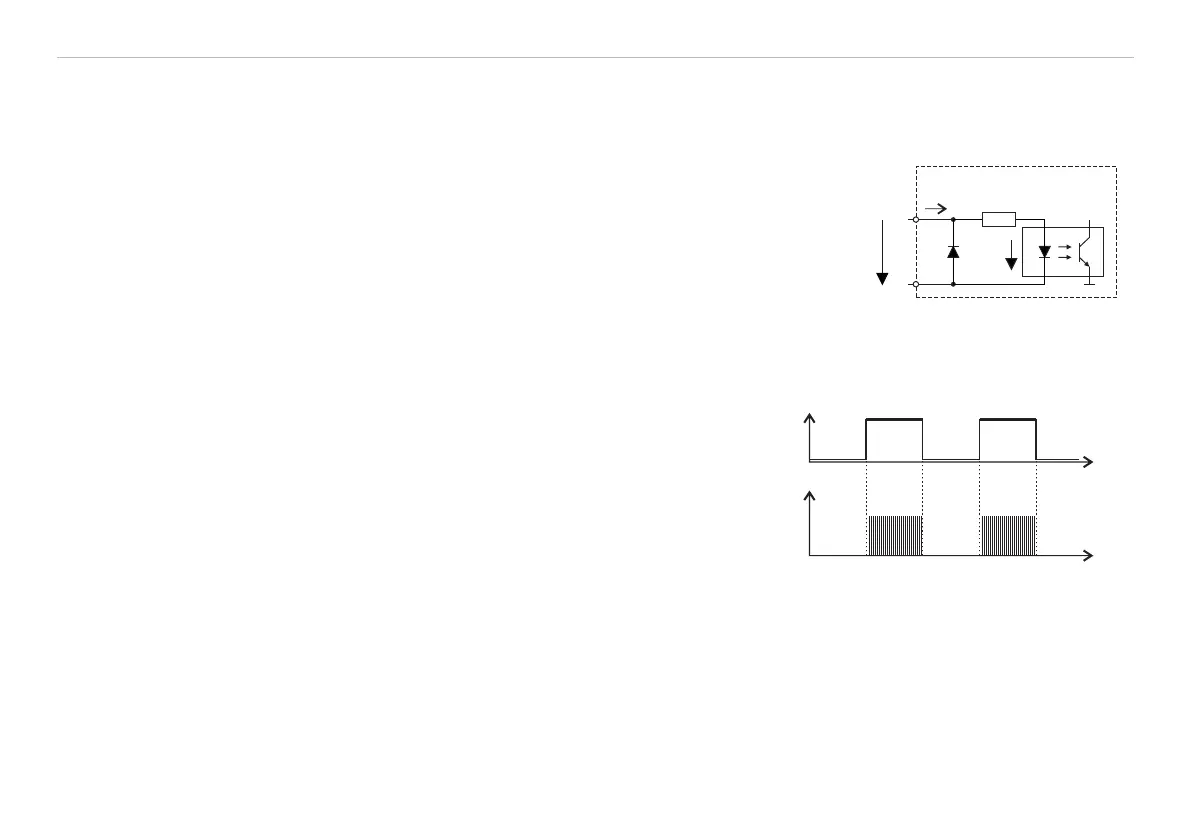

Fig. 18 Trigger Input
The trigger type is determined by
the command $TRGn, see 6.4.2 or
- the web interface, see 6.7.2
Level triggering (high level). Continuous measurement output
with adjusted data rate, as long as the selected level is active.
After that the controller stops the output of the measuring
values.
U
I
t
D
0
t
Fig. 19 Active high level trigger (U
I
), relevant digital signal (D
0
)
