Page 40

Installation and Assembly

capaNCDT 6200

4.7 Electrical Connections

4.7.1 Connectivity Options

The power supply and the signal output are located at the front side of the controller.

SPS

SCACx/4

Ethernet

EtherCAT

(optional)

CCxxx

LAN cable

RJ-45-connectors

Controller

Sensor

Run

Ether

CAT

PS 2020

PC6200-3/4

Ammeter/Voltmeter

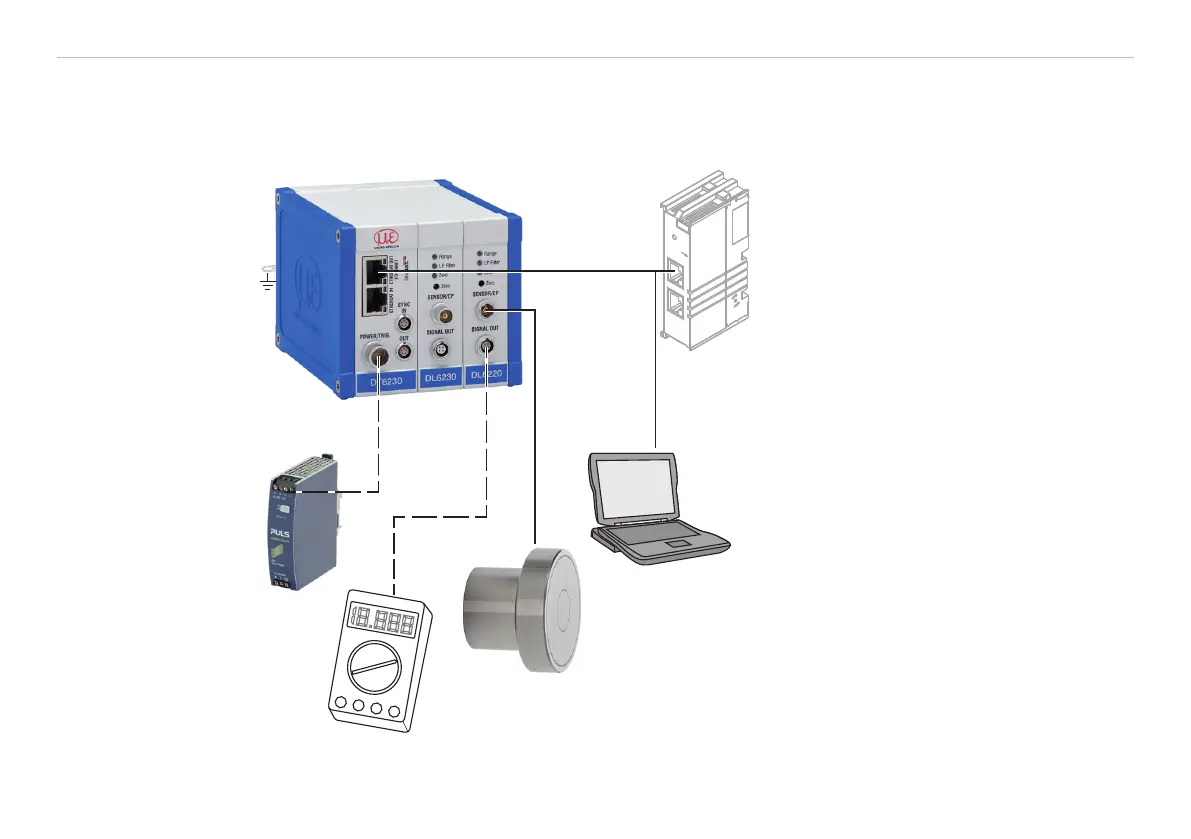

Fig. 14 Measuring system assembly
