Page 39
Installation and Assembly
capaNCDT 6200
4.6 Ground Connection, Earthing
Make sure you have a sufficient grounding of the measuring object, for example connect it with the sen-
sor or the supply ground.
Non-contact target earthing
In several applications, the target earthing is difficult or even impossible.
Different to other systems, with capaNCDT systems is no target earthing necessary

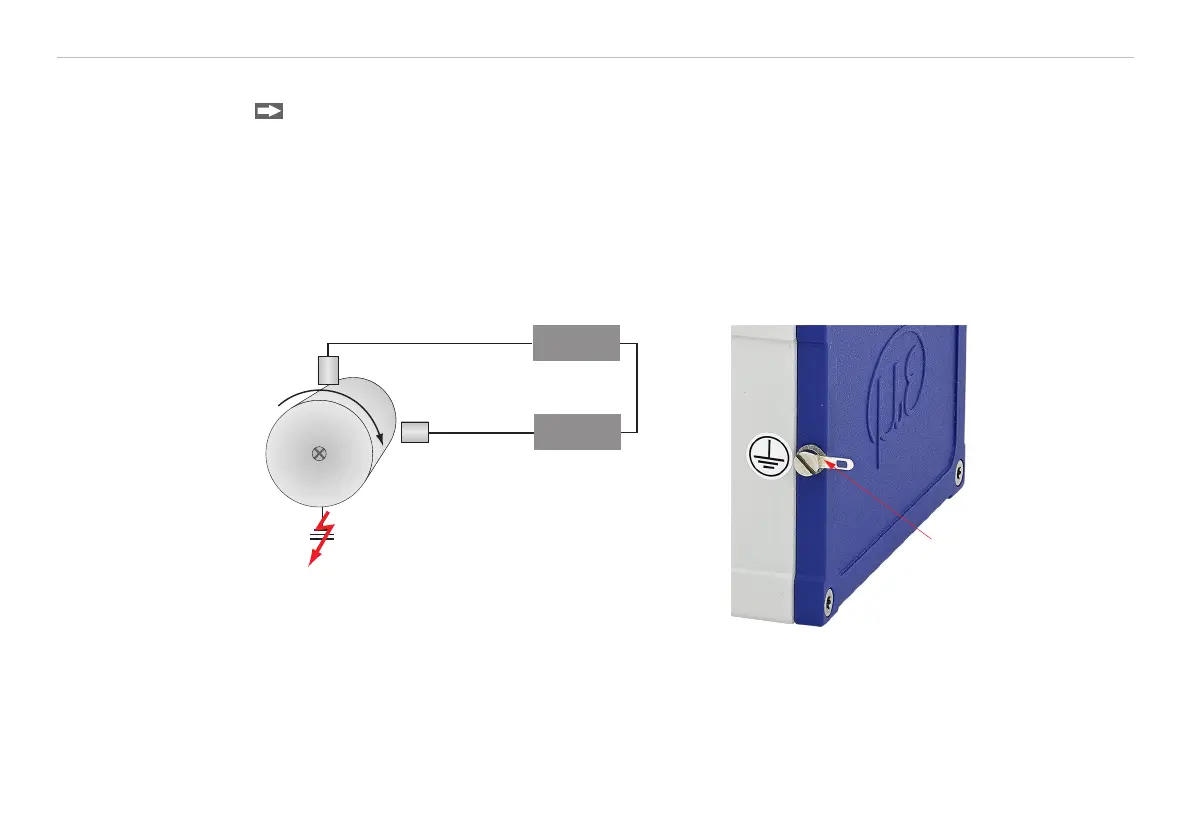

The drawing below shows two synchronized capaNCDT sensors, measuring against a mill, see Fig. 12. Due
to the unique synchronizing technique of MICRO-EPSILON a special target earthing is not needed in most
cases.
sync.
Controller
Sensor
Sensor
Controller
Ground connection
Fig. 12 Position and unbalance measuring with two
measuring systems
Fig. 13 Ground connection on the housing cover
No target grounding required with two synchronized capaNCDT sensors.
If necessary use the ground connection on the housing cover. The ground connection is included with the
conversion kit supplied, see A 1.1.
