Page 22
Installation and Assembly
capaNCDT 6200
4.2.2 Circumferential Clamping, Cylindric Sensors
This sensor mounting option offers maximum reliability because the sensor is clamped around its cylindrical
housing. It is absolutely necessary in difficult installation environments, for example on machines, production
plants et cetera.

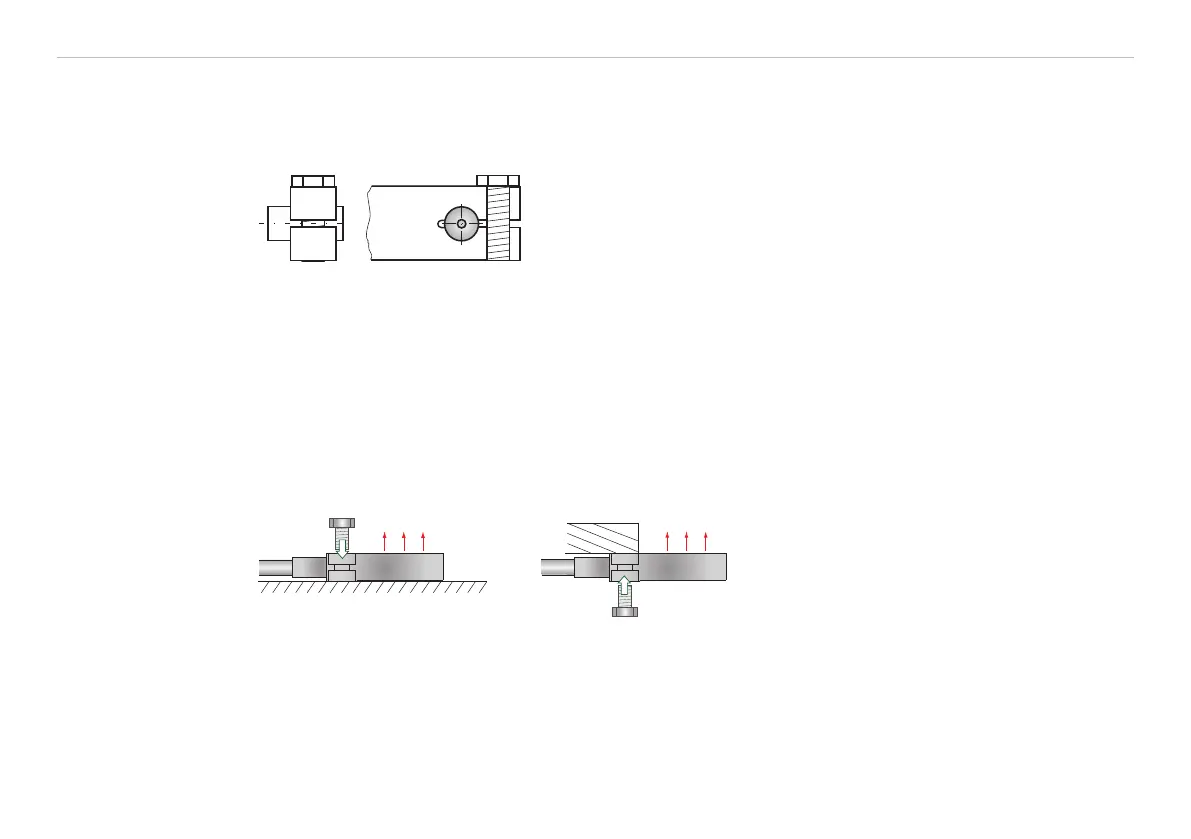

Mounting with
clamping ring
Fig. 6 Circumferential clamping
i
Tension at the cable is inadmissible!
4.2.3 Flat Sensors
Flat sensors are mounted by means of a tap hole for M2 (in case of sensors 0.2 and 0.5 mm) or by a through
hole for M2 screws. The sensors can be bolted on top or below.
Screwing from above Screwing from bottom
