MICRO-EPSILON CS02 User Manual

Page 111
Appendix| EtherCAT Documentation
capaNCDT 6200
A 6.4 EtherCAT Configuration with the Beckhoff TwinCAT©-Manager
For example the Beckhoff TwinCAT Manager can be used as EtherCAT Master.
Copy the device description file (EtherCAT®-Slave Information) Micro-Epsilon.xml in the directory
\\TwinCAT\IO\EtherCAT (for TwinCATV2.xx) or \\TwinCAT\3.1\Config\IO\EtherCAT (for TwinCAT V3.xx),
before the measuring device can be configured via EtherCAT®.
The file is available online at:
https://www.micro-epsilon.com/download/software/Micro-Epsilon_EtherCAT_ESI-File.zip
EtherCAT®-Slave information files are XML files, which specify the characteristics of the Slave device for the
EtherCAT® Master and contain information to the supported communication objects.
Restart the TwinCAT Manager after copying.

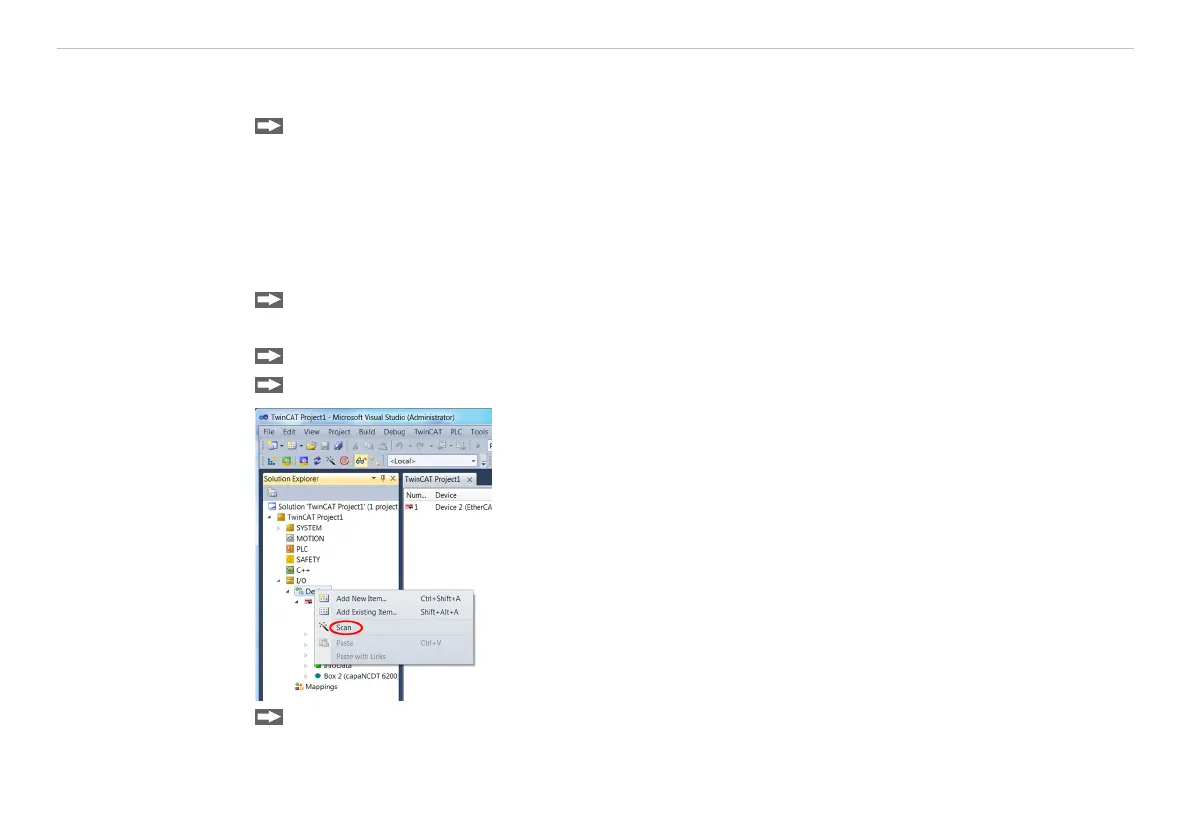

Searching for a device:
Select the tab I/O Devices, then Scan.
Confirm with Yes.
Select a network card, where EtherCAT®–Slaves should be searching for.
