Appendix| EtherCAT Documentation

capaNCDT 6200

Confirm with OK.

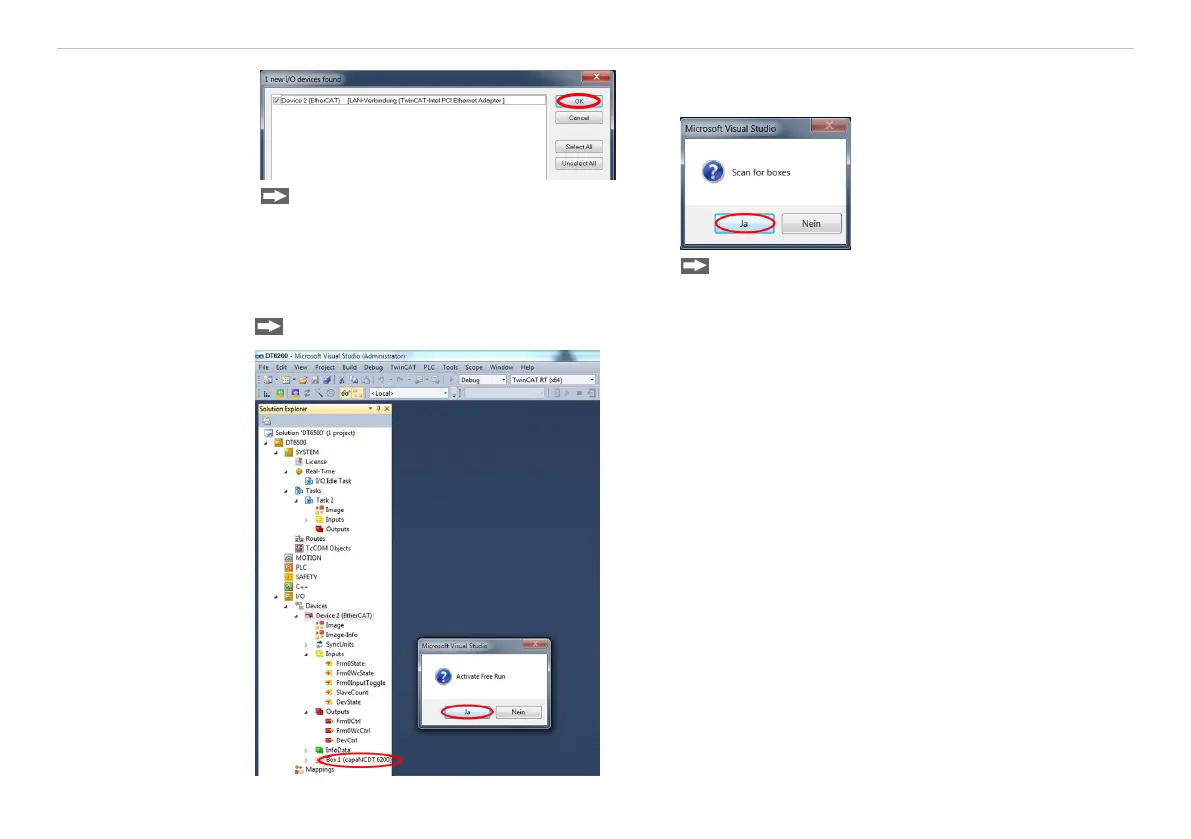

The window Scan for boxes (EtherCAT®-Slaves)

appears.

Confirm with Ja.

The capaNCDT 6200 is now listed in the Solution explorer.

Now confirm the window Activate Free Run with Ja.
