Operation
capaNCDT 6200
5.2.2 Poti
The zero-poti on the demodulator modules is used for zero adjustment of the analog outputs.
End positions on the left or right stop are marked by a slight click.
The electrical zero point can be set across the whole measuring range with the “zero” potentiometer. The
start of the measuring range (= mechanical zero point) is on the front face of the sensor.
A tilted sensor or measuring object results in a reduced measuring range and zero point shifting according to
the tilting.
The potentiometer is ex factory set at the right stop (maximum level).
Signal
10 V
0 V
-10 V
Zero oset
Zero
Signal
20 mA
4 mA
-12 mA
Zero oset
Zero
100 % 100 %
Standard characteristic Standard characteristic
Displacement Displacement
SIGNAL OUT
SENSOR/CP
Range
LP Filter
Zero
Zero
DL62xx

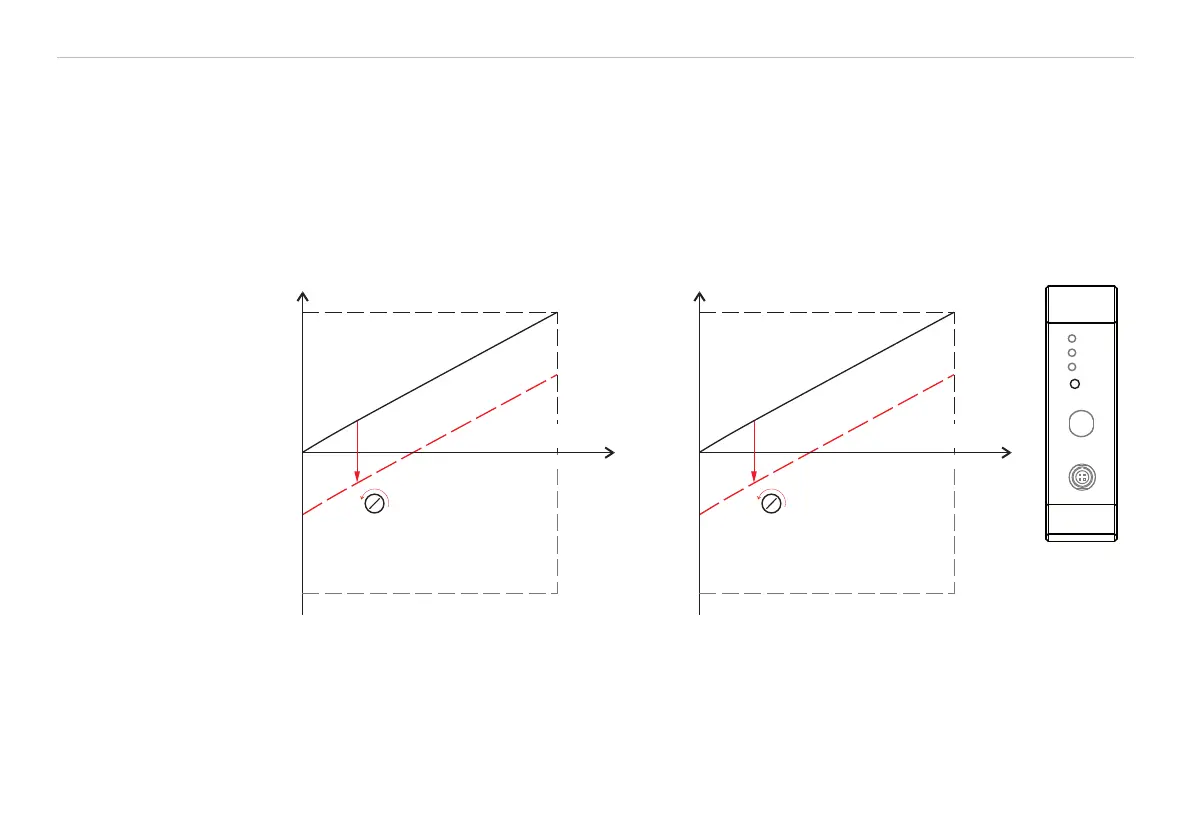

Fig. 16 Zero point shifting with zero-poti
