Appendix| Measurement on Narrow Targets
capaNCDT 6200
A 4 Measurement on Narrow Targets
3 mm
4 mm
6 mm
8 mm
0 %
5 %
10 %
15 %
20 %
25 %
30 %
35 %
40 %
45 %
50 %
32.521.510.50
Target dispacement perpendicular to the sensor axis [mm]
Signa change [% of MR]
0 %
5 %
10 %
15 %
20 %
25 %
30 %
35 %
40 %
45 %
50 %
32.521.510.50
Target dispacement perpendicular to the sensor axis [mm]
Signa change [% of MR]
3 mm
4 mm
6 mm
8 mm

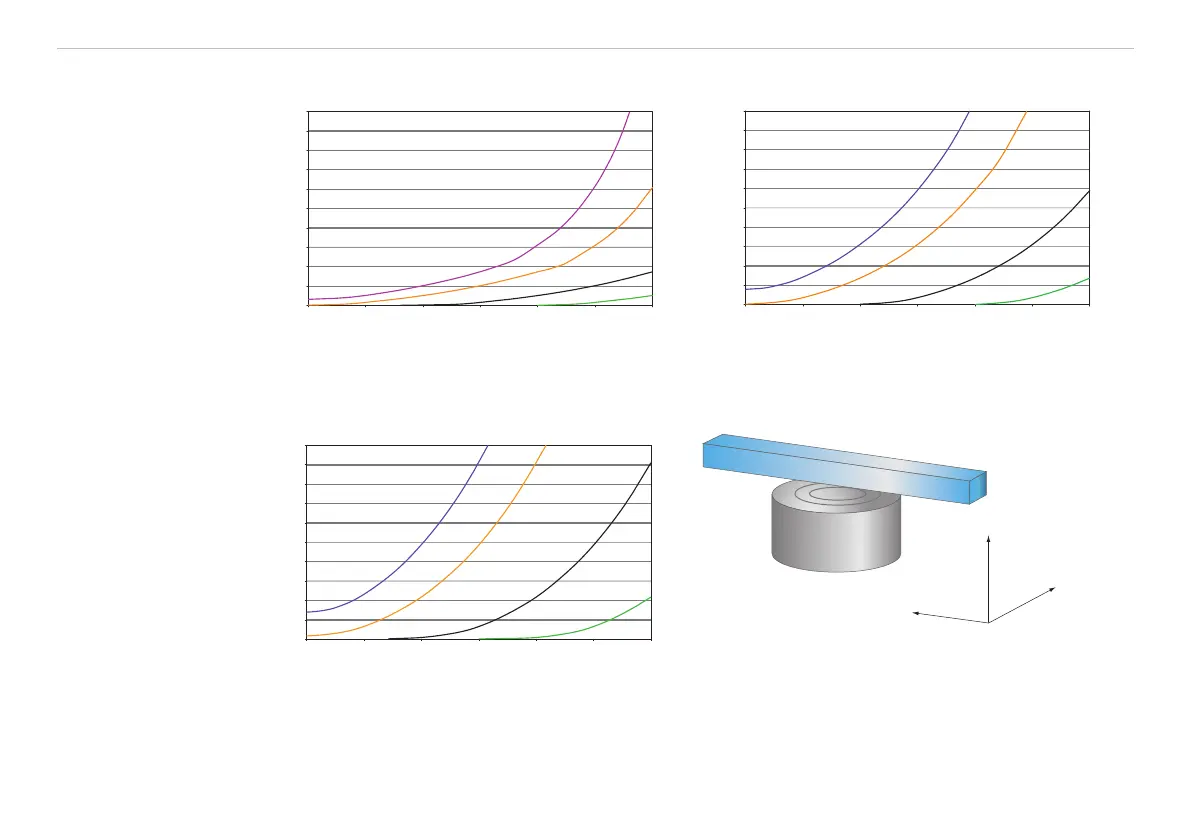

Fig. 33 Example of measuring range deviation in the
case of a sensor distance of 10 % of the measuring
range
Fig. 34 Example of measuring range deviation in the
case of a sensor distance of 50 % of the measuring
range
0 %
5 %
10 %
15 %
20 %
25 %
30 %
35 %
40 %
45 %
50 %
32.521.510.50
3 mm
4 mm
6 mm
8 mm
Signa change [% of MR]
Target dispacement perpendicular to the sensor axis [mm]
z
y
x
y >8 mm
Movement
in x-direction
z constant
Fig. 35 Example of measuring range deviation in the
case of a sensor distance of 100 % of the measur-
ing range
Fig. 36 Signal change in the case of displacement of
thin targets in the opposite direction to the measure-
ment direction
