Page 79
Ethernet Interface
capaNCDT 6200

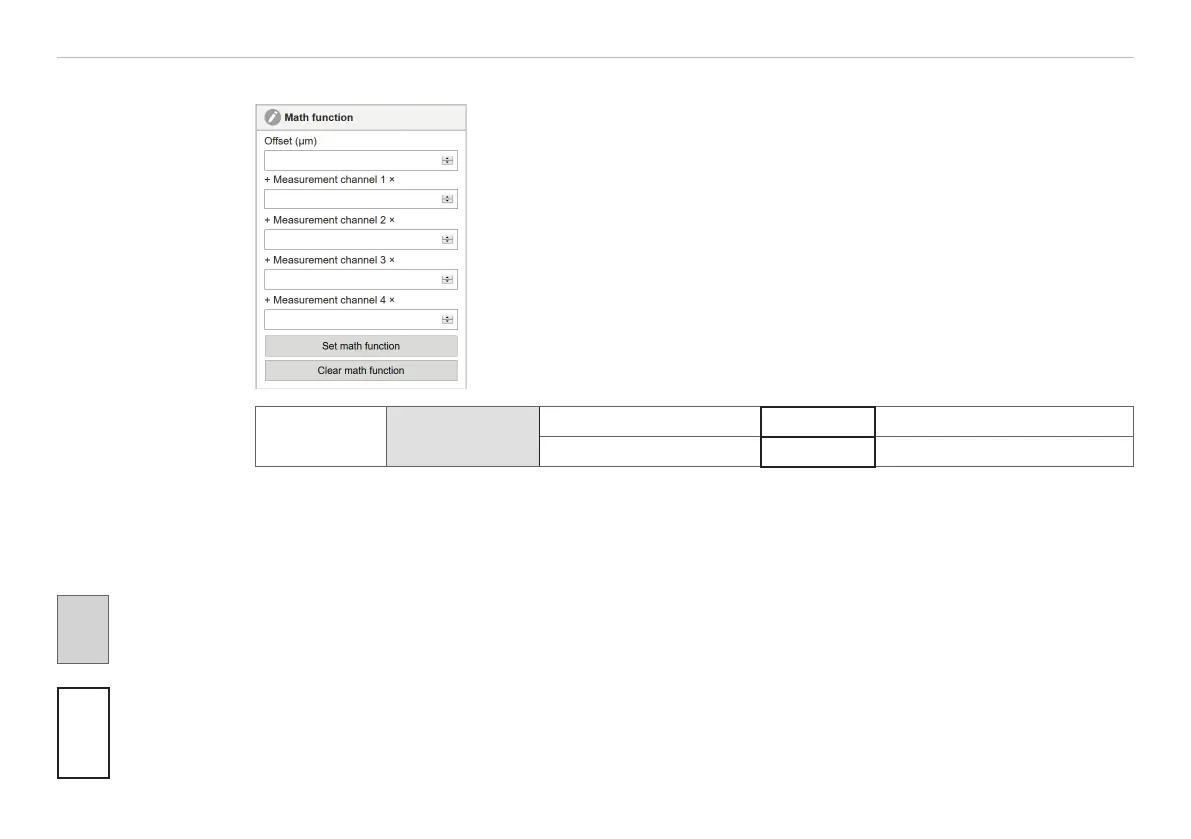

6.6.3 Math Function
This function enables the scaling of a measuring channel and the mathematical
combination of individual channels.
Formula: Data channel = Offset + factor measurement channel 1 + factor
measurement channel 2 + factor measurement channel 3 + factor measure-
ment channel 4.
Data channel = digital values
Measuring channel = analog value of a demodulator module
Data channel 1 / 2 / 3 / 4
Offset Value Value range ±8-point MR max.
Factor measuring channel Value Value range -9,9 ... +9,9
Grey shaded
fields require a
selection.
Value
Dark-bordered
fields require
you to specifie
a value.
