Ethernet Interface
capaNCDT 6200
Example: $SMF2:+1FFFFF,+1.0,+0.0,+0.0,-0.3<CR>
On channel 2 the sequent math function is output:
100 % Offset + 1 * channel 1 - 0.3 * channel 4
Target
Sensor 1
MR1 mm
2 mm
Sensor 2
MR 1 mm

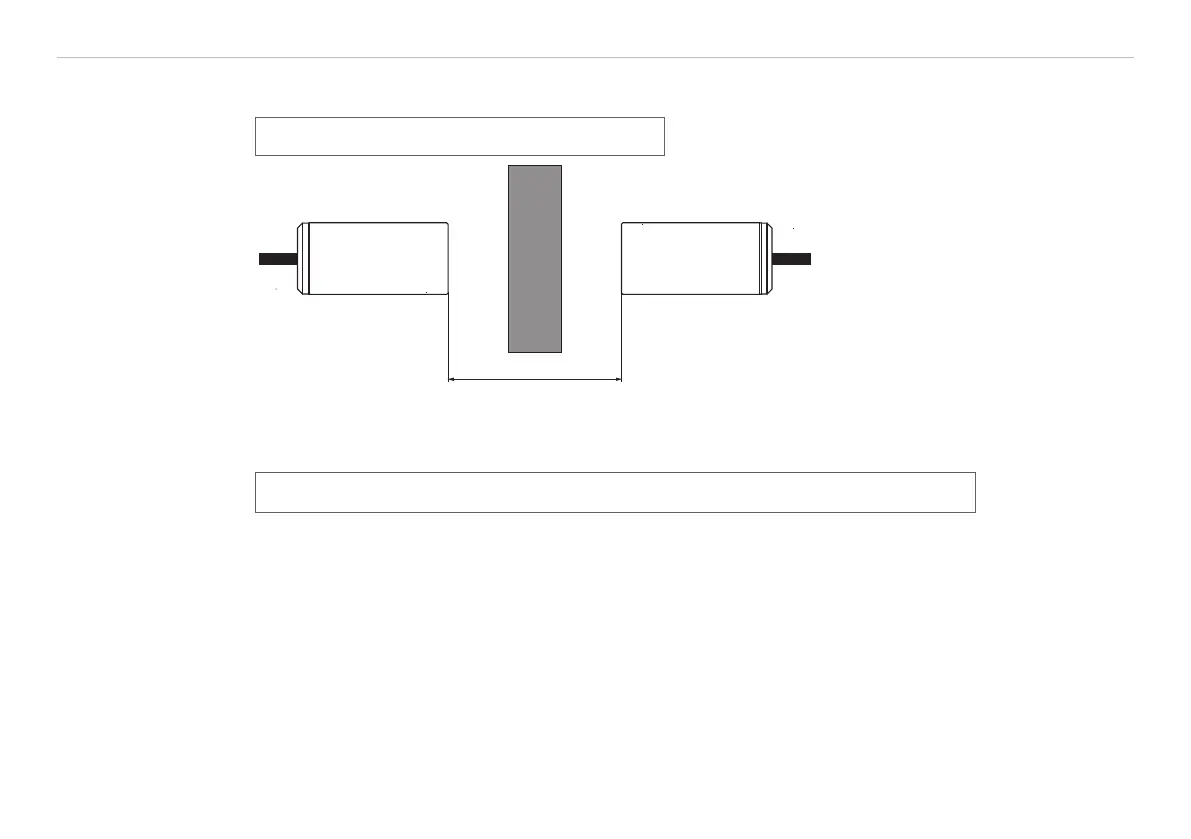

Fig. 25 Example for thickness measurement of a target with two capacitive sensors
Following math function is required for the above adjustment for thickness measurement of the target.
Target thickness = +200 % offset (equates to 2 mm) – 1 * channel 1 – 1 * channel 2
Required command:
$SMF3:+3FFFFF,-1.0,-1.0,+0.0,+0.0<CR>
i
3 measured values can be allocated together at most, the different factors have to be +0.0 each.
If a math function is set on a channel, the channel status changes onto 2.
