MICROPLEX Operator’s Manual LOGIJET T4 /T6 /RFID Edition 1.3
Spring
box
Setting screw
for the printhead
pressure
Printhead
pressure lever

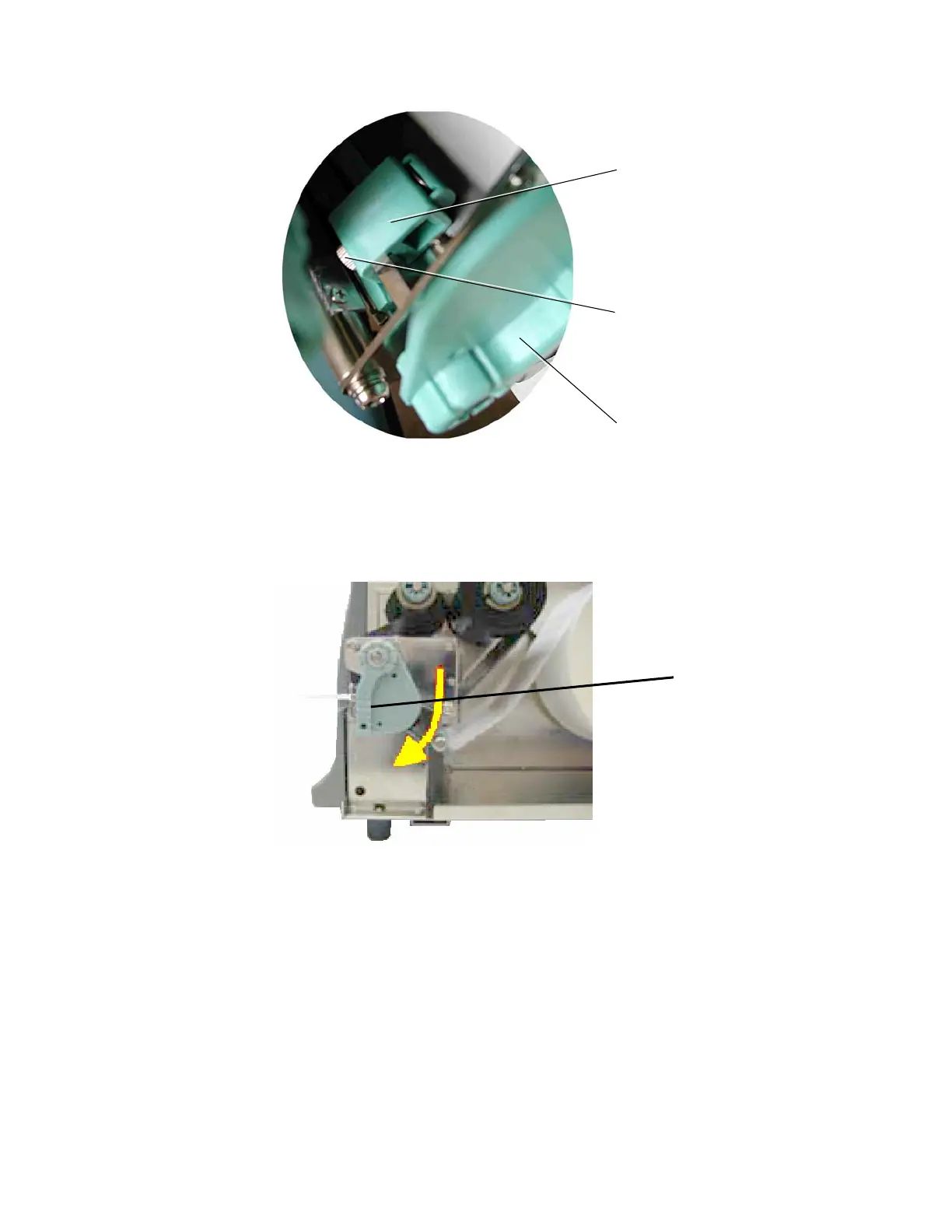

Fig. 5.4.d Detailed picture of a spring box
4. Swivel the printhead pressure lever clockwise back to its
original position making sure it clicks into place.
Fig. 5.4.e Locking the pressure lever
The following picture helps you to locate the setting screws for
the printhead pressure:
Printhead
pressure lever
